13. Projector Control
Recurrence : the time between two starts of the same task. The value can be changed between 1 and 99.
1 Starts every day
2 Starts every 2 days
3 Starts every 3 days
...
7
Starts every week
Routine setup, innite loop
To repeat the task with a given sequence again and again, check the check box in front of Innite.
Routine setup, occurrences
For a limited number of loops, set up the occurrences:
1. Select Occurrence and press ENTER.
2. Use the or key to change the occurrence.

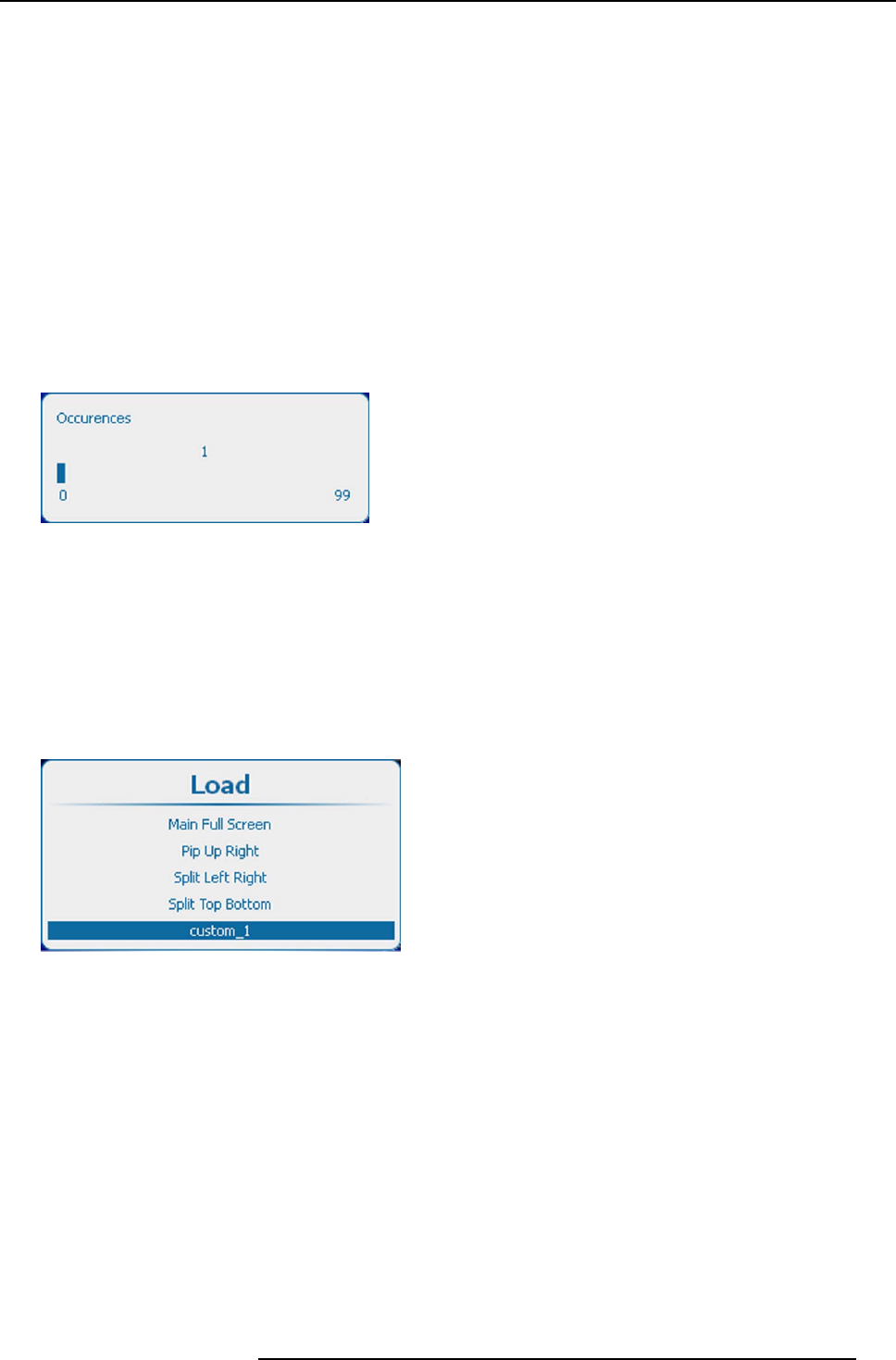

Image 13-114
Occurrence setup
Occurrence : the number of loops that will take place as set in the recurrence.
E.g; an occurrence of 2 with a recurrence of 3 means that the schedule will be executed at the start date, start date + 3 and due
to the occurrence (=2) also at start date + 6.
Layout selection
1. Select Set layout and press ENTER.
The Load layout menu opens with a list of the available layouts.
2. Use the or key to select the desired layout and press ENTER to link the layout to the task.
Image 13-115
Link layout
Lamp status
1. Select the desired lamp status and press ENTER to select.
The following lamp statuses are possible:
- Turn on : lamp will be switched on when the task is started.
- Turn off : lamp will be switched off when the task is started.
- No change : no changes to the lamp status when the task is started. The lamp remains in its current status.
Task name
1. Select Taskname and press ENTER to edit the current proposed name.
2. Use the or key to select the desired character to change.
Use the or key to change that character.
Note: Extra c haracters can be added at the end of the current displayed characters.
Creating the task
1. Select Apply and press ENTER to create the task.
