13. Projector Control

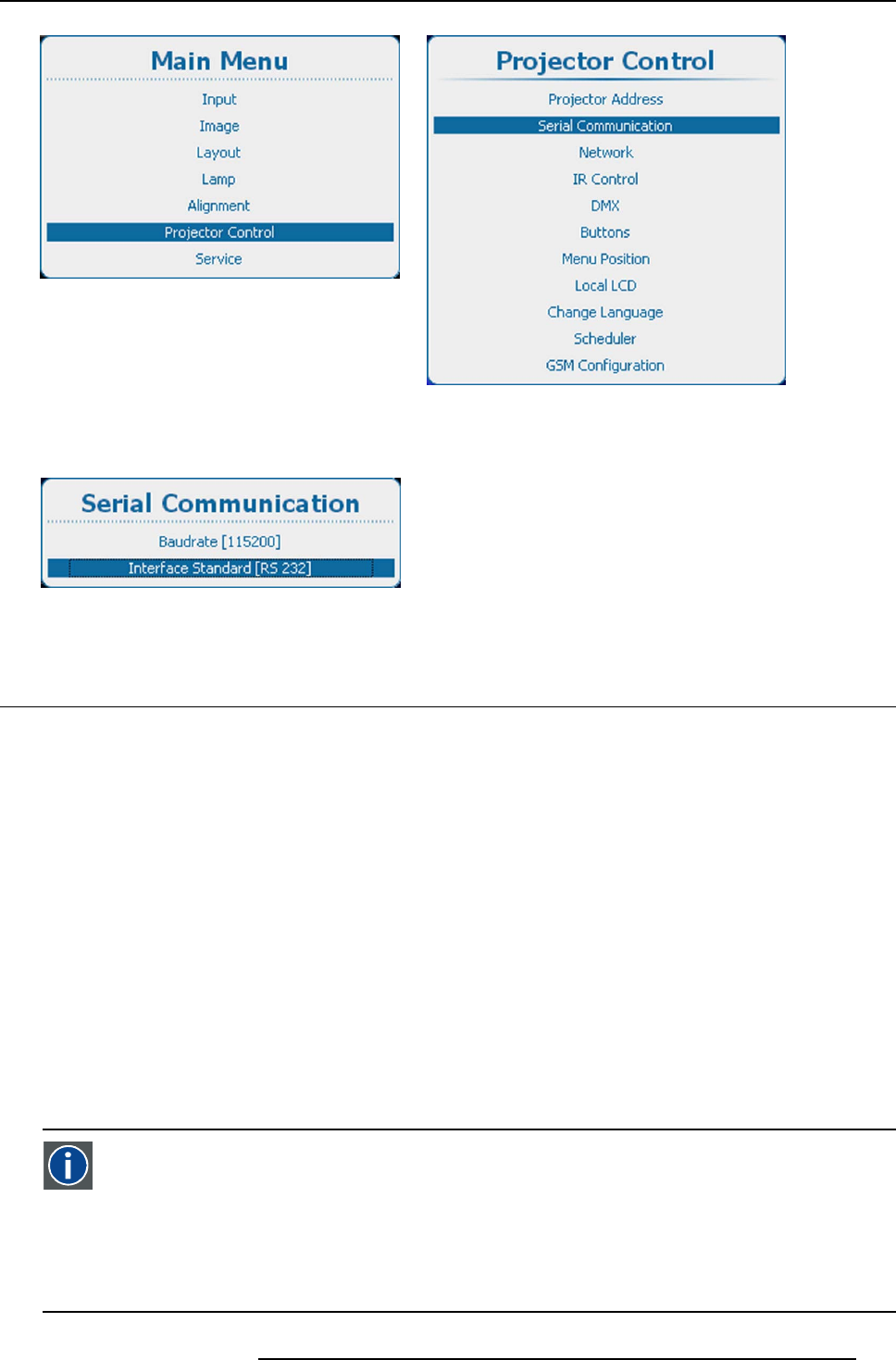

Image 13-12
Main menu, projector control
Image 13-13
Projector control, serial communication
2. Use the ▲ or ▼ key to select Interface Standard.
Press ENTER to toggle between [RS232] or [RS422].
Image 13-14
Interface standard
13.5 Network
About a network connection
A network connection can be made via a wired connection or via the optional wireless unit.
Overview
• Introduction to a Network connection
• Wired DHCP set up
• Wired IP address set up
• Wired subnet mask set up
• Wired default gateway set up
• Wireless network activation
• Wireless access points selection and setup
• Wireless DHCP set up
• Wireless fixed IP address set up
• Wireless subnet mask set up
• Wireless default gateway set up
13.5.1 Introduction to a Network connection
DHCP
Dynamic host configuration protocol. DHCP is a communications protocol that lets network administrators manage
centrally and automate the assignment of IP addresses in an organization’s network. Using the Internet Protocol, each
machine that can connect to the Internet needs a unique IP address. When an organization sets up its computer users
with a connection to the Internet, an IP address must be assigned to each machine. Without DHCP, the IP address
must be entered manually at each computer and, if computers move to another location in another part of the network,
a new IP address must be entered. DHCP lets a network administrator supervise and distribute IP addresses from
a central point and automatically sends a new IP address when a computer is plugged into a different place in the
network.
R5905032 HDX SERIES 02/03/2015 223
