8. Input
8.3.4 SDI input
About SDI input
The Dual SD/HD/3G-SDI Input can accept standard-denition (SD), high-denition (HD) and 3 Gigabit-denition serial-digital-inter-
face (SDI) signals .
How to select
Select SDI (SD / HD / 3G / Dual) and press ENTER to open the selections

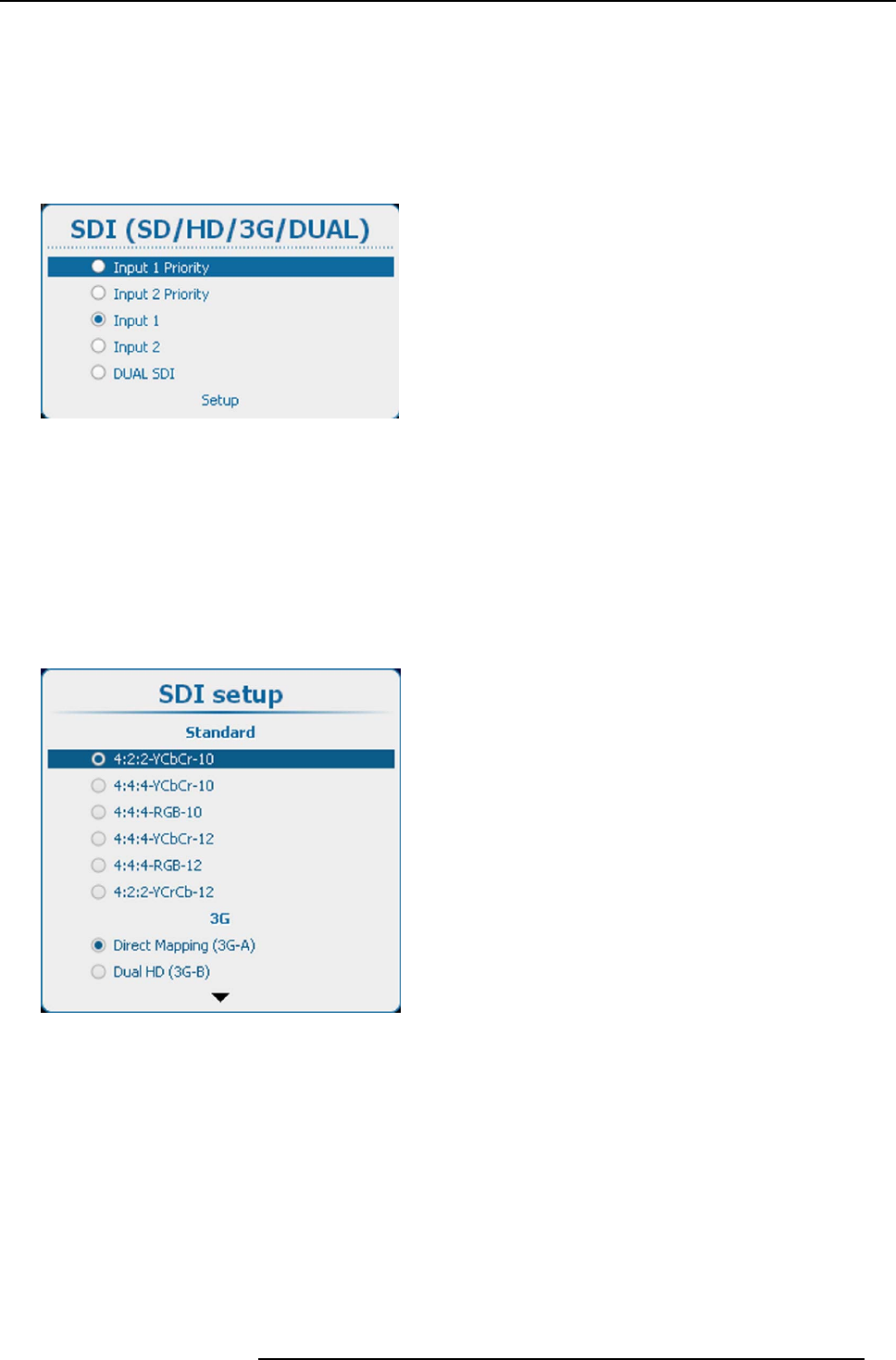

Image 8-9
SDI, input type selection
The following selections are possible:
Input 1 Priority (when 2 sources are present, the source on input 1 will have the priority)
Input 2 Priority (when 2 sources are present, the source on input 2 will ha
ve the priority)
Input 1
Input 2
Dual SDI
SDI setup
To set up the SDI input, select Setup and press ENTER.
Image 8-10
SDI set up
First, select the standard. Use the or key to select and press ENTER to accept.
Standard :
4:2:2 - YCbCr-10
4:4:4 - YCbCr-10
•4:4:4-RGB-10
4:2:2 - YCbCr-12
4:4:4 - YCbCr-12
•4:4:4-RGB-12
Then, select the 3G setting. Use the or key to select and press ENTER to accept.
