12. Alignment

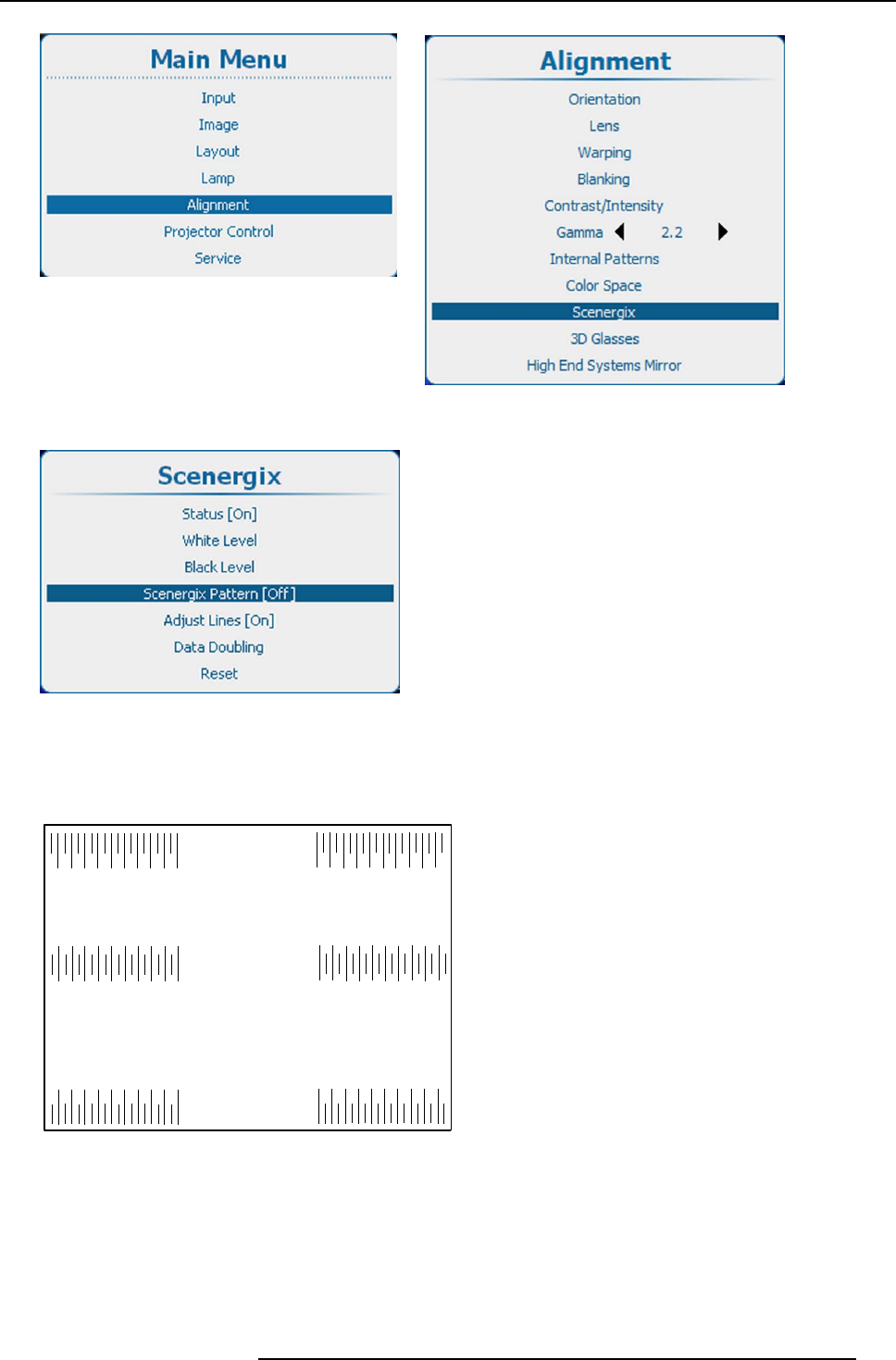

Image 12-124
Main menu, alignment
Image 12-125
Alignment, Scenergix
Image 12-126
Scenergix, pattern activation
2. Press ENTER to toggle between [On] or [Off].
[On] : Internal scenergix pattern is displayed.
[Off] : no scenergix pattern is displayed.
10509013017021025029033037010 50 90 130 170210250290330 370
10
50 90 130170 210250290330 370
10
5090130170210250290330370
40 80 120160 200240280 320360400
4080120160200240280320360400
Image 12-127
Scenergix pattern
12.14.5 Scenergix adjustment lines
What can be done?
Border lines for the blending areas can be displayed while adjusting the white and black level.
