13. Projector Control
13.4 Serial Communication
Overview
Baud rate setup
Interface Standard
13.4.1 Baud rate setup
What can be done ?
The baud rate for to establish a serial communication with a computer can be set.
How to set
1. Press Menu to activate the menus and select Projector Control Serial Com m unication Baud rate.

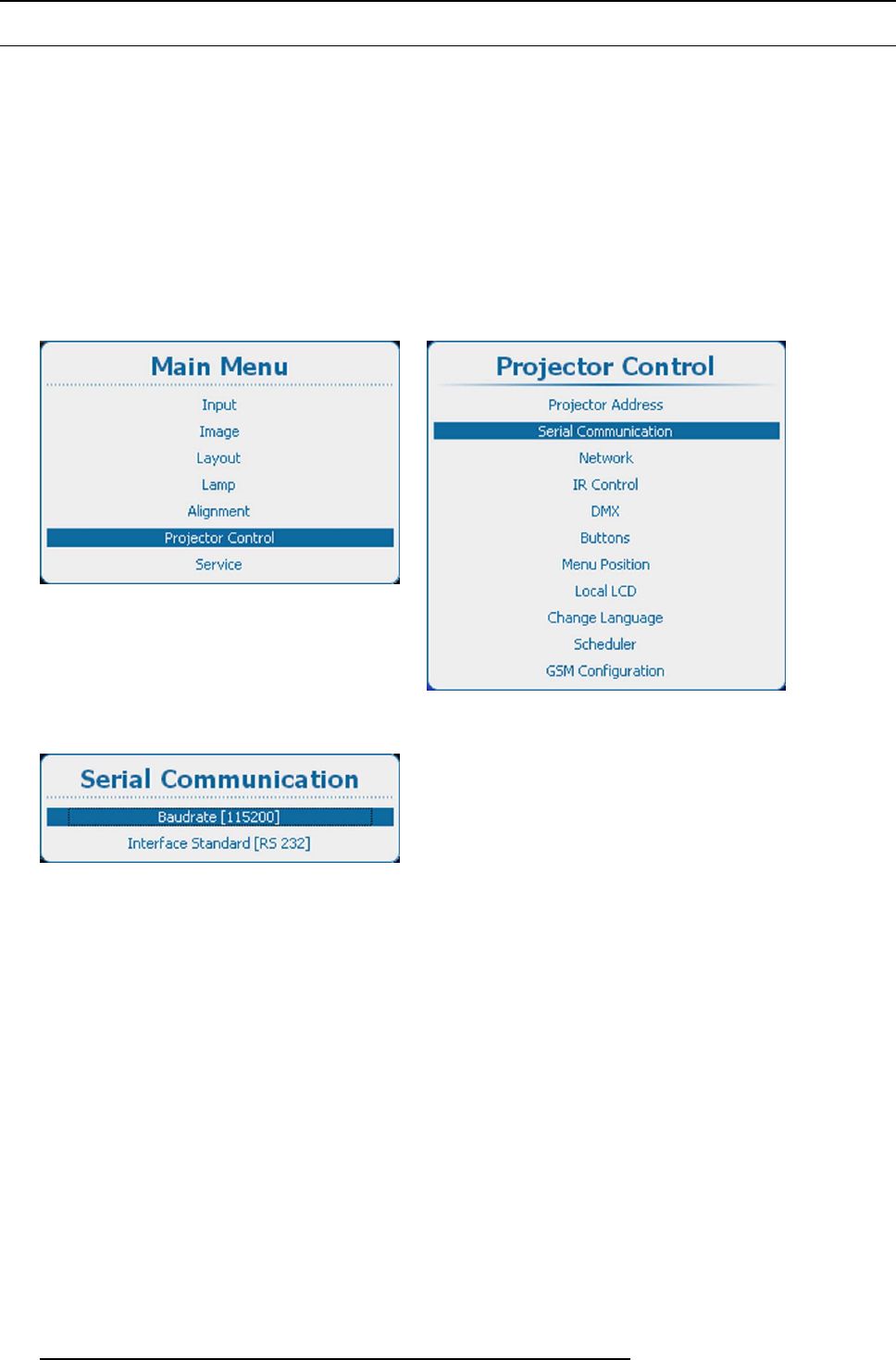

Image 13-9
Main menu, projector control
Image 13-10
Projector control, serial communication
Image 13-11
Serial communication, baud rate
2. Press ENTER to toggle between the available baud rates.
The following baud rates can be selected:
- 9600
- 19200
- 38400
- 57600
- 115200
13.4.2 Interface Standard
What can be done?
The communication protocol for the communication between the projector and a computer can be set to RS232 or RS422.
How to set up
1. Press Menu to activate the menus and select Projector Control Serial Communication.
