3. Physical installation
How to install the batteries in the remote control ?

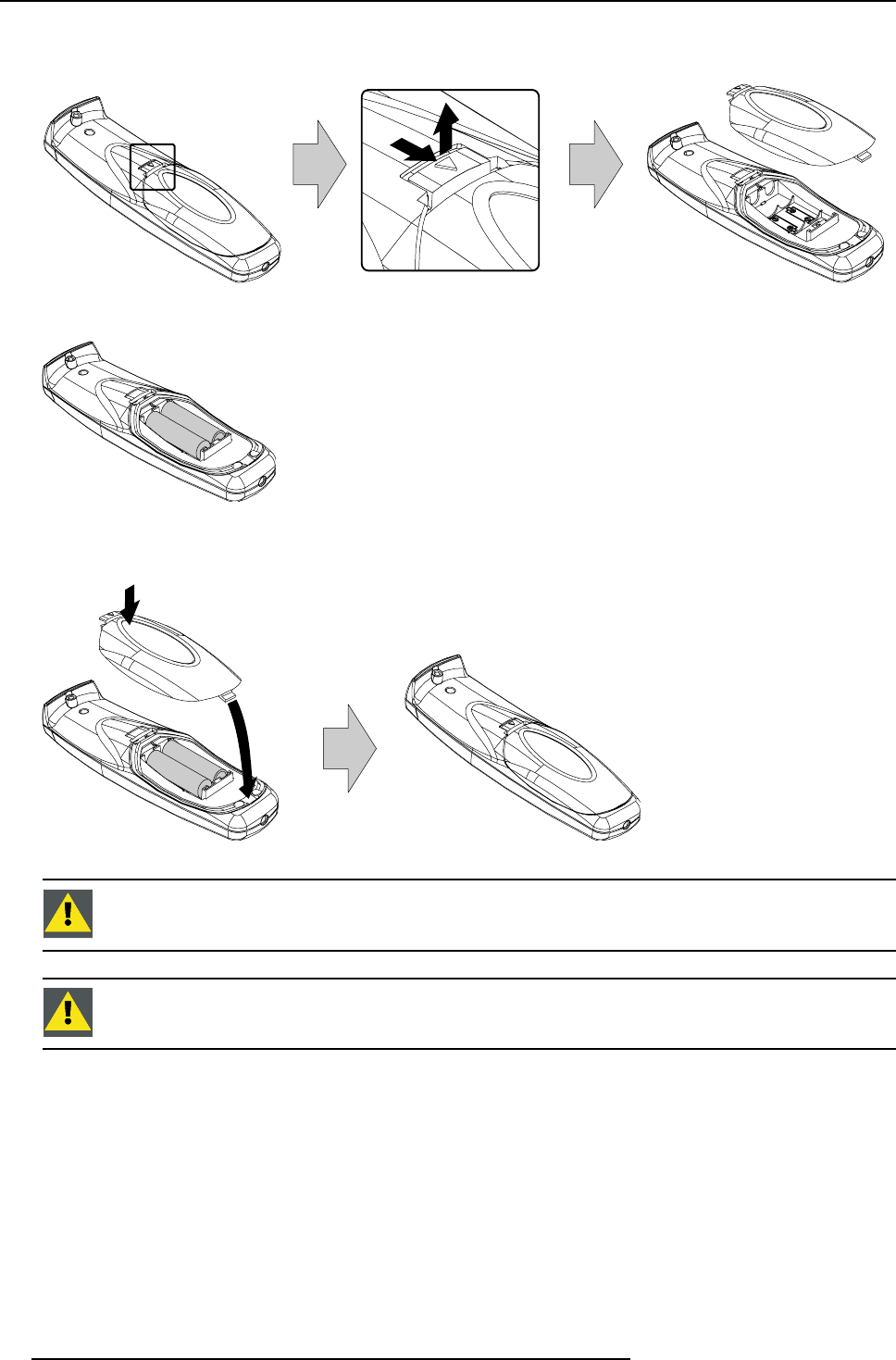

1. Push the battery cover tab with the ngernail a little backwards (1) and pull, at the same time, the cover upwards (2).
1
2
Image 3-2
2. Insert the two AA size batteries, making sure the polarities match the + and - marks inside the battery compartment.
+
+
-
-
Image 3-3
3. Insert (1) the lower tab of the battery cover in the gap at the bottom of the remote control, and press (2) the cover until it clicks
in place.
+
+
-
-
1
2
Image 3-4
CAUTION: Replace with the correct battery type. Use two AA size batteries. There is a risk of explosion if the
battery is replaced with an incorrect type.
CAUTION: Replace the battery as explained above. There is a risk of explosion if the battery is incorrectly
installed.
3.1.2 RCU rugged case installation
How to install the rugged case of the remote control ?
1. Slide the bottom of the RCU into
the rugged case and then pull the top of the rugged case over the top of the RCU as illustrated.
