12. Alignment
12.8.10 Selecting and changing the position of a specicpoint
About point selection
Depending on the warp level, number of selectable points, a specic point can be selected and moved in any direction. The coordi-
nate system works with 33 x 33 pixels (0 to 32). Depending on the warp level the cursor will jump from active point to active point.
E.g. for 5 x 5 the rst point has coordinates (0,0), the second point in horizontal direction will have coordinates (12,0), etc. .
How to select a point
1. Select the warp level (1).
1
3
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
02134657810911121413 15 16 1817 19 20 2221 23 24 2625 27 28 3029 31 32
1
21
11
6
16
532 4
25
15
23
13
24
22
10
20
8
18
12
14
7
9
19
17

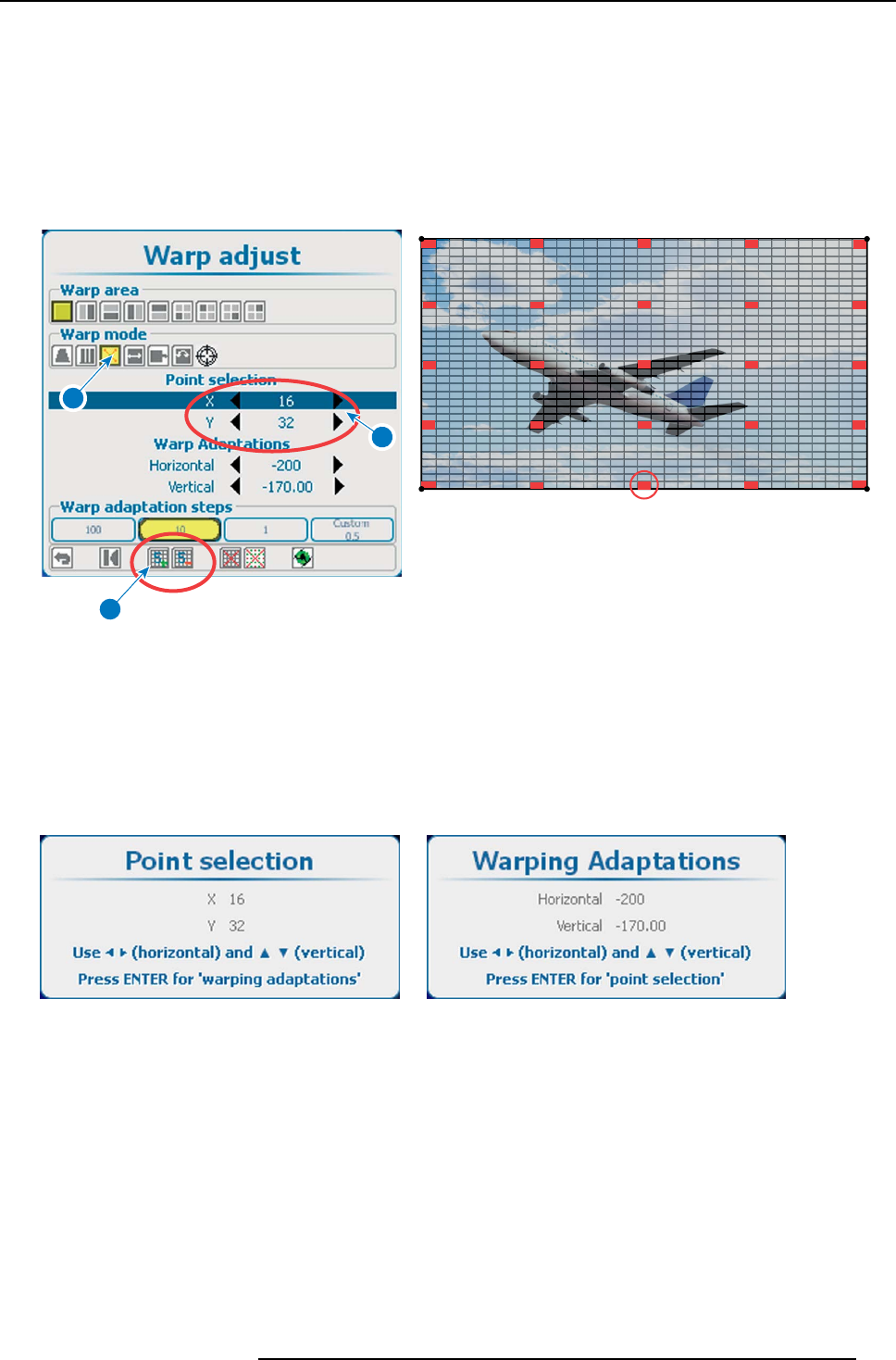

Image 12-46
Point selection
2. Select Warp mode points (2).
3. Use the or key to go to Point selection.
4. Select alternating the X and Y coordinate and change the value (3).
Or,
press ENTER to open the point selection window.
Use the 4 arrow keys to select the desired point.
Press ENTER to the Warping adaptations.
Image 12-47
Point selection
Image 12-48
Moving selected point
5. Use the 4 arrow keys to change the position of the selected point.
12.8.11 Scaling the image
About scaling
It is possible to scale the whole image. This is considered as an equal scale of the 4 corner points in 2 x 2 mode. The Warping
adaptation window is used to scale the image.
How to scale
1. Select the 2 x 2 adjustment level. See "Setting the warping level", page 175.
The default selected anchor point is the left top corner of the image.
2. Select the desired warp area.
