3. Physical installation
1
2

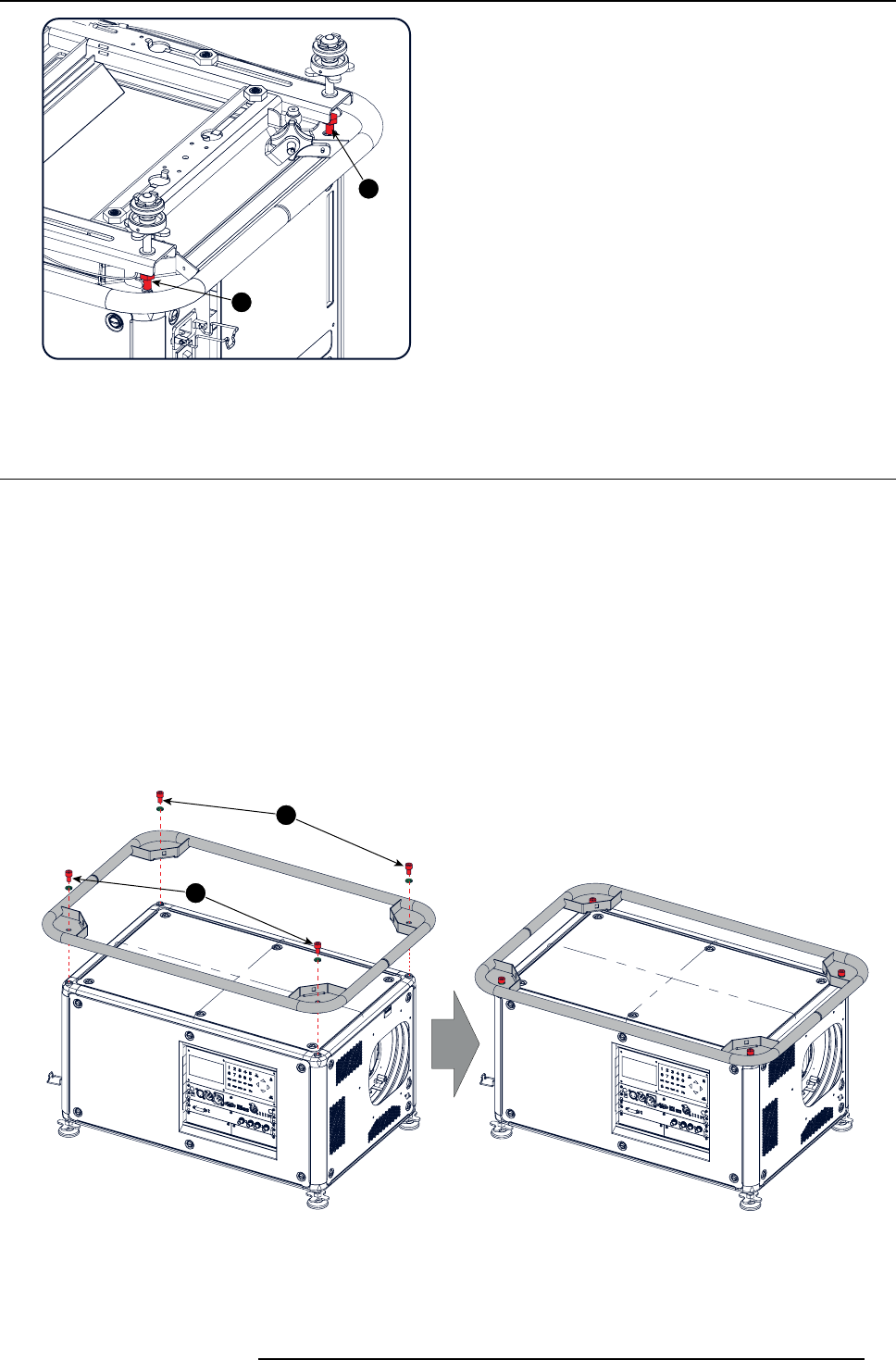

Image 3-47
Insert bolts
3.6 Mounting the top carry handler
Purpose
This carry handle can be used to transport the projector in an easy way.
Necessary tools
8 mm Allen wrench
Necessary parts
• 4x bolt M10 x 16
• 4x washer
• 1x carry handler
How to mount
1. Place the carry handle on top of the projector so that the fixation holes match the holes in the projector.
1
1
Image 3-48
top carry handle
2. Turn in the 4 fixation bolts (1)
. Insert a washer between the bolt and the carry handle.
R5905032 HDX SERIES 02/03/2015 41
