4. Input & Communication
Function
Color
Description
PWR
orange
See chapter “Getting started”, topic Status LEDs
LMP
orange
See chapter “Getting started”, topic Status LEDs
4.4 Utility-Accessory Outlet
What can be done ?
An extra DMX controlled accessory can be added to projector.
Some examples of the use of this connector:
Connect external accessories like the Catalyst Mirrorhead (Even if this example still needs a extra Power supply
Connect other DMX enabled devices like, color changers, shutters, dimmer wheels
Connect a DMX Lens option
Connect a DMX rigging frame level device
Use for external relay

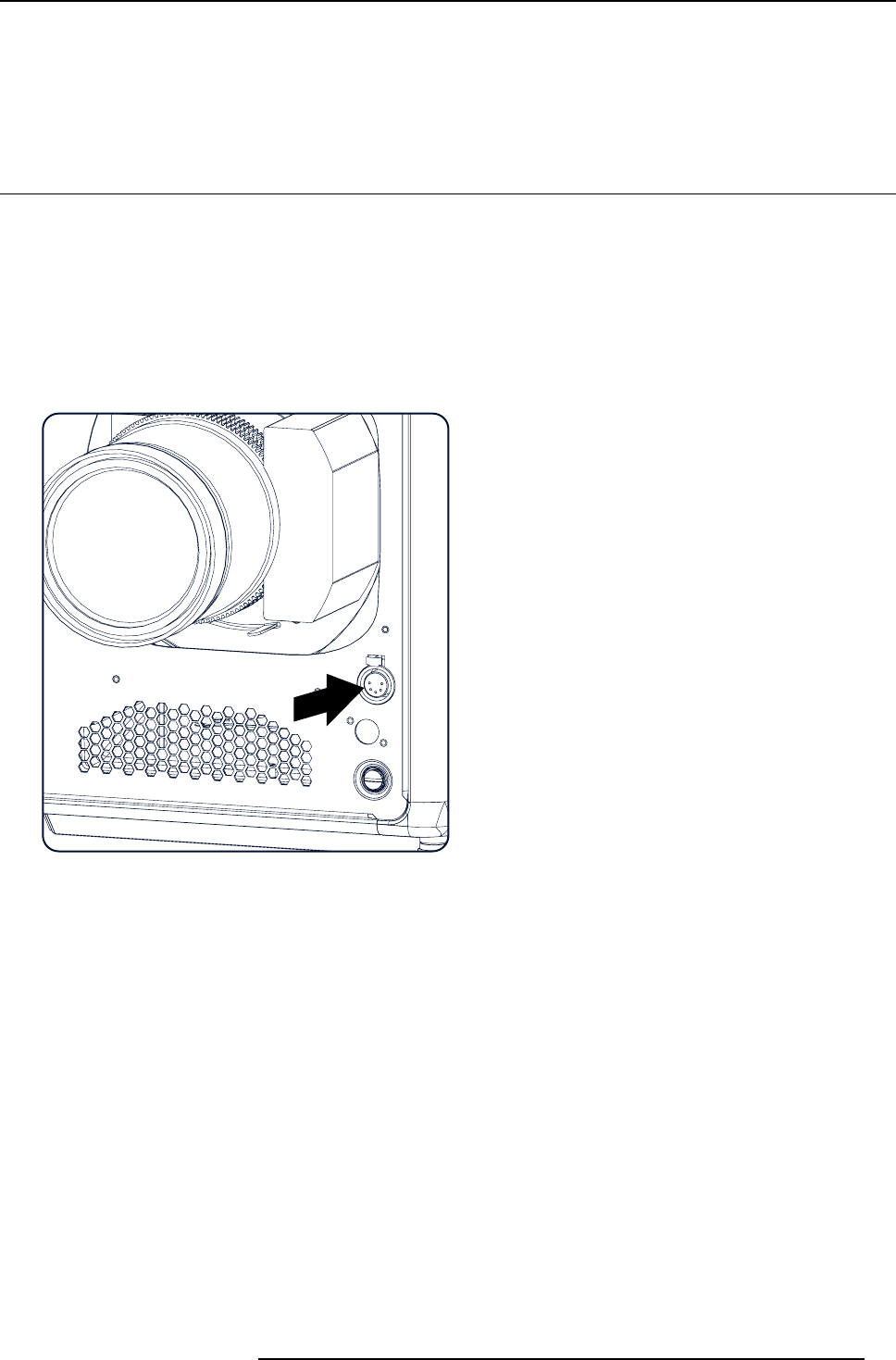

Image 4-6
Utility-accessory outlet
Pin conguration
1
GND
2DMXData
3DMXData+
4
Power 9 - 24 Volt DC With Setting in menu 9 / 12 / 24 @ 25W
Note : do not overload ! Maximum 1A on 24V is allowed.
The connector is a duplicated output of the DMX signal entering the projector over the 5 Pin XLR
