8. Input
3G-A and 3G-B:
• Direct Mapping (3G-A)
• Dual HD (3G-B)
When Dual HD is selected, it is possible to use Swap links. If Swap links must be used, use the ▲ or ▼ key to select and press
ENTER to accept. The check box will be checked.
Dual HD :
• Swap links
8.3.5 5 cable input
How to select
Select 5 cable and press ENTER to open the selections

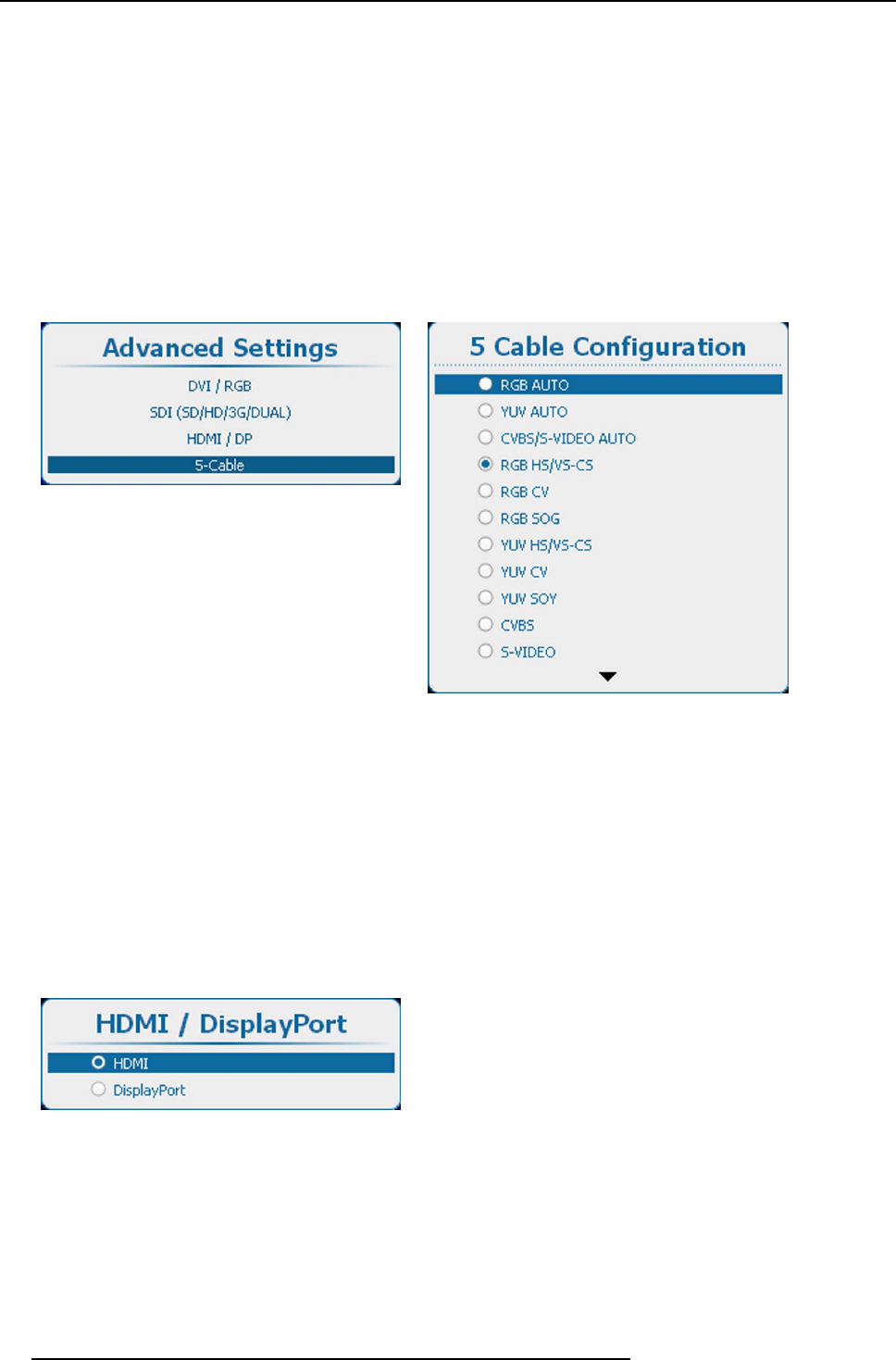

Image 8-11
Advanced settings, 5-cable
Image 8-12
5 cable configuration
Use the ▲ or ▼ key to select the desired configuration and press ENTER to select.
When e.g. CVBS/S-VIDEO AUTO is selected, the projector discovers itself which type of signal is connected to it and loads the
correct settings.
For RGB selections, advanced settings are possible. To adjust these advanced settings, use the ▲ or ▼ key to select Advanced
settings and press ENTER. The advanced settings menu opens:
Press ENTER to toggle between [Analog] and [TTL].
8.3.6 HDMI - DisplayPort input (3D input module)
How to select
Select HDMI/DP and press ENTER to open the selections
Image 8-13
HDMI-Display port selection
Use the ▲ or ▼ key to select the desired input and press ENTER to select.
