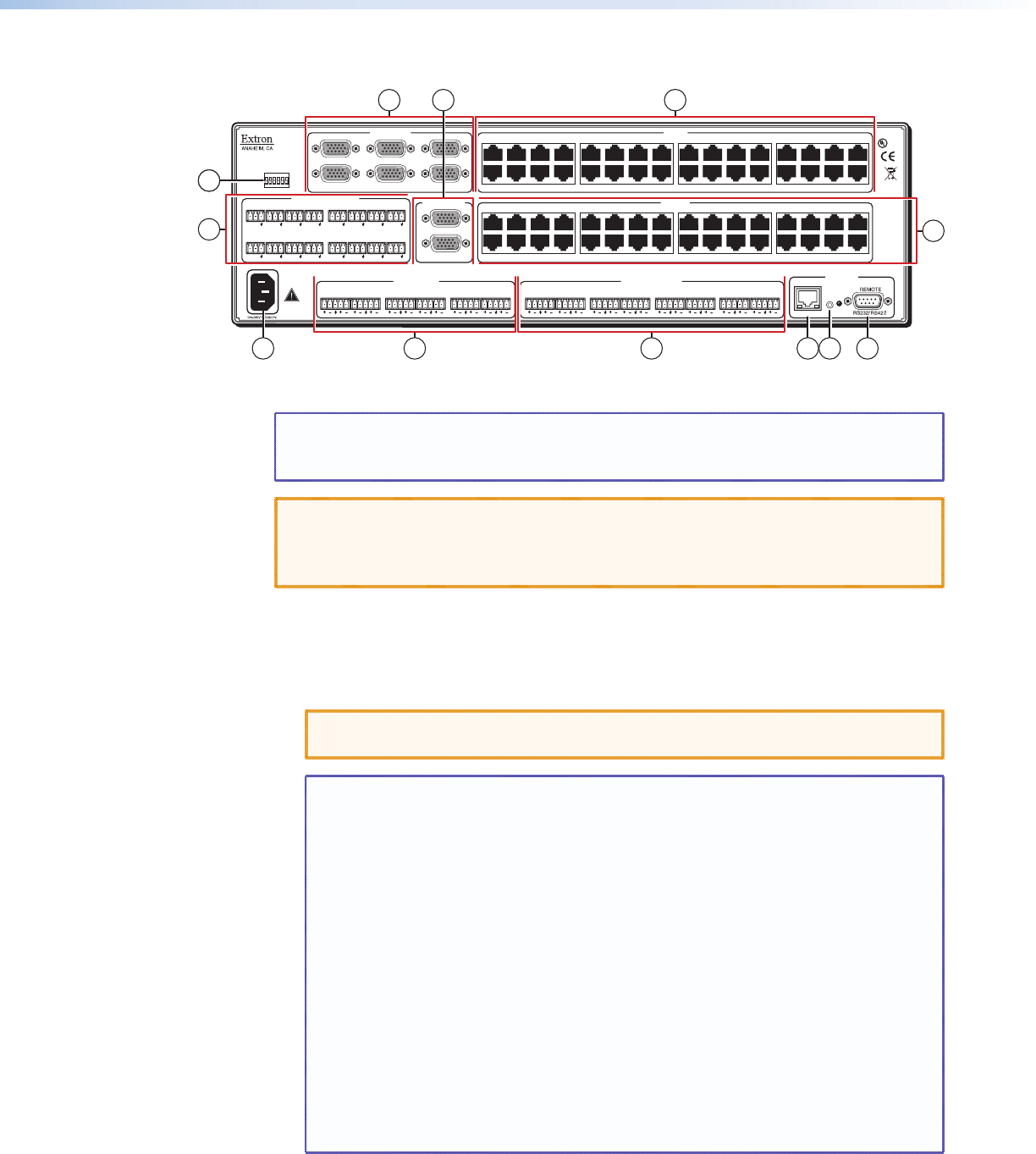

Figure 4 shows the rear panel of the MTPX Plus 3232.
ETHERNET
ACT
INPUT
SELECT
LOCAL
RJ-45
LOCAL INPUTS
1234 5678 910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1234 5678 910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1
2
213
456
RS-232 OUTPUT INSERTION
LOCAL OUTPUTS OUTPUTS
INPUTS
CONTROL
MONO AUDIO OUTPUTSAUDIO INPUTS
LINK
RESET
LR
1
LR
2
LR
3
LR
4
LR
5
LR
6
LR
1
LR
2
LR
3
LR
4
LR
5
LR
6
LR
7
LR
8
TxRx
1
TxRx
2
TxRx
3
TxRx
4
TxRx
5
TxRx
6
TxRx
7
TxRx
8
TxRx
9
TxRx
10
TxRx
11
TxRx
12
TxRx
13
TxRx
14
TxRx
15
TxRx
16
US
LISTED
1T23
I.T.E.
®
3.2A MAX
4
INPUTS
13 11 12 10
4
2 17
3 8
5
3.2A MAX
6
Figure 4. MTPX Plus 3232 Twisted Pair Matrix Switcher
NOTE: The MTPX Plus 1632 and MTPX Plus 3216 are housed in the same 3U enclosure,
but have fewer input connectors (16 x 32 matrix) or output connectors
(32 x 16 matrix) to accommodate their smaller matrix sizes.
CAUTIONS: • Use Electrostatic discharge (ESD) precautions (that is, be electrically
grounded) when making connections. Electrostatic discharge can damage
equipment, even if you cannot feel, see, or hear it.
• Remove system power before making any connections.
Signal Inputs
a Inputs (TP) connectors — Connect the TP outputs of compatible MTP or VTT
transmitters to these RJ-45 female connectors.
CAUTION: Do not connect this device to a computer data or telecommunications
network.
NOTES: • Configure the switcher for the appropriate content on the audio/RS-232
wire pair (pins 3 and 6) for each TP input (see “Defining the Audio/
RS-232 Wire Pair“ in the “Operation” section). You can also use
SIS commands (see the “Programming Guide” section), the Matrix
Switchers Control Program (see the “Matrix Software“ section), or the
HTML pages (see the “HTML Operation” section).
• For best results, use a minimum cable length of at least 25 feet (7.5 m)
between the transmitter and the MTPX input and between the MTPX
output and the transmitter.
• RJ-45 termination with CAT 5, CAT 5e, or CAT 6 cable must comply with
the TIA/EIA T568A or TIA/EIA T568B wiring standards for all connections.
RJ-45 termination with Enhanced Skew-Free A/V UTP cable must comply
with TIA/EIA T568A only.
• For low resolution MTPs (S-video and composite video) on the TP
inputs, the MTPX Plus audio circuits are compatible only with the newer
generation, mono audio models. See your MTP transmitter/ receiver and
refer to the associated manual to determine which MTP models you have.
MTPX Plus Series • Installation 12
