MTPX PLUS SERIES
MTP MATRIX SWITCHER
5 6 7 8
1
2 3 4

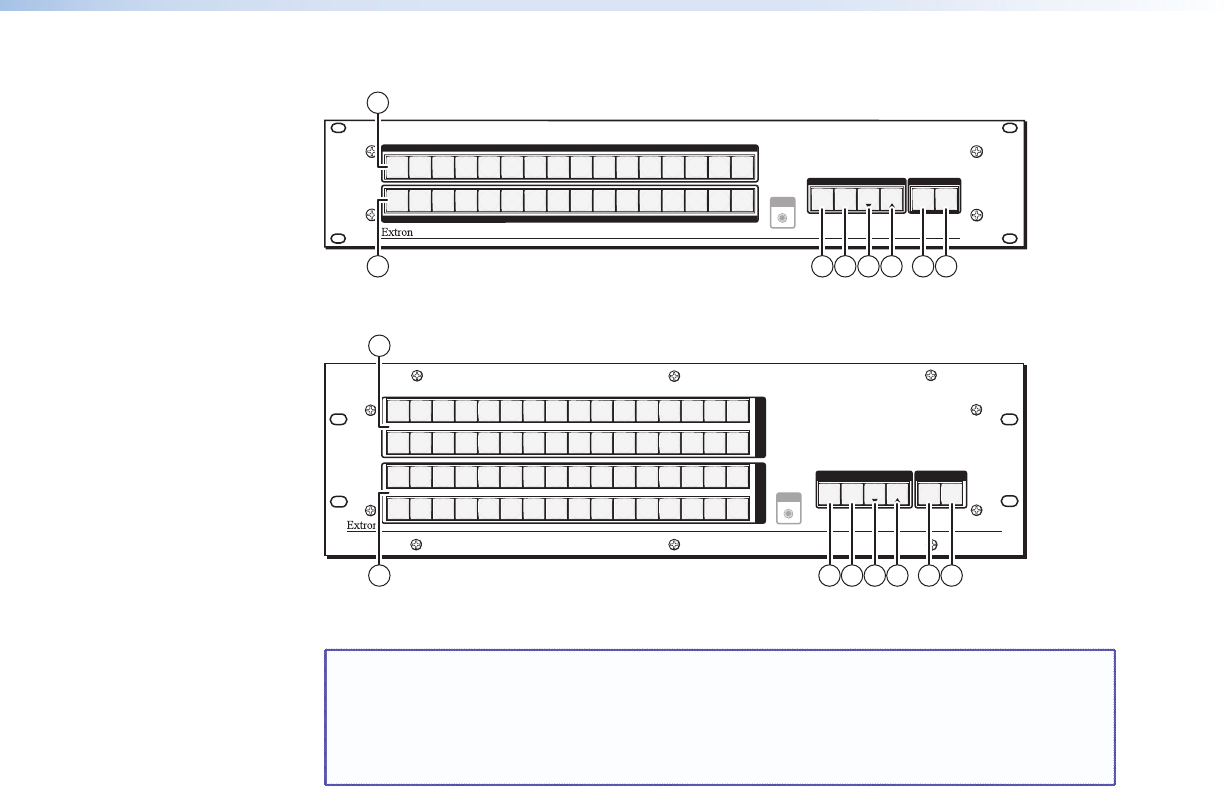

Figure 17. Front Panel, MTPX Plus 816, 168, 1616
MTPX PLUS SERIES
MTP MATRIX SWITCHER
1
2
3
4
5
6 7
8
9
10
11 12
13 14 15 16
17
18
19
20
21
22 23
24
25
26
27 28
29 30 31 32
O
U
T
P
U
T
S
1
2
3
4
5
6
7 8
9
10
11
12
13 14 15 16
17
18
19
20
21
22 23
24
25
26
27 28
29 30 31 32
I
N
P
U
T
S
CONTROL I/O
CONFIG
ENTER PRESET
VIEW
ESC
VIDEO AUDIO
5 6 7 8
1
2 3 4
Figure 18. Front Panel, MTPX Plus 1632, 3216, 3232
NOTES: • Input and output buttons cannot select an input number or output number
that is higher than your matrix size supports. Buttons numbered higher than
your matrix size do have other functions as described in the following pages.
• See “Front Panel Operations” for detailed descriptions of the following
operations.
a Input buttons — See page 25.
b Output buttons — See page 25.
c Enter button — See page 26.
d Preset button — See page 27.
e View button — See page 27.
f Esc button — See page 27.
g Video button — See page 28.
h Audio button — See page 28.
MTPX Plus Series • Operation 23
