The numbered translucent covers on the input and output pushbuttons can be removed and
replaced to insert labels behind the covers.
Input and output labels can be created easily with the Extron Button-Label Generator
software, which is shipped with every Extron matrix switcher. Each input and output can be
labeled with names, alphanumeric characters, or color bitmaps for easy and intuitive input
and output selection (see figure 19). See the “Matrix Software” section for details on
using the labeling software and the “Reference Information” section for blank labels and
a procedure for removing and replacing the translucent covers.
DVD
VCR
Computer Computer
Document
Camera
VTG 200
10
13 15
2928 30 31 32
I
N
P
U
T
S

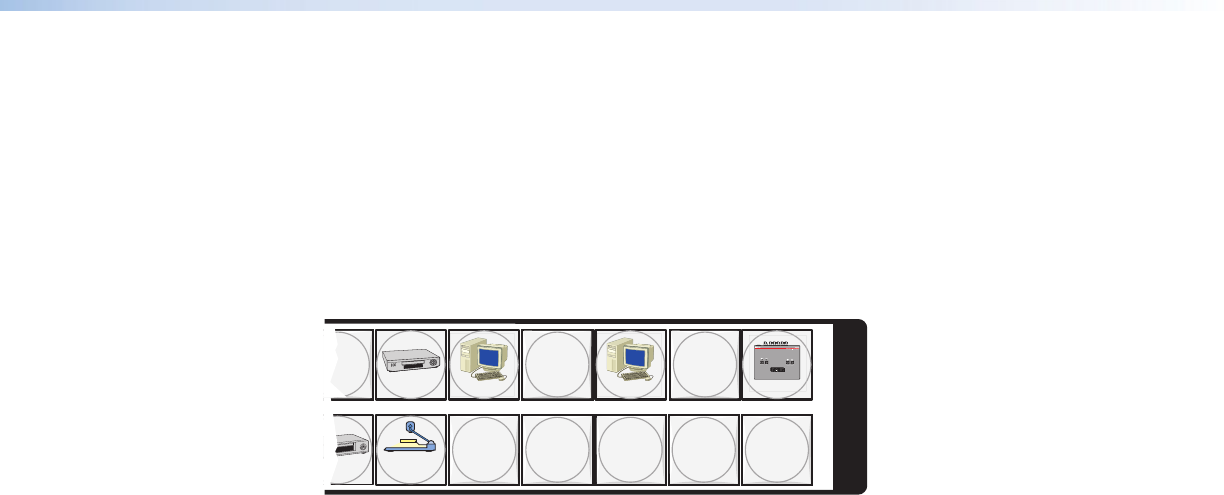

Figure 19. Sample Button Icons
Front Panel Operations
The following sections detail the power-up process and then provide sample procedures for
the following actions:
• Creating ties, sets of ties, and configurations
• Changing a configuration
• Viewing ties, sets of ties, and configurations
• Creating I/O groups
• Saving a preset
• Recalling a preset
• Muting and unmuting outputs
• Viewing and Adjusting the Input Audio Level
• Viewing and Adjusting the Local Output Volume
• Locking and unlocking the front panel
• Performing front panel resets
• Toggling background illumination on and off
• Defining the Audio/RS-232 Wire Pair
• Reading and setting the Remote port settings
MTPX Plus Series • Operation 29
