b. Press and release the Output 1 through 4 buttons.
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S

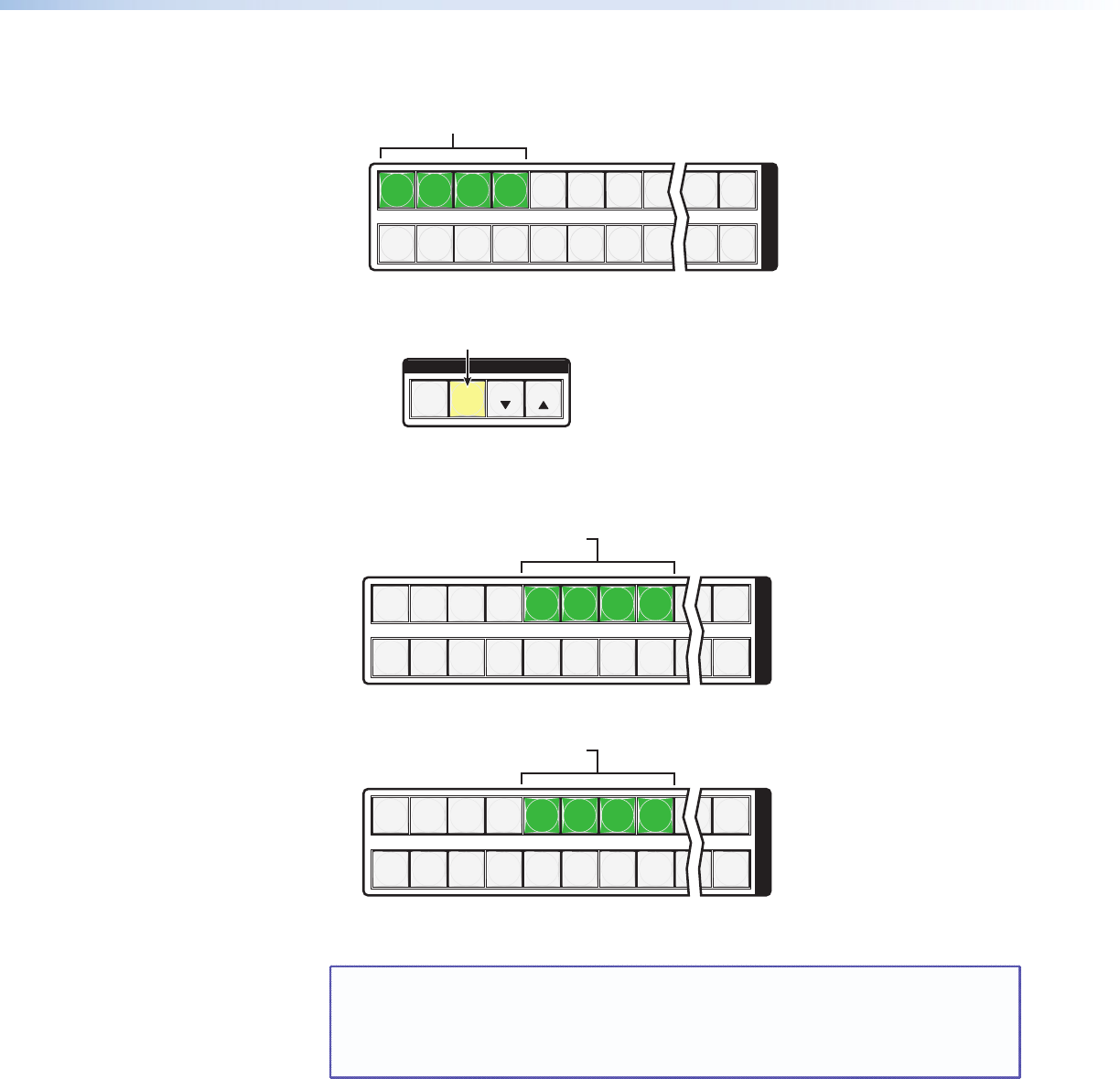

Press the buttons.
The selected buttons light green.
5. Select group 2: Press and release the Preset button.
C O N T R O L
PRESET
ENTER
ESCVIEW
1324
Press the button.
The button lights amber to indicate the selection.
Group #
6. Assign inputs and outputs to group 2:
a. Press and release the Input 5 through 8 buttons.
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 25 32
I
N
P
U
T
S
Press and release the buttons.
The selected buttons light green.
b. Press and release the Output 5 through 8 buttons.
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 25 32
I
N
P
U
T
S
Press and release the buttons.
The selected buttons light green.
7. Exit I/O Group mode: Simultaneously press and release the Video button and Audio
button.
NOTE: If you do nothing for approximately 30 seconds, the front panel times out
and the switcher exits I/O Group mode:
• Group 1 consists of inputs 1 through 4 and outputs 1 through 4.
• Group 2 consists of inputs 5 through 8 and outputs 5 through 8.
MTPX Plus Series • Operation 42
