3. Select an output: Press and release the output 1 button.

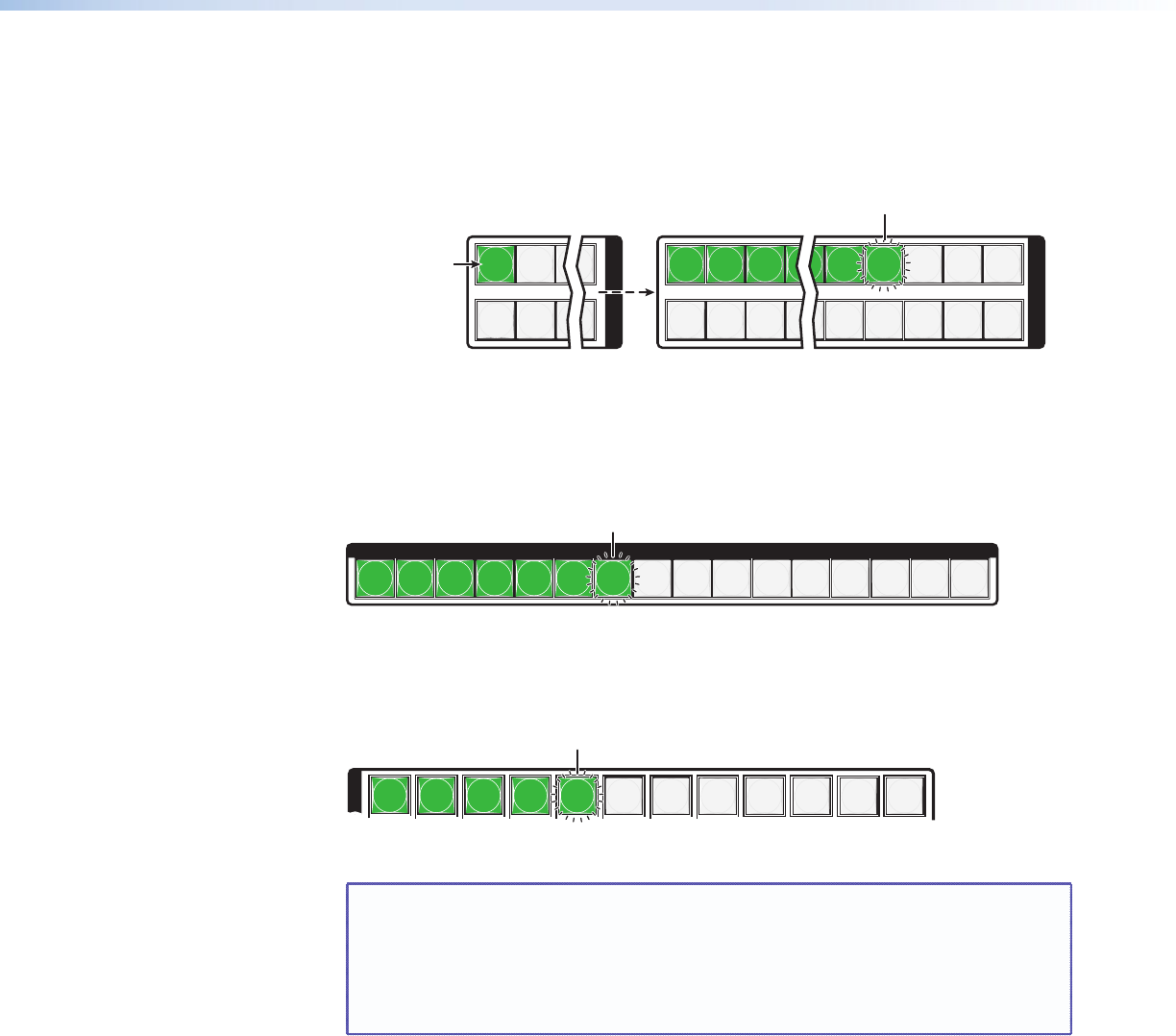

In figure 32 through figure 34, the lit or blinking input buttons indicate 41.5 percent of
the applied audio input. The unlit input buttons indicate an audio volume attenuation of
39 dB. Figure 33 and figure 34 show the same 41.5 percent, 39 dB volume.
1 2 6
17 18 12
1 2 3 4 12 13 14 15 16
17 18 19 27 28 29 30 31 32
•
•
O
U
T
P
U
T
S
I
N
P
U
T
S
Each lit input button beyond input 1 indicates that 3 percent of the total input volume
is applied to the output. The flashing button indicates an additional 1.5 percent.
39 dB attenuation
41.5% volume
Press the button.
It lights green
Figure 32. Select Output 1
Figure 33 shows the same volume as figure 32, but displayed on a 16-input-button
switcher, such as an MTPX Plus 1616.
11 162
1 3 4 5 6 7 8 9
10 14
12
13 15
INPUTS
39 dB attenuation,
41.5% volume
Figure 33. Volume Display on a 16-Input-Button Switcher
Figure 34 shows the same volume as figure 32, but displayed on a 12-input-button
MTPX Plus 128.
1
2 3
4
5
6 7
8
I
N
P
U
T
9
10
11
12
S
39 dB attenuation,
41.5% volume
Figure 34. Volume Display on a 12-Input-Button Switcher
NOTE: Volume is protected when front panel Lock mode 2 is selected. You can
view the volume in Lock mode 2 but you cannot change it from the front
panel (see “Setting the Front Panel Locks (Executive Modes)” on
page 59).
If front panel Lock mode 2 is selected and you try to perform step 4, the
actions are ignored and the Enter, Video, and Audio buttons flash.
MTPX Plus Series • Operation 57
