Example 4: Viewing video and audio (RS-232), audio (RS-232) only,
and video only ties
In the following example, we view the video and audio (or RS-232), audio- (or RS-232) only,
and video-only ties in the current configuration. The steps show the front panel indications
that result from your action.
NOTE: This example assumes that you have performed example 1, example 2, and
example 3.

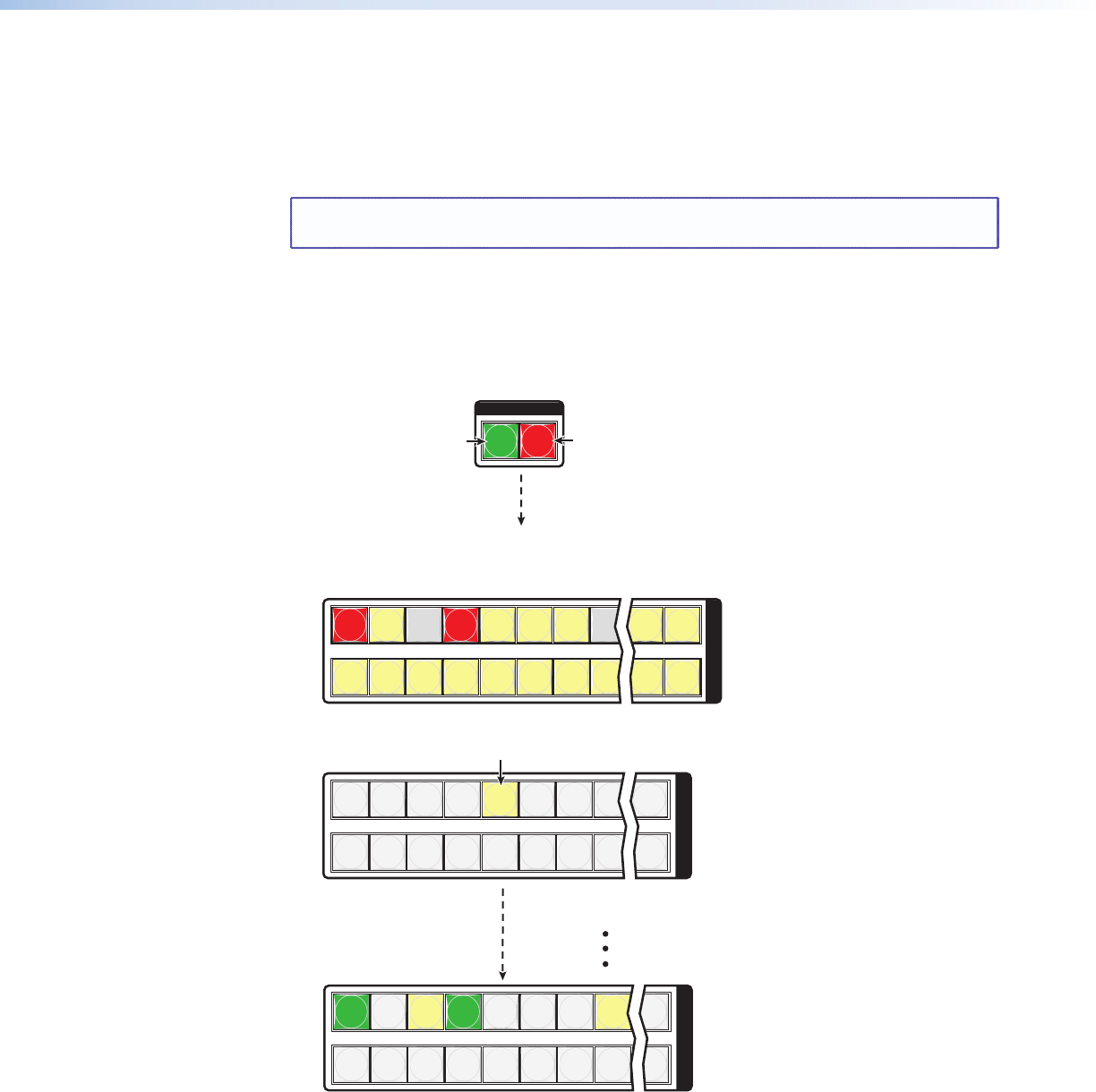

1. Clear all selections: Press and release the Esc button.
2. Select View-only mode: Press and release the View button. The View button lights
red.
3. Select video and audio for viewing: Press and release the Video button and the
Audio button as necessary to light both.
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
I / O
VIDEO AUDIO
Until you select an input, the buttons for all untied
outputs light amber if no inputs are tied, green if no
video inputs are tied (only audio is tied), or red if no
audio or RS-232 inputs are tied (only video is tied).
Press the Audio button
to toggle on and off.
The button lights red
when selected.
Press the Video button
to toggle on and off.
The button lights
green when selected.
4. Select an input: Press and release the input 5 button.
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
I
N
P
U
T
S
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
U
O
T
P
U
T
S
The output buttons for outputs that are not tied to Input 5 are
either unlit or background illuminated.
The output buttons for outputs that are tied to Input 5
light or blink the appropriate color:
Lit amber for audio and video ties (audio follow)
Lit green for video ties (audio breakaway)
Red for audio/RS-232 ties (audio/RS-232 breakaway)
Press the button. It lights amber.
MTPX Plus Series • Operation 37
