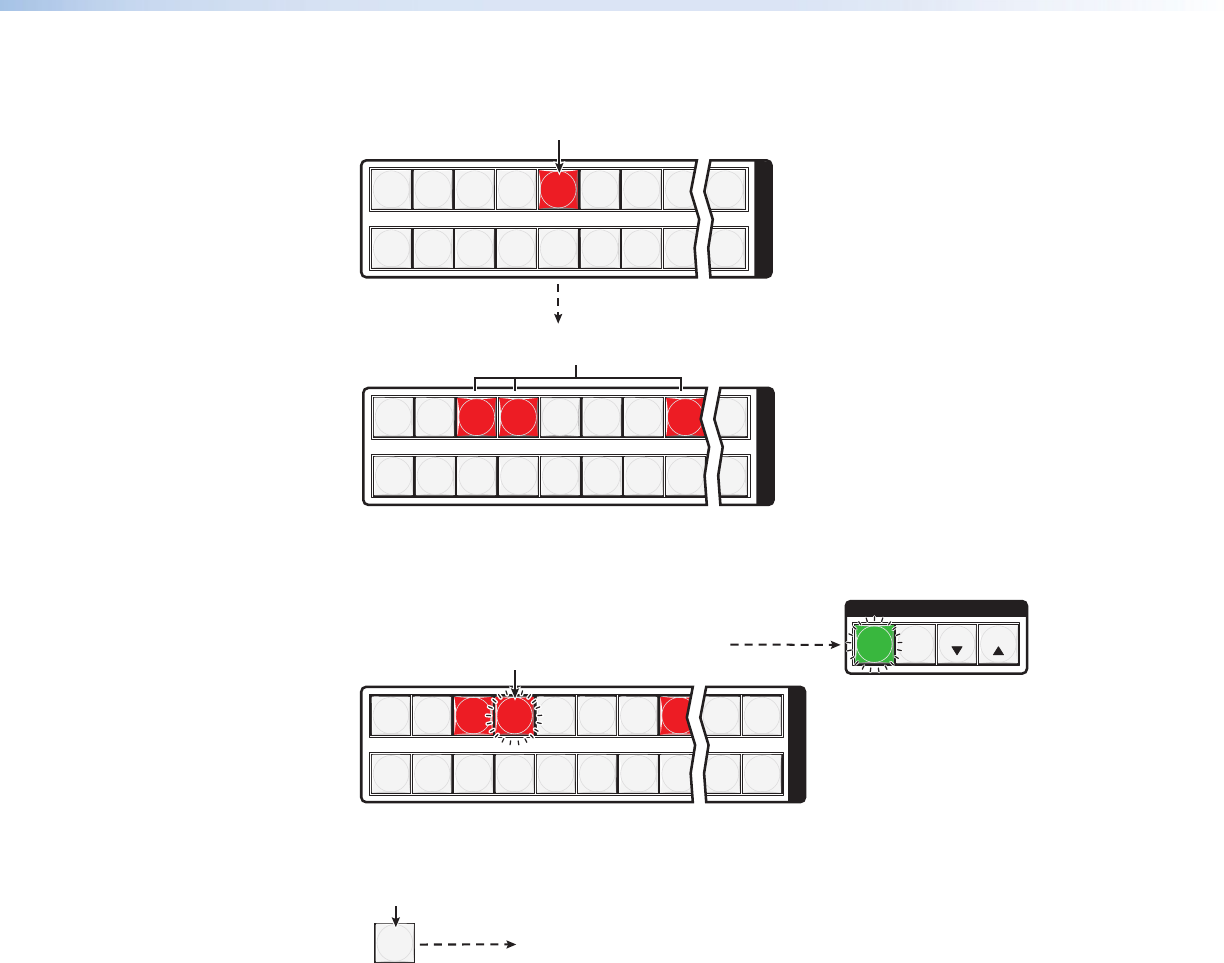

3. Select an input: Press and release the input 5 button.
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
I
N
P
U
T
S
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
O
U
T
P
U
T
S
The Output 1 button does not light to indicate the tie
created in example 2 because that tie is video only.
The Output 3, Output 4, and Output 8 buttons light
red to indicate the audio ties created in example 1.
Press the button.
The button lights red.
4. Select the output: Press and release the output 4 button.
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the button.
The button blinks red to indicate the pending change:
audio input will be untied.
The Enter button blinks
green to indicate the need to
confirm the change.
5. Confirm the change: Press and release the Enter button.
ENTER
All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to
confirm the configuration
change.
The Enter button returns to
unlit or background
illumination.
MTPX Plus Series • Operation 35
