Honeywell DCP552 Mark II Network Card User Manual



7-33
C93 (time proportional output system)
C94 (time proportional output system)
0: Goes on again within time proportional cycle
1: Does not go on again within time proportional cycle
This setting determines whether the output is to go on again after the result of a
PID computation has changed in a time proportional cycle (cycle time) and the
output has been turned off.

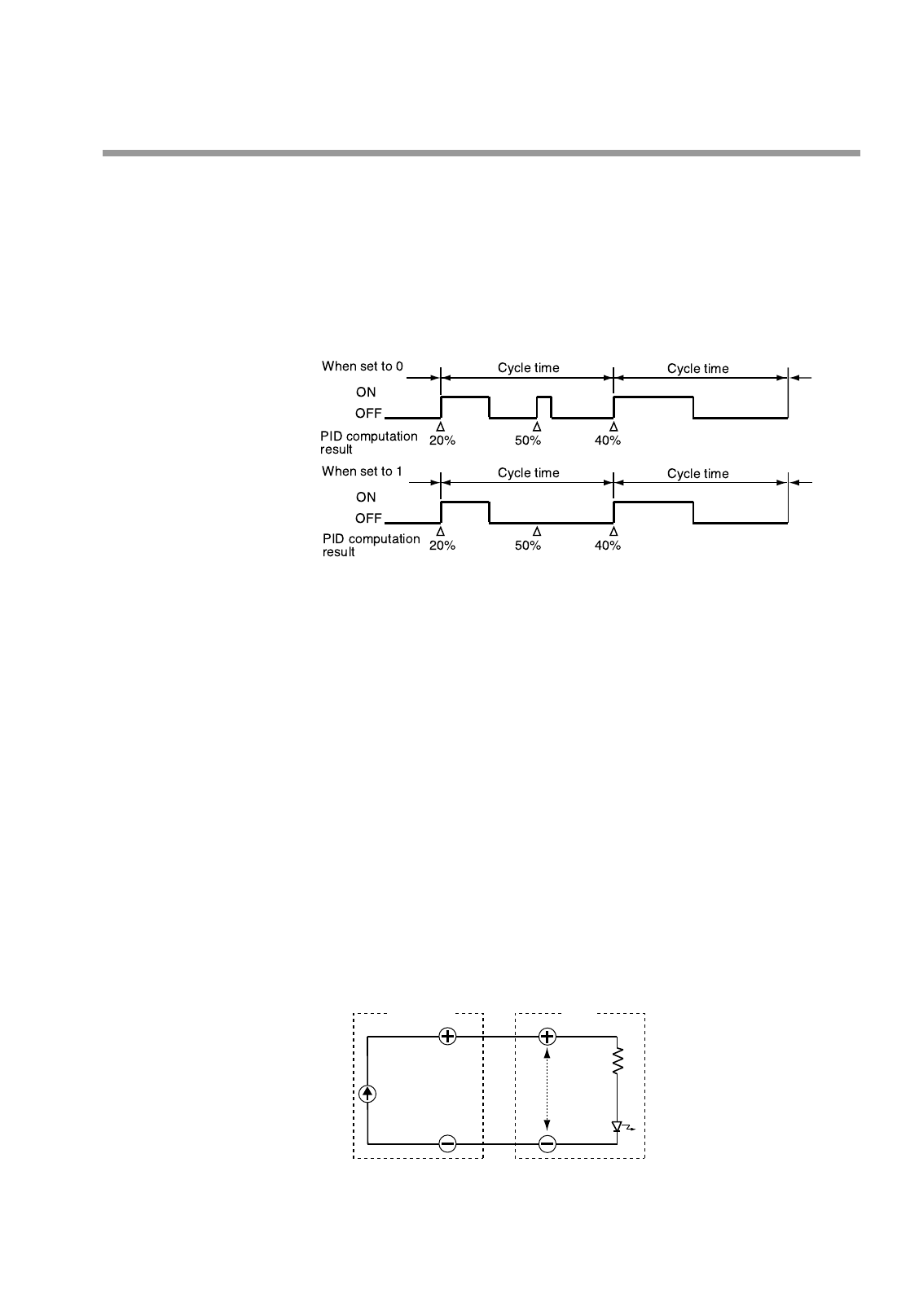

The difference between the two settings is illustrated below.
C95 (voltage output control)
C96 (voltage output control)
In a voltage time proportional output driven by SSR, the DCP552 must enter the
SSR rated input voltage (optimum striking voltage of arc).
The DCP552 employs a newly developed variable output system that can output
optimum striking voltage of arc to accommodate multiple SSR drives. A suitable
current value is set on the DCP552 to obtain optimum striking voltage of arc for
the internal impedance of the SSR. An equivalent circuit with related equations is
shown below.
Description of symbols
(1) Settings
I
0 : set DCP552 output current (range: 2 to 22mA)
V
0
: end-to-end load voltage (13.2V)
VSSR' : actual voltage input to SSR
V
SSR : rated input voltage range for SSR (VSSR/MIN to VSSR/MAX)
V
SSR/MIN
: minimum SSR rated input voltage
VSSR/MAX : maximum SSR rated input voltage
Z : internal SSR impedance
V
D
: internal SSR voltage drop (normally about 1 to 2V)
(2) Equivalent circuit showing connection of one SSR
Equations (1) and (2) below must be satisfied.
VSSR/MIN I0 × Z + VD V0 Equation (1)
VSSR' VSSR/MAX Equation (2)
(VSSR' = I0 × Z + VD)
I
(V )
0
0
DCP552
SSR
VSSR'
Z
V
D
Chapter 7. PARAMETER SETUP
