AI2524 Router Card User’s Manual
Page 9-66 August 1997
2524UM
Complex TARP Configuration Example
Figure 9-13 and this example show how to enable TARP on Router A
and on interface Ethernet 0 and assign the TID myname. A static rout
is created from Router A (49.0001.1111.1111.00) to Router D
(49.0004.1234.1234.1234.00) so that Router D can receive TARP
PDUs because Router C in not TARP capable. A blacklist adjacency
is also created on Router A for Router B (49.0001.7777.7777.7777.00
so that Router A does not send any TARP PDUs to Router B.

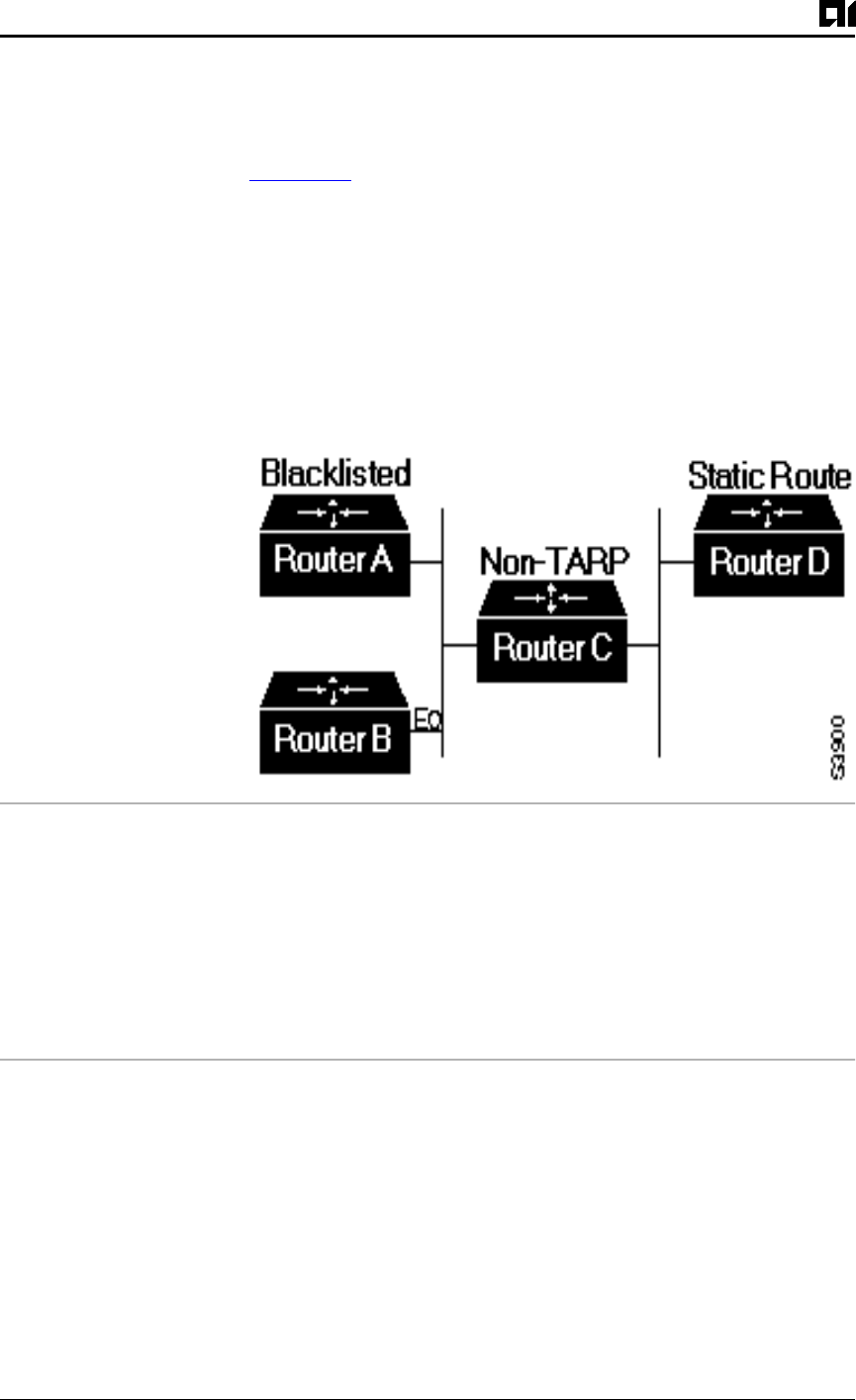

Figure 9-13:Sample TARP Configuration
clns routing
tarp run
tarp cache-timer 300
tarp route-static 49.0004.1234.1234.1234.00
tarp blacklist-adjacency 49.0001.7777.7777.7777.00
tarp tid myname
interface ethernet 0
tarp enable
!=
