sides of a remote link to Host C (on an Ethernet) and Host B (on a
Token Ring), with a dedicated leased line providing the connection.
This configuration listing allows resources on either side of the leased
line to call Host C or Host B. This configuration allows traffic intended
for the remote NSAP address specified in the
x25 map cmns
com-
mands (for the serial ports) to be switched through the serial interface
for which CMNS is configured.

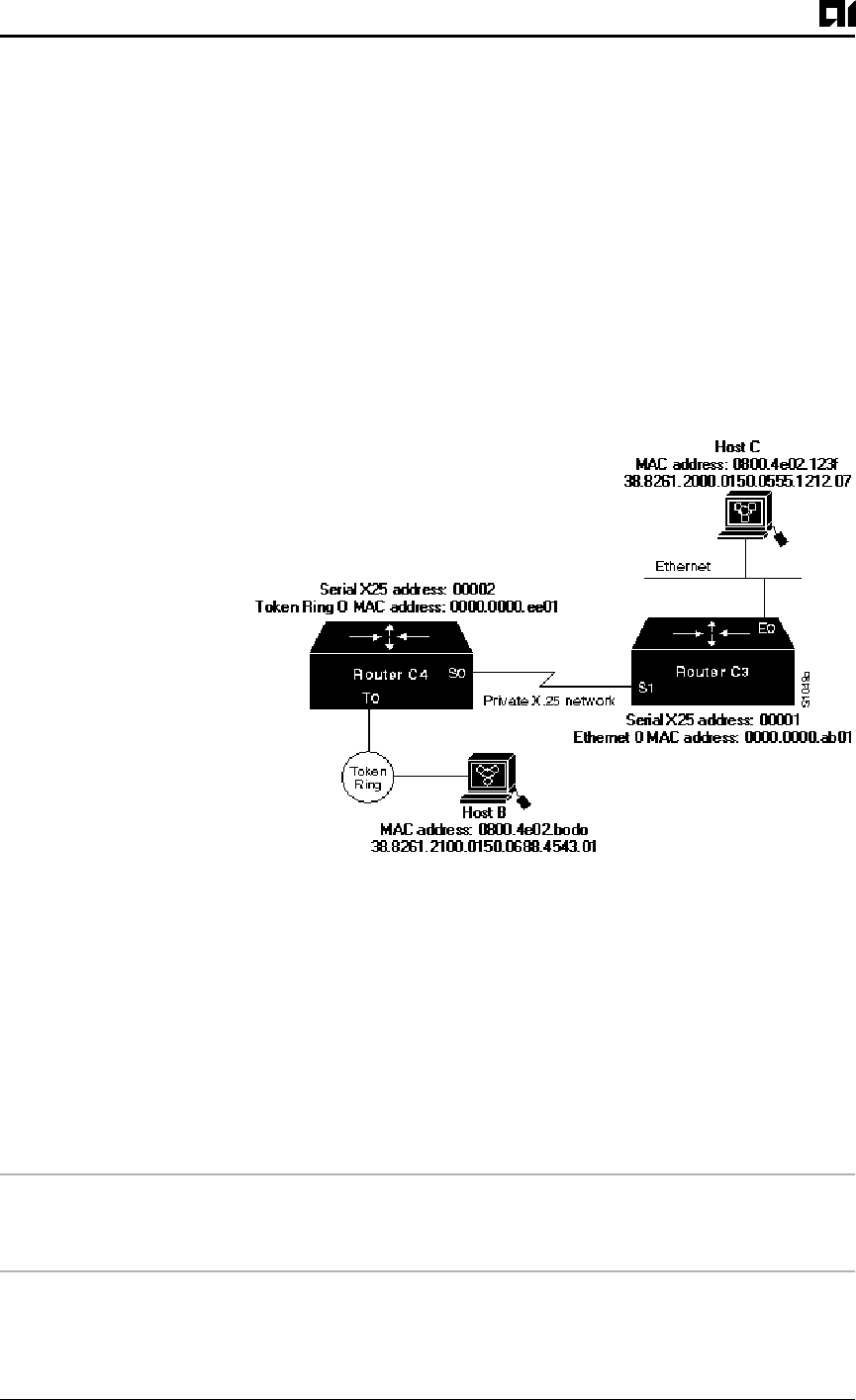

Figure 12-7:Example Network Topology for Switching
CMNS over a Leased Line
A key difference for this configuration compared with the previous ex-
ample is that with no PDN, the specification of an X.121 address in the
x25 map cmns
command is not necessary. The specification of an
X.25 address also is not needed, but is included for symmetry with the
previous example.
Configuration for Router C4
This configuration specifies that any traffic from any other interface
intended for any NSAP address with NSAP 38.8261.21 will be
switched to MAC address 0800.4e02.bcd0 through Token Ring 0.
interface token 0
cmns enable
x25 map cmns 38.8261.21 0800.4e02.bcd0
