Chapter 12: AI2524 X.25 Configuration Steps
August 1997 Page 12-37
2524UM
point C and points A and B are tunneled. Keepalives are enabled to
maintain connection notification.

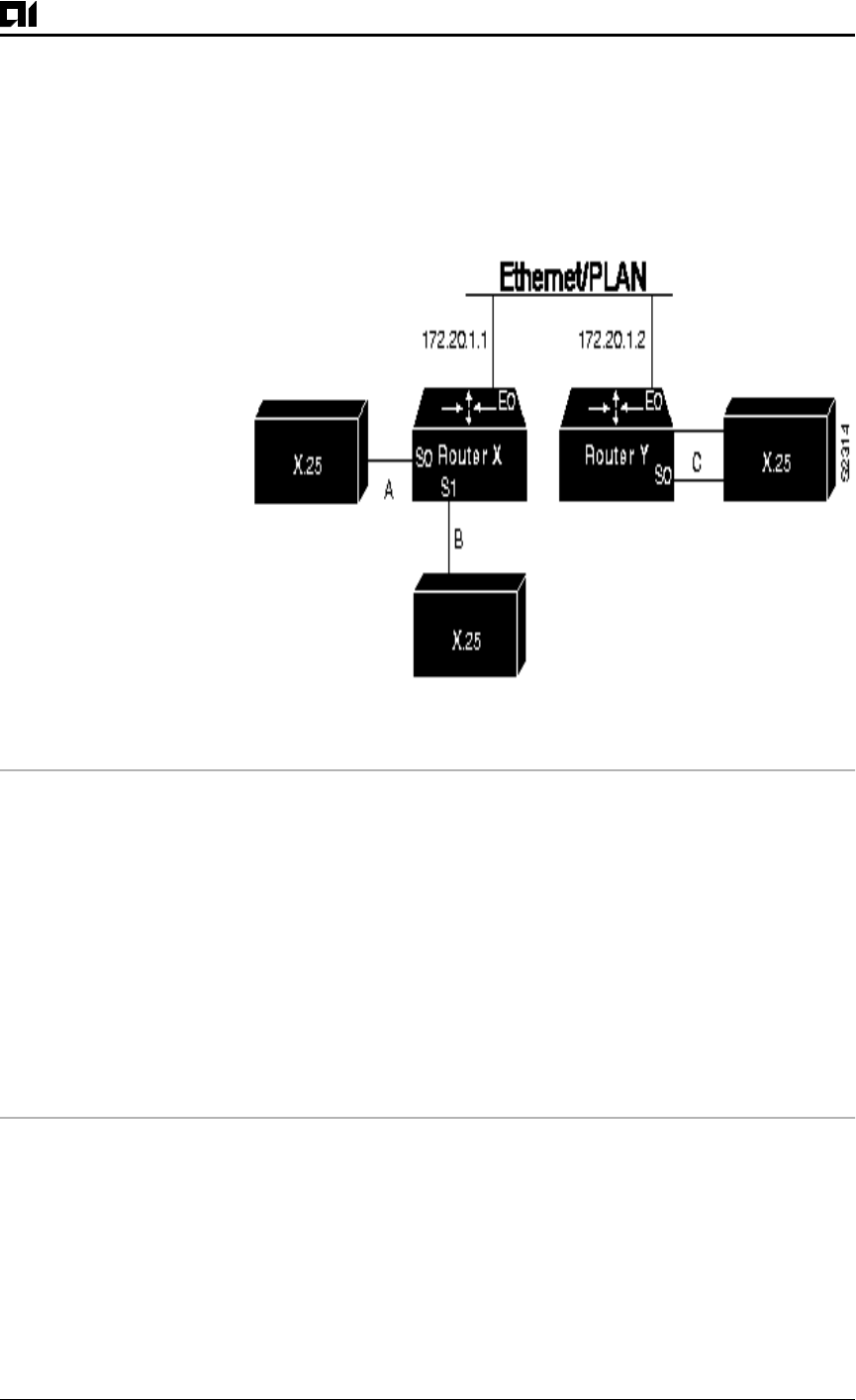

Figure 12-5:Local Switching and Remote Tunneling PVCs
Configuration for Router X
service tcp-keepalives-in
service tcp-keepalives-out
interface ethernet 0
ip address 172.20.1.1 255.255.255.0
!
interface serial 0
x25 ltc 5
x25 pvc 1 interface serial 1 pvc 1
x25 pvc 2 tunnel 172.20.1.2 interface serial 0 pvc 1
!
interface serial 1
x25 ltc 5
x25 pvc 1 interface serial 0 pvc 1
x25 pvc 2 tunnel 172.20.1.2 interface serial 0 pvc 2
