5-7
MPX Plus 866 A Media Presentation Matrix Switcher • Switcher Software
PRELIMINARY
Each processor has a set of associated parameters that define that processor (such
as a frequency curve); those parameters can be accessed and changed by double-
clicking again on the now inserted process block. This action opens a customizable
dialog box, a new window that contains parameters for the process (figure 5-6).

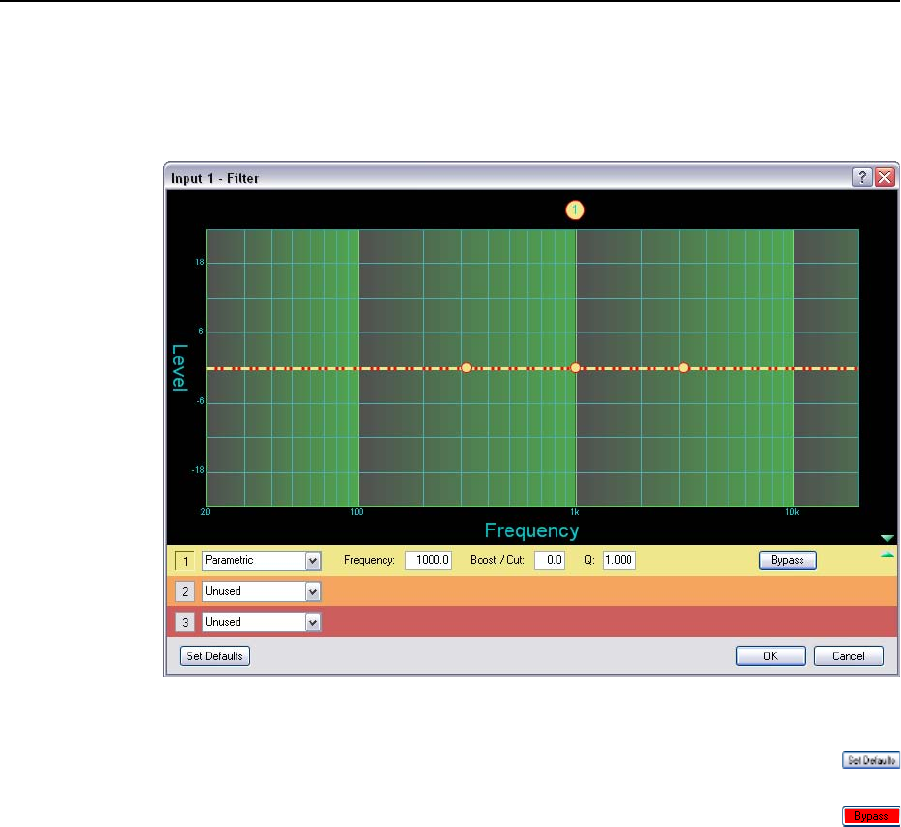

Figure 5-6 — Sample processor dialog box
• TheSet Defaults button lets you discard all custom settings and
reload the factory defaults.
• TheBypass button lets you temporarily suspend the processor
without removing the processor block.
By default, each processor block is automatically bypassed when inserted (the
Bypass button in the processor dialog box is selected), although this can be
changed for each processor block type, see “DSP Configuratotor Tools menu“
and the specific tabs for the processor types. When a processor is bypassed, a red
indicator in the block turns on.
N
Figure 5-6 is a sample of one type of dialog box. The contents and appearance of
each processor are unique to that processor.
The block can be removed from the audio stream by selecting it and depressing the
keyboard Delete key or by right-clicking and selecting Delete.
