MPX Plus 866 A Media Presentation Matrix Switcher • HTML Operation
PRELIMINARY
Video and Audio Settings page
The Video and Audio Settings page provides a way to set the input audio gain
and attenuation, set the output volume, and mute and unmute all video and
audiooutputs,and(foroutputsinthecomputervideogroup)settheRGBdelay
(switching interval). Access the Video and Audio Settings page (figure 6-13) by
clicking the Video & Audio Settings link on the Set and View Ties page.
Refresh
Set and View Ties
Global Presets

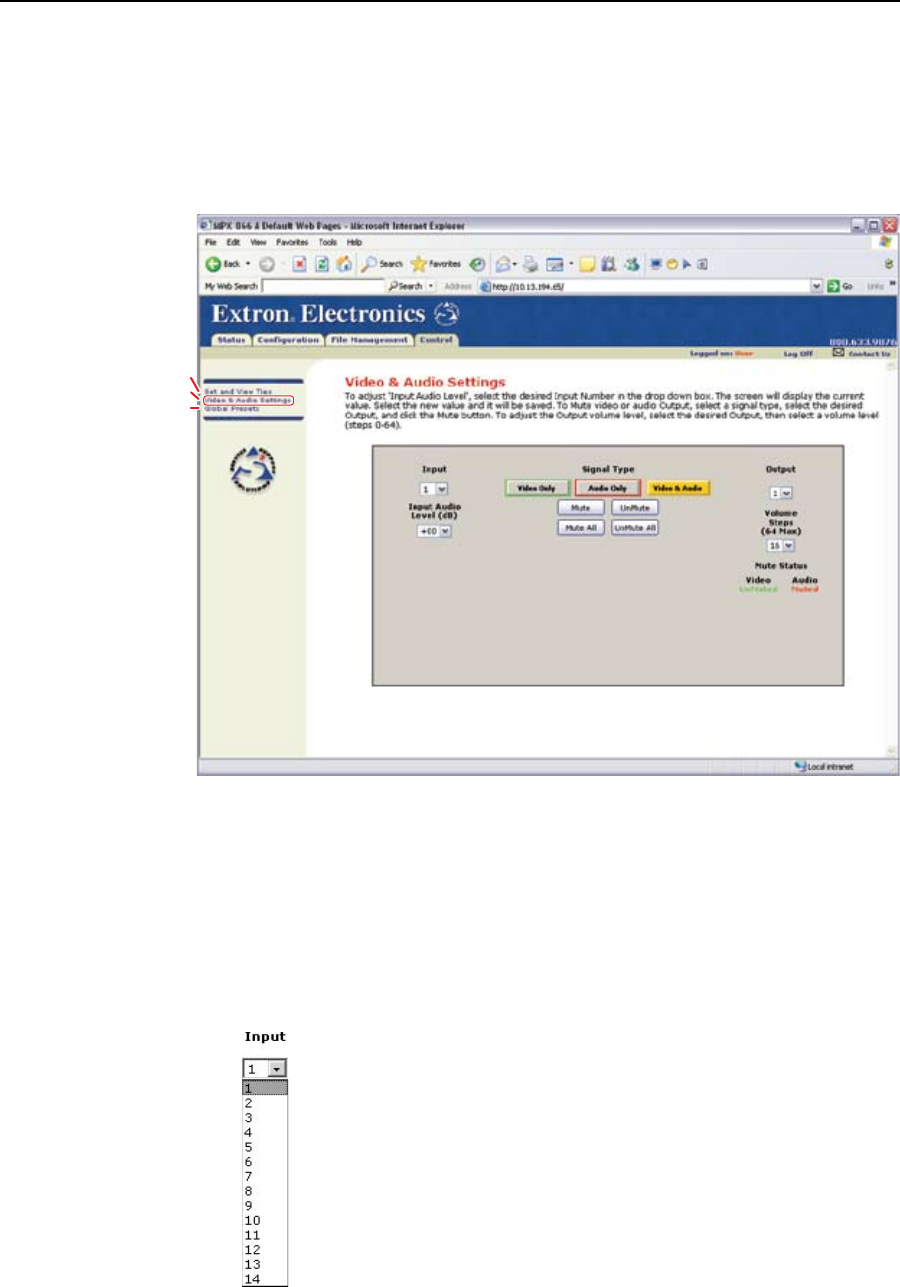

Figure 6-13 — Video and Audio Settings page
Change the input gain and attenuation
Users can set each input’s level of audio gain or attenuation (-18 dB to +24 dB) from
the Video and Audio Settings page. Adjustment ensures there are no noticeable
volume differences between sources.
Change an input’s audio level setting as follows:
1
. Click the Input drop box. A drop-down box appears (figure 6-14).
Figure 6-14 — Input selection drop box
