6-16 Genius Modular Redundancy Flexible Triple Modular Redundant (TMR) System
User’s Manual – March 1995
GFK-0787B
Test Interval
First, configure the interval for autotesting, and a register where this interval should be
stored.

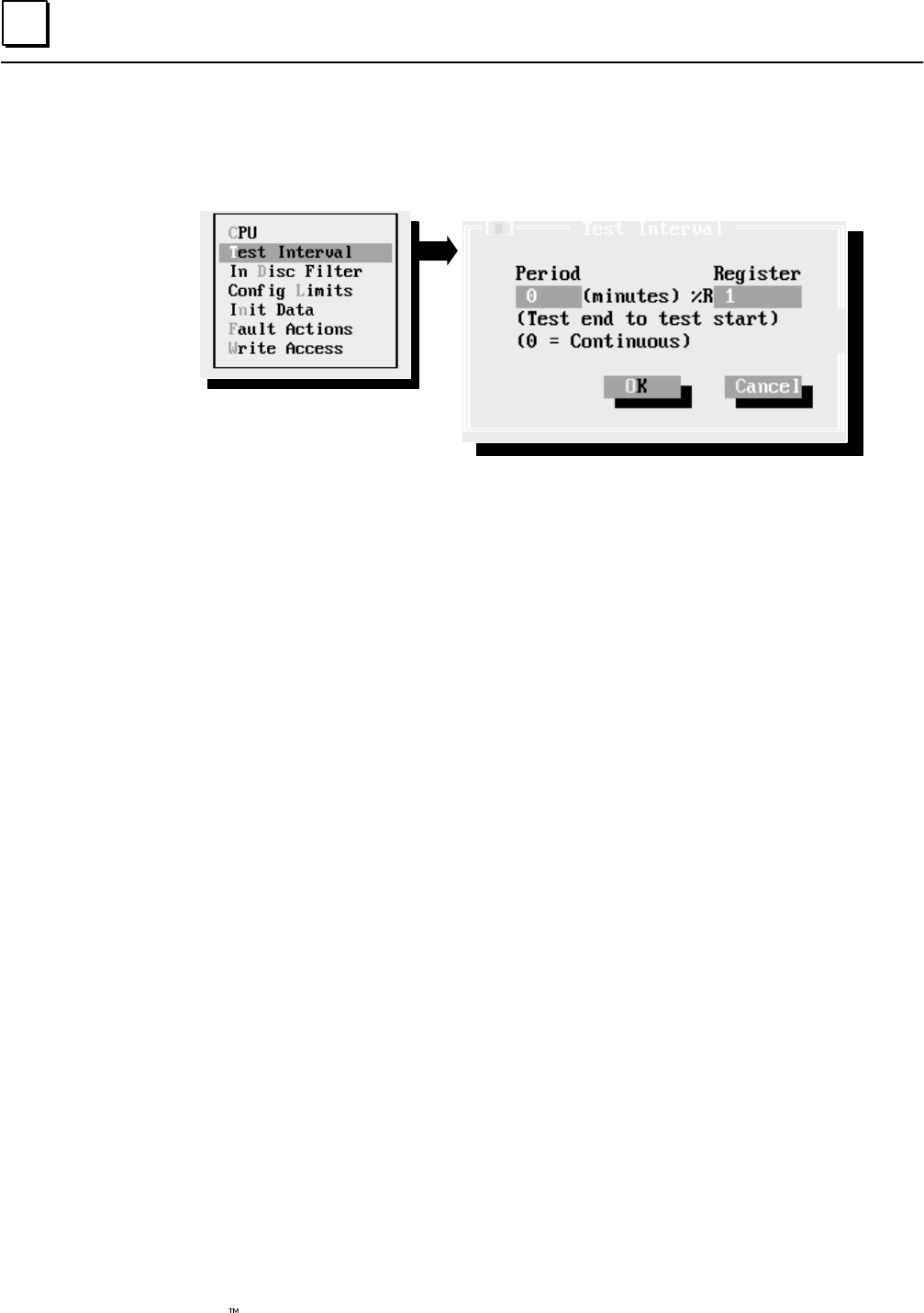

On this screen, enter:
Specify an autotest interval of 1 to 65535 minutes. This becomes the time
interval the system will wait between autotests of the I/O subsystem.
Specify a %R register. When the system is started and goes through
initialization, this register is initialized to the period configured (above).
The GMR system reads this register to determine the autotest interval.
The contents of this register can be modified by the application program
or changed using the Logicmaster programming software to alter the
autotest interval (if desired) without reconfiguring the system.
See the Programming chapter for information about %R memory usage
in a GMR system.
When you have completed this screen, select OK to return to the System screen.
Exiting the Window
When you select OK, your entries are saved and the window disappears. If you want to
exit the window and reset all fields to their previous content, select Close or Cancel instead.
Period
Register
