Figure 20 and Figure 21 show good and poor design practices for via placement on
surface-mount boards.
Figure 22 shows minimum pad-to-pad clearance for surface-mount passive
components and PGA or BGA components.

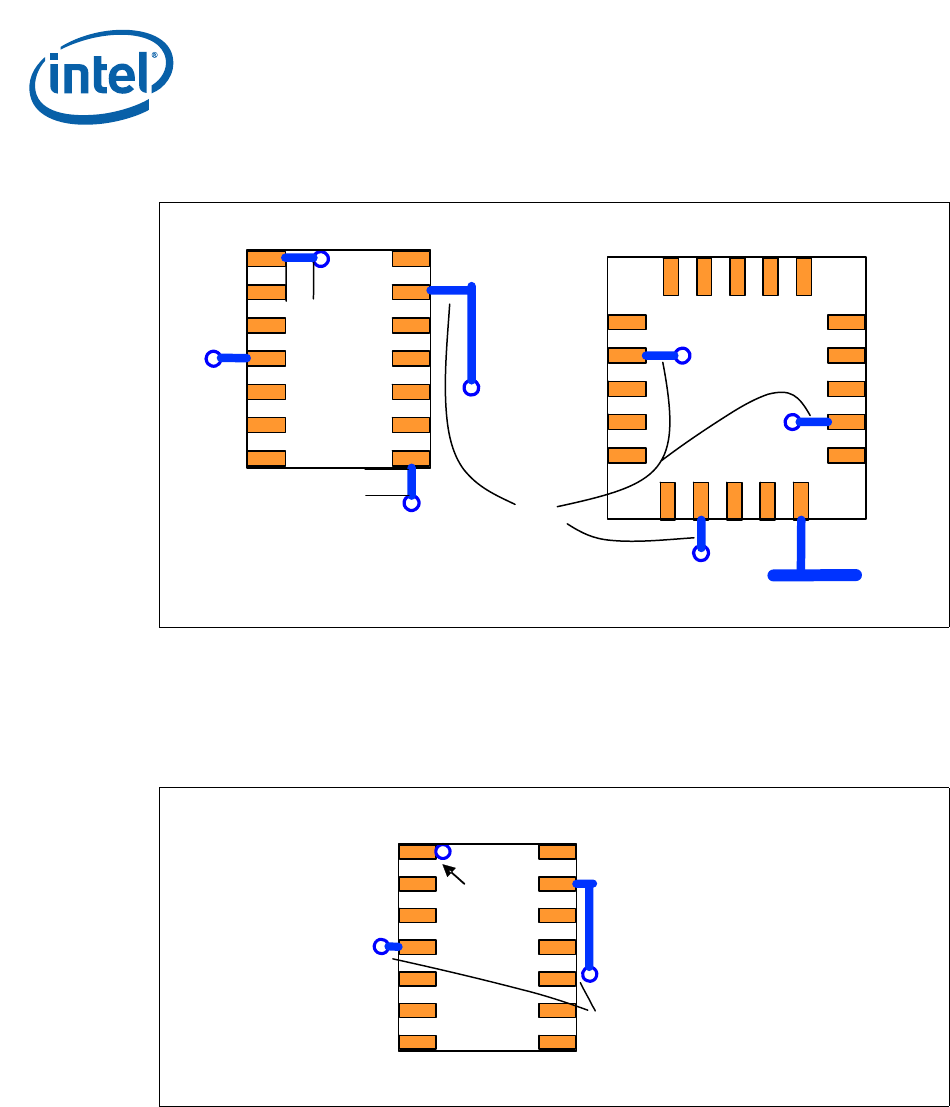

Figure 20. Good Design Practice for VIA Hole Placement
B2266-01
25 mils min
25 mils min
25 mils min
Figure 21. Poor Design Practice for VIA Placement
B2267-01
Flush Via min
Potential Bridge min
