A. Option lens H LENS 0.8-1.0, 2.8-4.5 or 4.5-8.7
A. OPTI ON LENS H LENS 0.8-1.0, 2.8-4.5 OR 4.5-8.7
CAUTION: Lens m ounting must be performed by service personnel.
A.1 Lens mounting procedure
Preparation
Check that the lens shift is at the factory default position (or the lens shift reset position) bef
ore mounting the option lens.
Be sure to turn off the projector and unplug the pow er cord from the wall outlet before mounting the option lens.
When you have any inquiries, contact your dealer.
How to mount

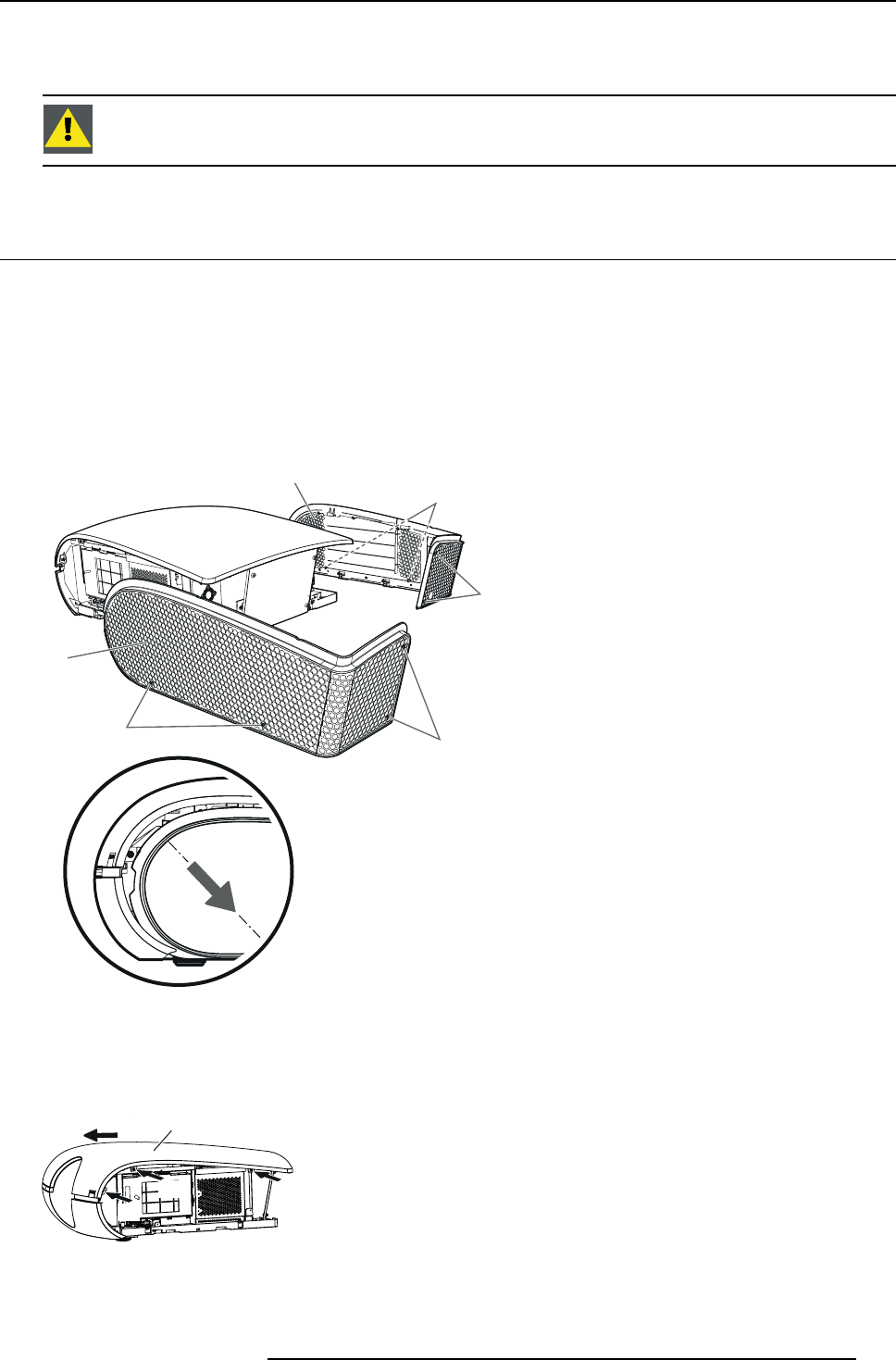

1. Loosen two s crews (a) on the rear and two screws (b) on the side that are securing the side cover (c) using a Phillips screwdriver.
(a)
(b)
(c)
(a)
(b)
(c)
Image A-1
Side cover removal
2. Slide and remove the side cover towards the rear.
3. Remove the six screws (c) sec uring the Top cover. (There are three screws each on the left and right.)
Release the Top cover in the direction of the arrow (d) from the unit.
T
(c)
(c)
(c)
(d)
Image A-2
Top cover removal
T Top cover
4. Release the connector (e) for the zoom/focus motor of the standard lens.
R5905597 PHXX SERIES 28/01/2014
119
