9. Advanced features
A
B
C

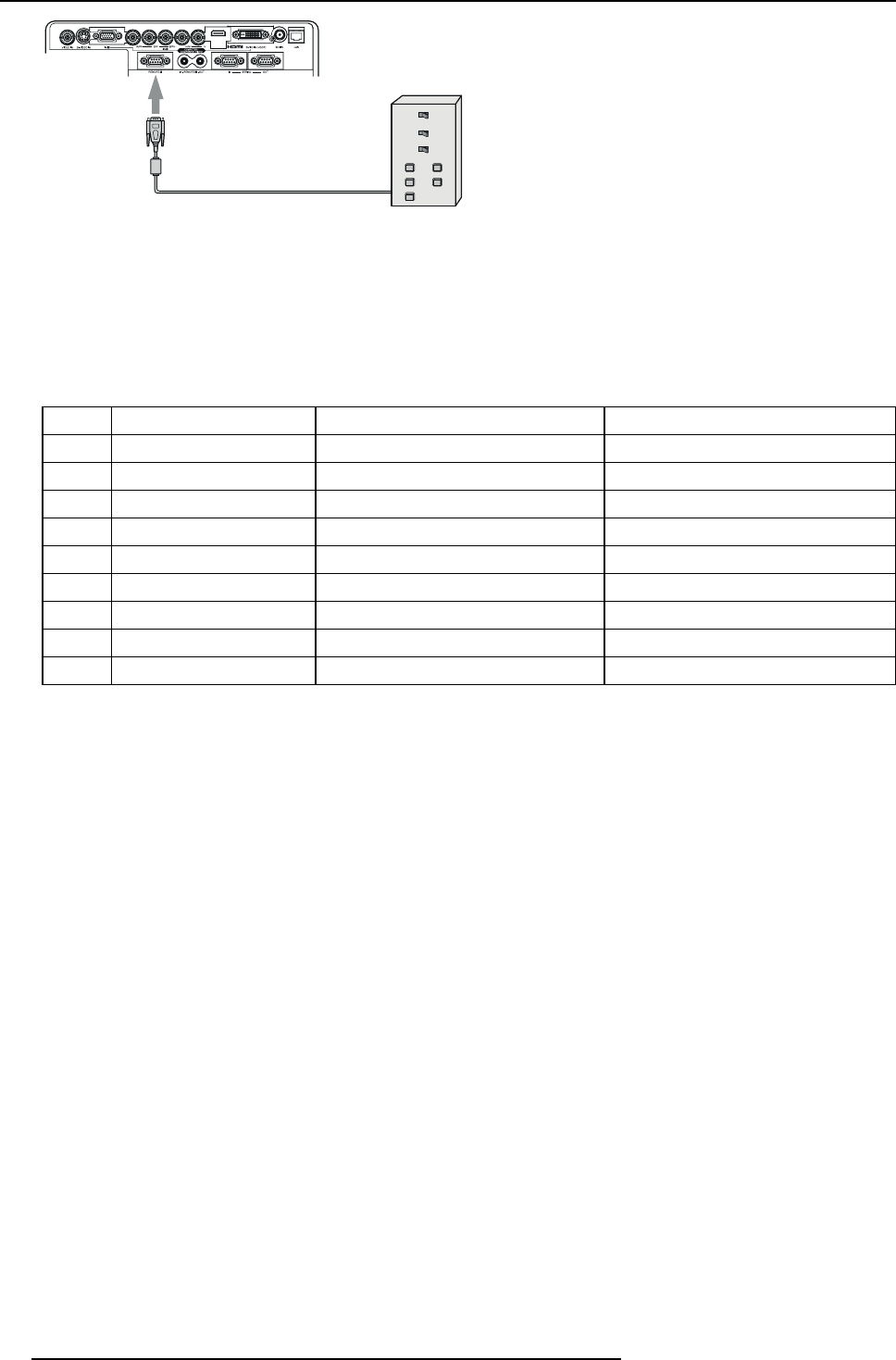

Image 9-9
AToREMOTE1IN
B RS-232C cable (option)
C Control panel
1. Connect one end of an RS-232C cable to the REMOTE 1 IN terminal on the projector.
2. Connect the other end of the RS-232C cable to the c ontrol panel.
Pin functions (defaults)
Connect the other end of the RS-232C cable to the control panel.
Pin No.
Signal Open (H) Short (L)
1
GND
-
GND
2
POWER OFF ON
3 Input
-
COMPUTER1
4 Input
-
COMPUTER2
5
Input
-
VIDEO
6 Input
-
S-VIDE O
7
Input
-
DVI
8BLANK
OFF ON
9
ON/OFF Valid (Rem ote control) Invalid (External contact control)
→ You can change the functions of PIN 2 to P IN 8 using REM O TE 1 MODE in the INSTALLATION 2 menu.
Important:
To reset the pin functions to the defaults, set REMOTE 1 MODE in the INSTALLATION 2 to RESET.
Contact control
By short-circuiting Pin No. 1 and Pin No. 9, y ou can control the projector us ing a control panel or other device.
When you short-circuit Pin No. 1 and P in No. 9, the following functions cannot be used:
• POWER and BLANK of the remote control and the projector
• RS-232C commands and network functions co rresponding to the above-mentioned functions
• REMOT E 1 MODE, AUTO POWE R ON and AUTO POWER OF F in the INSTALLATION 2 menu.
• STA NDBY M OD E in the INSTALLATION 1 menu.
Input switching control
By short-circuiting any of Pin No . 3 to Pin No. 7, you can switch the input using a control panel or other device.
When short-circuiting any of Pin No. 3 to Pin No. 7, you ca nnot use the following functions.
• POWER, BLANK, COM PUTE R 1, COMPUT ER 2, VIDEO, S-VIDEO, DVI, HDMI, and SDI (for PHWU-81B only) of the remote
control and the projector
• RS-232C commands and network functions co rresponding to the above-mentioned functions
POWER control
By short-circuiting or open-circuiting Pin No. 2, you can turn on or off the pow er using a control panel or other device.
BLANK co ntro l
By short-circuiting or open-circuiting Pin No. 8, you can turn on or off the BLANK function using a control panel or other device.
92
R5905597 PHXX SERIES 28/01/2014
