5. Advanced menu
5.8 SIGNAL menu
Overview
0
0
0
0
1024 x 768
60.00 Hz
48.36 KHz
1024
768
1
0
0
0
0
1
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
100%
COMPUTER INPUT
AUTO
OVER SCAN
HOLD
USER
FINE SYNC.
VERT. POSITION
MEMORY CALL
RESOLUTION
(MEMORIZE )
AUTO
HORIZ. POSITION
TRACKING
ENTER
ON
ASPECT
NORMAL
SIGNAL MEMORY
MEMORIZE
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
LPF
USER
OFF
SHUTTER(L)
SHUTTER(LS)
SHUTTER(RS)
VERT. SYNC. AUTO
CLAMP WIDTH
SHUTTER(U)
CLAMP POSITION
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
RESOLUTION (MEMORIZE)
VERTICAL
FREQUENCY
HORIZONTAL
FREQUENCY
HORIZ. PIXELS
VERT. LINES
EXECUTE
CANCEL
OK
OK

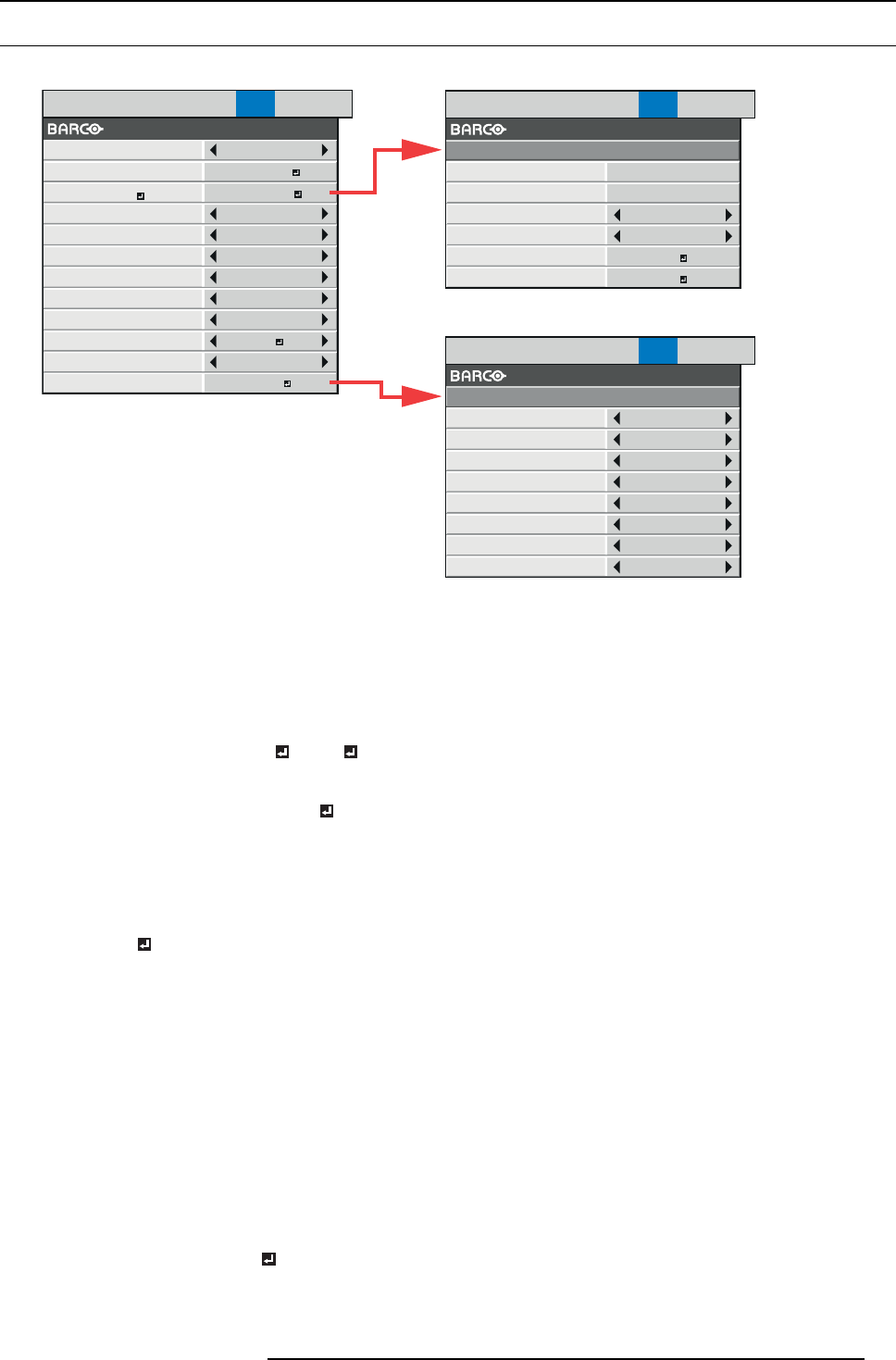

Image 5-18
Item Setting Function
MEMORY CALL Use to select the setting of SIGNAL MEMORY already saved.
Impossible to s elect if no setting has been saved.
AUTO AUTO is selected by default. It optimizes the signal format
automatically depending on the type of video signal supplied from
the computer.
1-xxx
-8-xxx
Use to select the SIGNAL MEMORY alrea dy saved. The memory
number relevant to the input signal is displayed. Pr ess the EN TER
key to clear the setting already saved.
SIGNAL MEMORY
MEMORIZE
The settings in the SIGNAL m enu can be saved. (See page 48.) Up
to 8 settings can be saved. You can select the memory number. For
example, when yo u save the signal s etting of 720p50 to the memory
1, the memory name is displayed as 1-720p50.
When the s ettings are already memor ized in the selected nu mber,
the settings will be overwrit
ten.
RESOLUTION
(MEMORIZE
)
The current resolution is displayed. To change the current s etting,
press the ENTER key to display the RESOLUTION (MEMORIZ E)
menu. The new setting c an be
saved to M EMORY.
VERTICAL FREQUENCY
-
The vertical frequency of the currently projected video signal is
displayed.
HORIZONTA L
FREQUENCY
-
The horizontal frequency of the currently projected video s ignal is
displayed.
HORIZ. PIXELS
640-1920
The number of horiz ontal pixels of the currently projected video signal
is d isplayed. Whe
n you change the current setting, select EXECUTE,
and then press the ENT E R key, the image is automatically adjusted
according to the resolution you set. The adjustment result can be
savedtoMEMOR
Y
VERT. LINES
350-1200
The number of ve rtical lines of the currently projected video signal is
displayed. W
hen you change the current setting, select E XECUT E,
and then press the ENT E R key, the image is automatically adjusted
according to the resolution you set. The adjustment result can be
savedtoM
EMORY
EXEC U TE
OK
Press the ENTER key to start the automatic adjustment. At the
completion o f the automatic adjustment, a message is displayed and
you ca
n save the adjustmen t result to M EM ORY.
R5905597 PHXX SERIES 28/01/2014
49
