10. Lamp replacement
(e)
(d)
Image 10-4

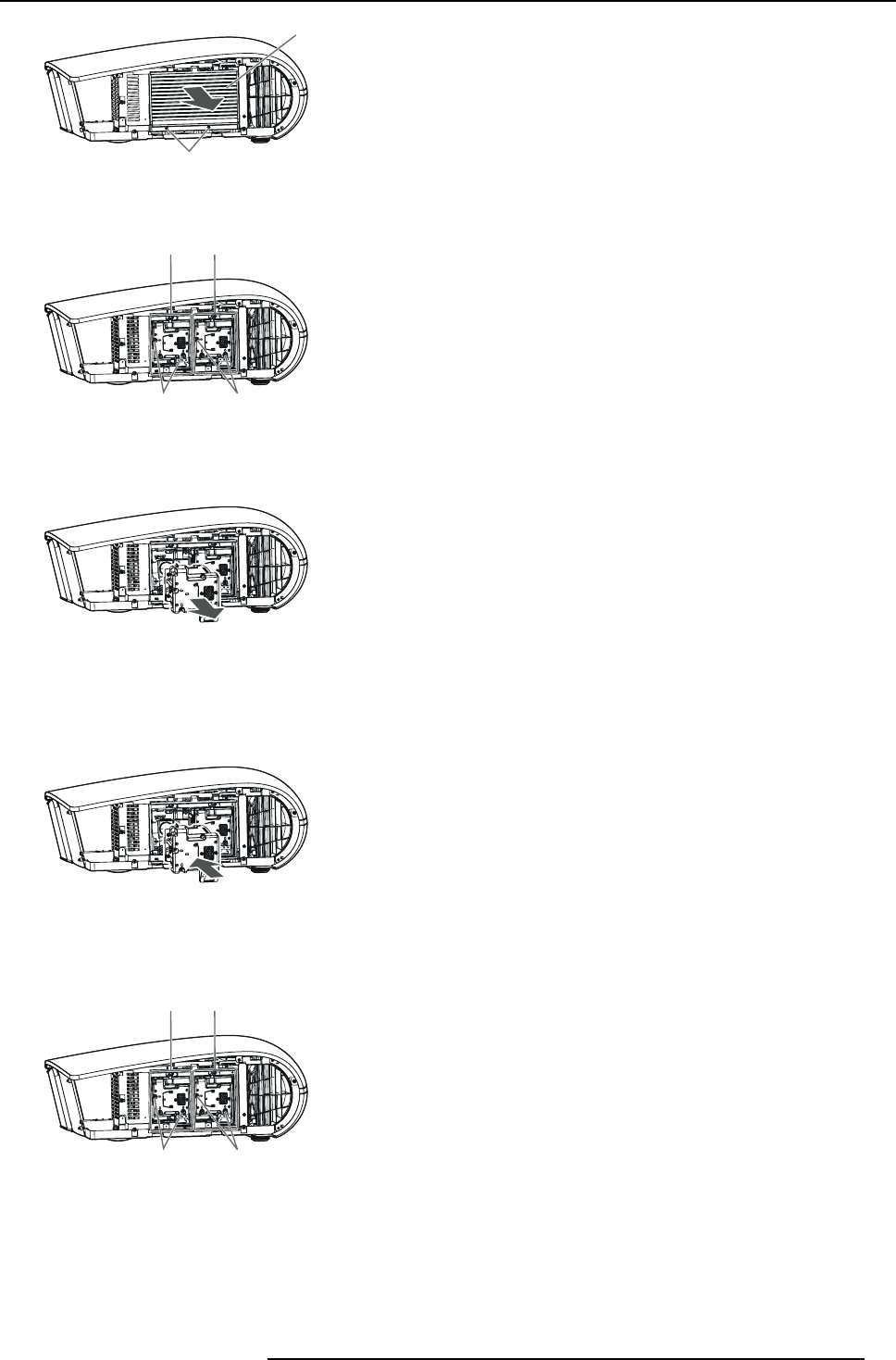

5. Loosen two screws (f) that are securing the lam p box to be removed using a Phillips sc rewdriver.
21
(f)
(f)
Image 10-5
6. Pull the handle.
7. Pull out t he lamp box by the handle w hile holding the projector.
Image 10-6
- P ull the lamp box out of the projector slowly. When th e lamp is broken, glass fragments may be scattering by quickly pulling
out the lamp box.
- Do not spill liquid on the removed lamp box or do not place it near any flamm able object or where children can reach to prevent
injury or fire.
8. Load a new lamp box securely into the projector in the right orientation.
Image 10-7
9. Put the handle back to the original position.
Note: Make sure that the handle is locked.
10.Tighten two screws (f) of the new lamp box tightly using a Phillips screwdriver.
21
(f)
(f)
Image 10-8
Note: Make sure that the screws are tightened firmly.
11.Inser t the lamp cover (e) into the projector and tighten two screws (d) o n the lamp cover firmly using a P hillips s crewdriver.
