9. Advanced features
Command
Description
Remark (Parameter)
LAMP?
Inquiry about the lamp state
1st value (1 to 5 digits): Cumulative LAMP 1 operating time (This item
shows a lamp operating time (hour) calculated base d on that LAMP
MODE is STANDARD.)
2nd value: 0 = Lamp off, 1 = Lamp on
3rd value (1 to 5 digits): Cumulative LAMP 2 operating time (This item
shows a lamp operating time (hour) calculated base d on that LAMP
MODE is STANDARD.)
4th value: 0 = Lamp off, 1 = Lamp on
INST?
Inquiry about the available
inputs
The following value is returned. “11 12 21 22 31 32 33”
NAME? Inquiry about the projector
name
The pro jector name set on the NETWORK menu is returned.
INF1? Inquiry about the manufacturer
name
“BARCO” is returned.
INF2?
Inquiry about the m odel nam e
“PHWU-81B”, “PHWX-81B”, or “PHXG-91B” is returned.
INF0? Inquiry about other information No other information is available. No parameter is returned.
CLSS?
Inquiry about the class
information
“1” is returned.
This projector is fully c ompliant to the specifications of J BM IA P JLink™ Class 1. It supports all the command s defined by PJLink™
Class 1, and the compliance has been verified with the PJLink™ standard specifications Version 1.0.
9.5 Monitoring and control using SERIAL terminal
Overview
Using the SE RIAL terminal, you can monitor and control multiple pr ojectors collectively or individually.
For details, contact your dealer.
B
C D
D
D
AA
A
C
C

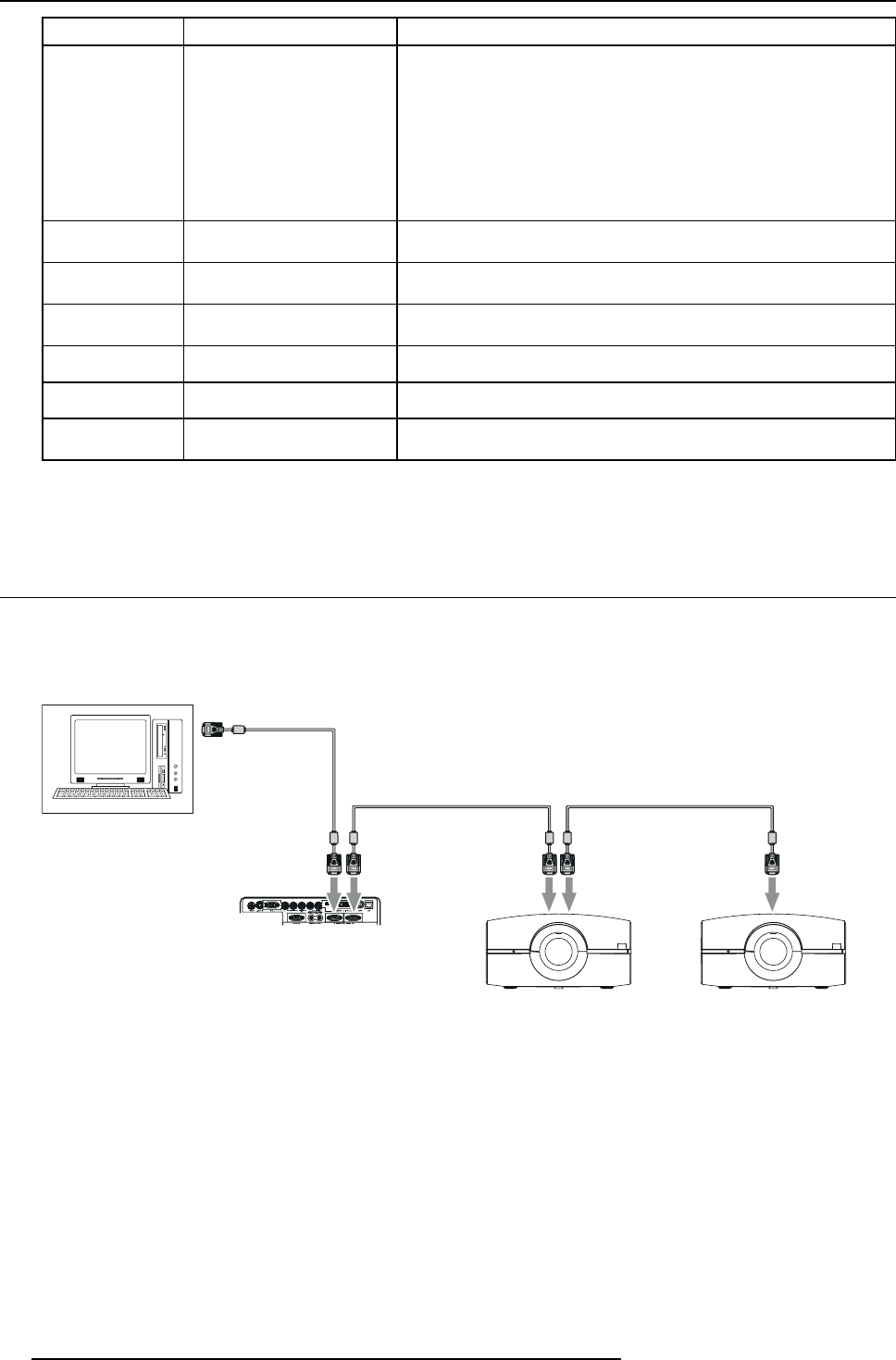

Image 9-7
A RS-232C cable (option)
B To RS-232C terminal
C ToSERIALIN
D ToSERIALOUT
See also the instruction manuals of the devices to be connected.
Connection
Make sure that the power supplies of the projector and the computer are off.
1. Connect one end of a commercially available RS-232C cable to the SERIAL IN terminal on the projector to be connected to the
computer.
2. Connect the other end of the RS-232C cable to the serial port on the computer.
3. Connect one end of an RS -232C cable to the SERIAL OUT terminal on the projector that is connected t o the computer.
4. Connect the other end of the R S-232C cable to the SERIAL IN terminal on the second projector.
For the connection of the second and later projectors, connect their SERIAL OUT terminals and the SERIAL IN terminals using
RS-232C cables.
