3. Connections
3. CONNECTIONS
Preparations
To get a ccess to the connections, the covers of the projector must be removed.
CAUTION: Only authorized service perso nnel are allowed to remove the covers.
3.1 Removing the covers
WARNING: Make sure that the power of the projector is turned o ff.
Removingthesidecover
1. Loosen two s crews (a) on the rear and two screws (b) on the side that are securing the side cover (c) using a Phillips screwdriver.
(a)
(b)
(c)
(a)
(b)
(c)

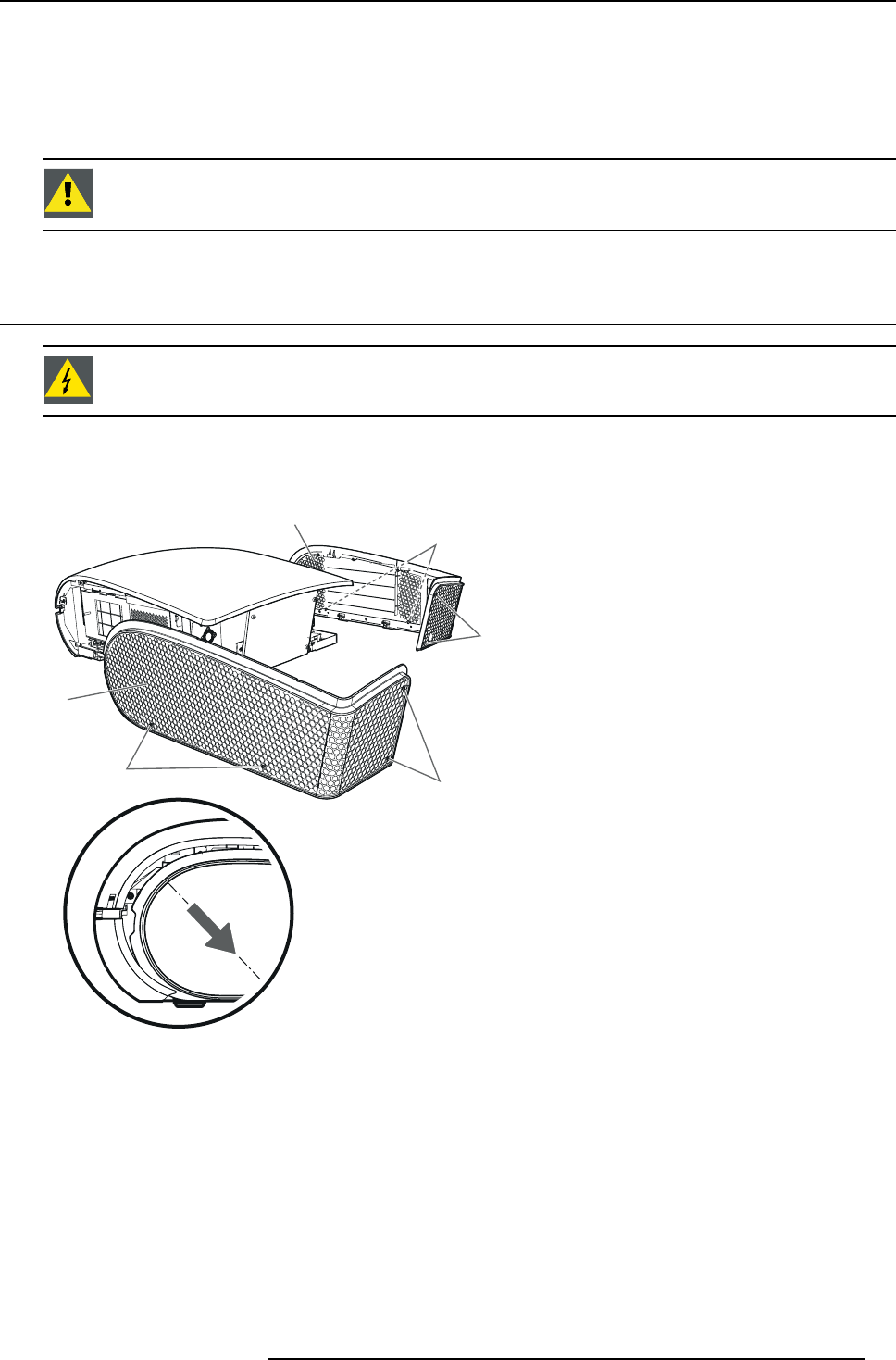

Image 3-1
Side cover removal
2. Slide and remove the side cove
r towards the rear.
Removing the rear cover
1. Loosen the four screws (d) that are securing the rear cover (e) using a Phillips screwdriver.
R5905597 PHXX SERIES 28/01/2014
21
