2. Preparing the projector
5
HDMI IN terminal (HDM I 19-pin)
6
COMPUTER/COMPO NENT VIDEO DVI-D IN (HDCP) terminal (DVI-D 24-p in)
7
SDI IN terminal (for P HW U-81B only)
8 LAN terminal
9
REMOTE1 IN terminal (D-SUB 9-pin female)
10
SERIAL IN and O UT terminals (D-SUB 9-pin male)
11
REMOT E 2 IN and OUT terminals
Do not use these terminals.
12
Kensington Security Lo ck Standard connector
13 Power jack

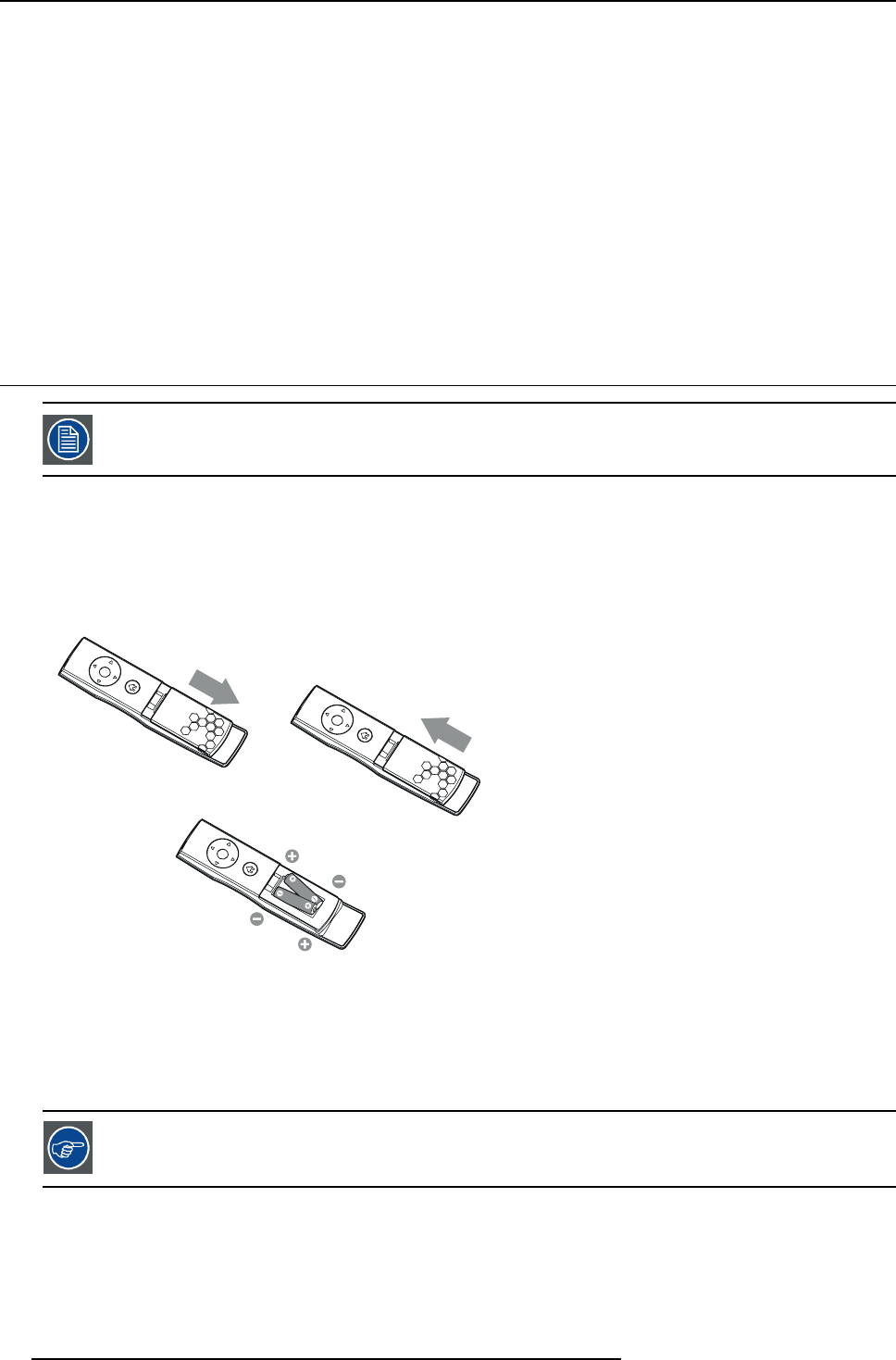

2.3 Installation of the batteries into the remote control
Read carefully the battery safety instructions, see "Important safety instructions", page 6
Necessary parts
Two size-AAA batteries ( R03).
How to insert
1. Slide and remove the rear lid of the remote c ontrol.
1
3
2
Image 2-5
Batteries ins ertion
2. Check the polarity (+), (-) of the batteries, and set them correctly, ins erting their (-) side first.
Note: If the battery is inserted from the (+) side first, inserting the (-) side is difficult because the coil spring end hits on the
battery side. If the battery is forced to insert in this way, the outer label of the battery may get ripped and it may cause a
short-circuit and heating.
3. Attach the rear lid.
Replace the 2 batteries with new ones when the remote control is slow to operate.
Removing the batteries from the
remote control
Slide and remove the b ack lid of the remo te control and take out the batteries.
14
R5905597 PHXX SERIES 28/01/2014
