(10) Writable character set: 43 (32×32 dots)
Nibble mode
1
30H
2
30H
3
30H
4
30H
5
30H
6
30H
7
30H
8
30H
9
30H
10
30H
11
30H
12
37H
•
•
•
•
•
248 30H 249 30H
250 30H 251 30H 252 30H 253 30H 254 30H 255 30H 256 30H
Hex. mode
1
00H
2
00H
3
C0H
4
00H
5
00H
6
07H
7
C0H
•
•
•
•
123 C0H 124 00H
125 00H 126 00H 127 00H 128 00H
[Nibble mode]
(1) The writable character data to be stored is separated into four dot units and sent in the
following order (1
→
256). (High order digit: “3”)
(2) The data of writable characters to be stored is 30H to 3FH.
(3) The data count of writable characters to be stored should be 256 bytes.
[Hex. mode]
(1) The writable character data to be stored is separated into eight dot units and sent in
the following order (1 → 128).
(2) The data of writable characters to be stored is 00H to FFH.
(3) The data count of writable characters to be stored should be 128 bytes.

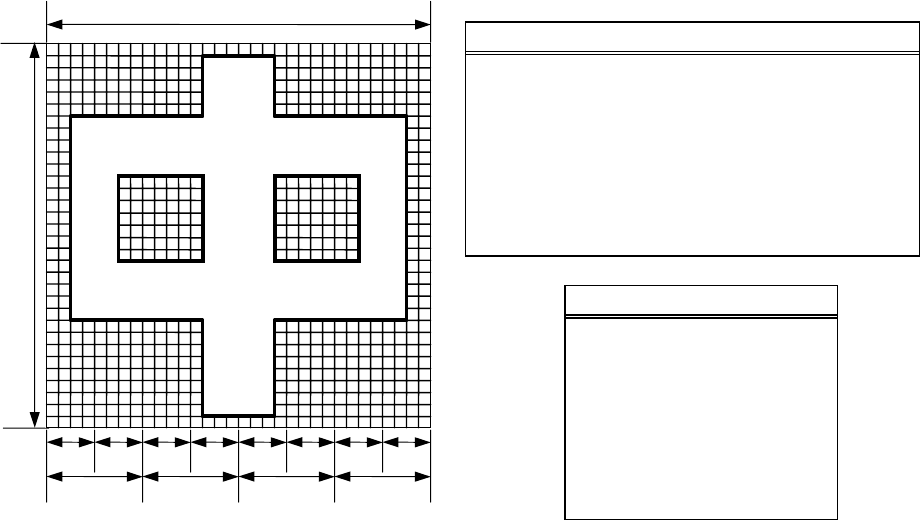

* When writable character 43 is designated, the width and height of the character are both 32
dots.
Character width 32 dots
Character
height
32 dots
444 4 4 4 4 4
8 8 8 8
