DISASSEMBLY AND ASSEMBLY
3.2.6.21 CR (Carriage Encoder) Sensor Removal

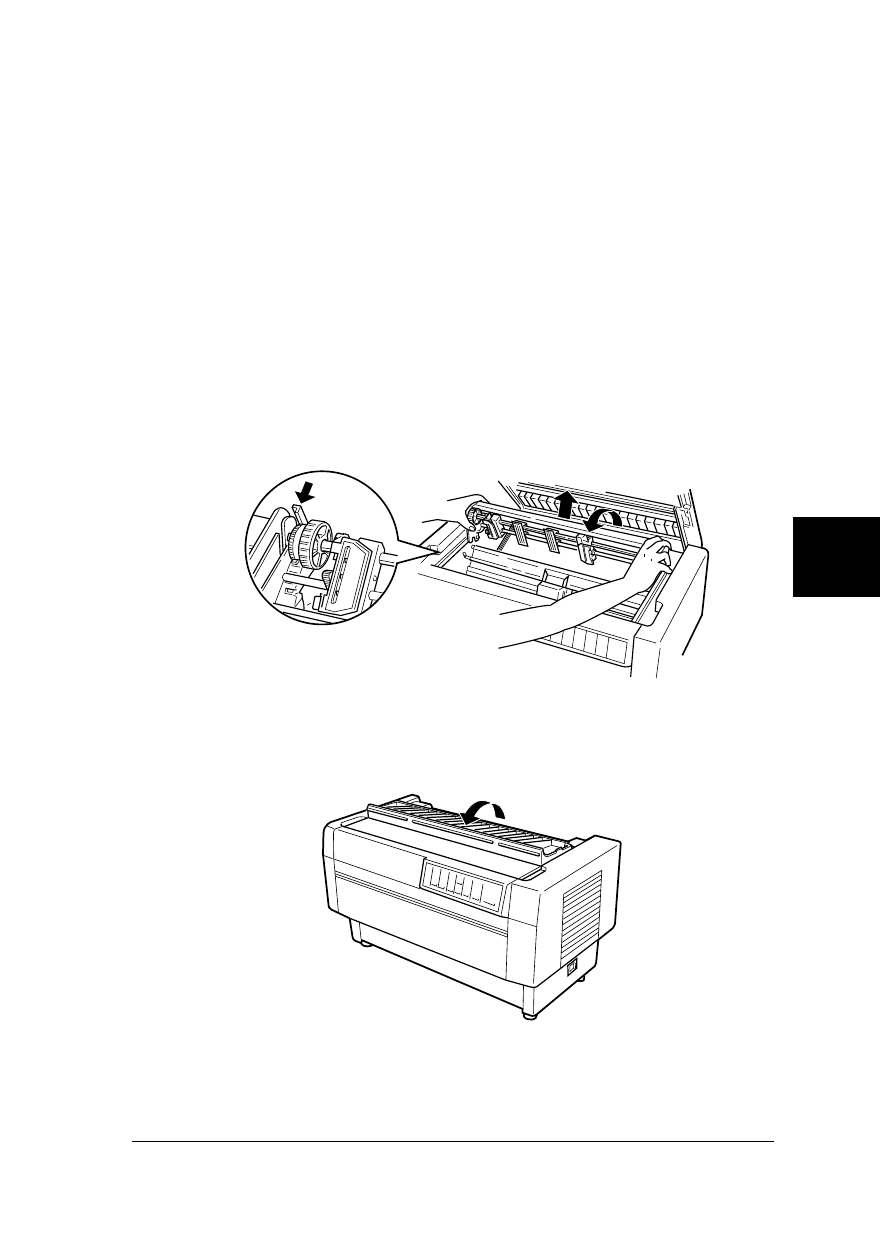

Step 1: Remove the printhead. (Refer to Section 3.2.2.)
Step 2: Disconnect the red 4-pin CR sensor connector from the carriage connector junction board.
Step 3: Remove the two CP(S-Pl) (M2.6 x 5) screws securing the CR sensor to the carriage and remove
the sensor.
‘Carriage Connect01
Junction Board
Figure 3-78. CR Sensor Removal lK?
CP(S-Pl)(M2.6X5)
Carriage Encoder
Sensor
Carriage
Figure 3-79. CR Sensor Removal Z2
Rev. A
355
