ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
2-84
© 2000, ADC Telecommunications, Inc.
DLP-525
Page 4 of 6
7428-B
OR
FF 7F
CHANNEL BLOCKING
IDLE CODE
–130V
LINE POWER

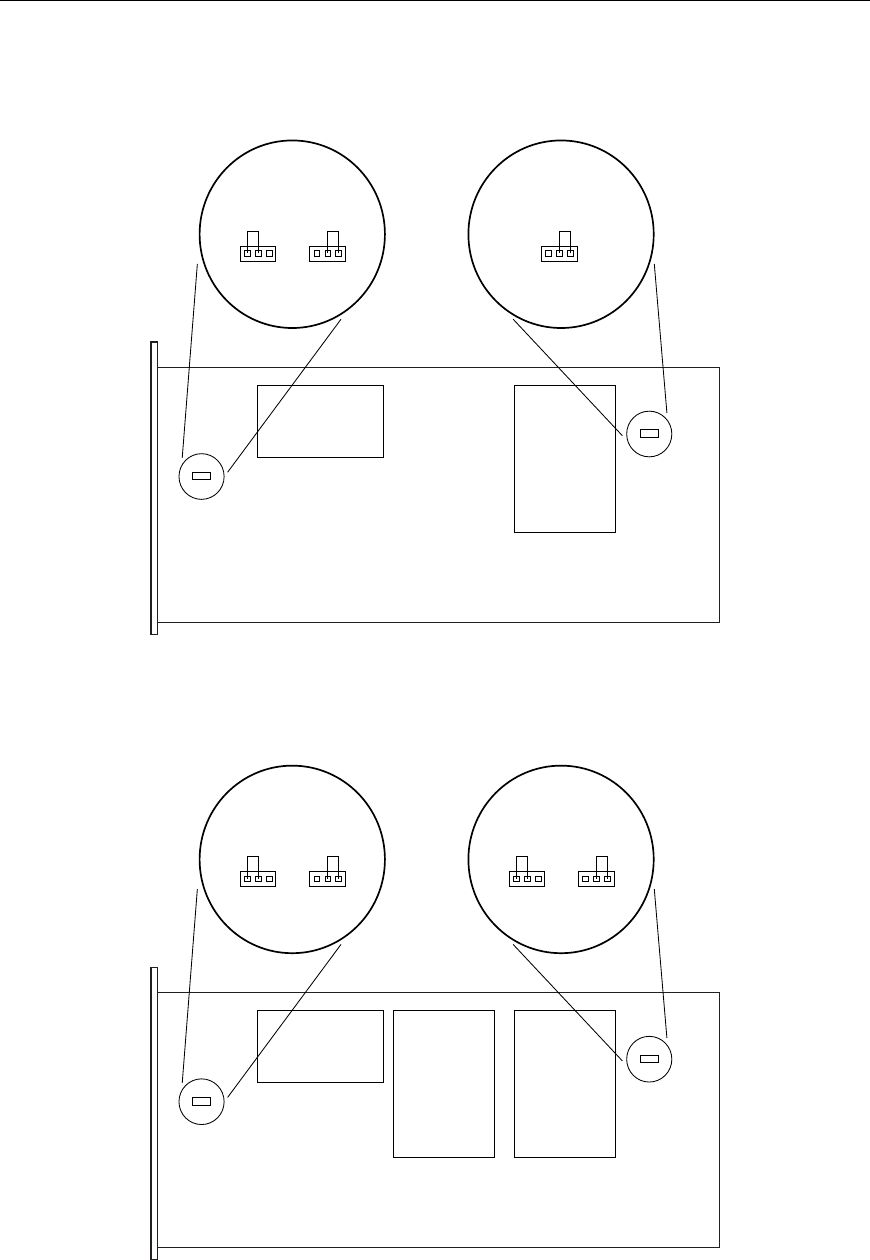

Figure 525-2. Placement of B1 RLX Jumpers
7035-A
OR
FF 7F
CHANNEL BLOCKING
IDLE CODE
OR
±130V –130V
LINE POWER
Figure 525-3. Placement of B2 RLX+ Jumpers
