Configuration
190 AlterPath KVM/net Installation, Administration, and User’s Guide

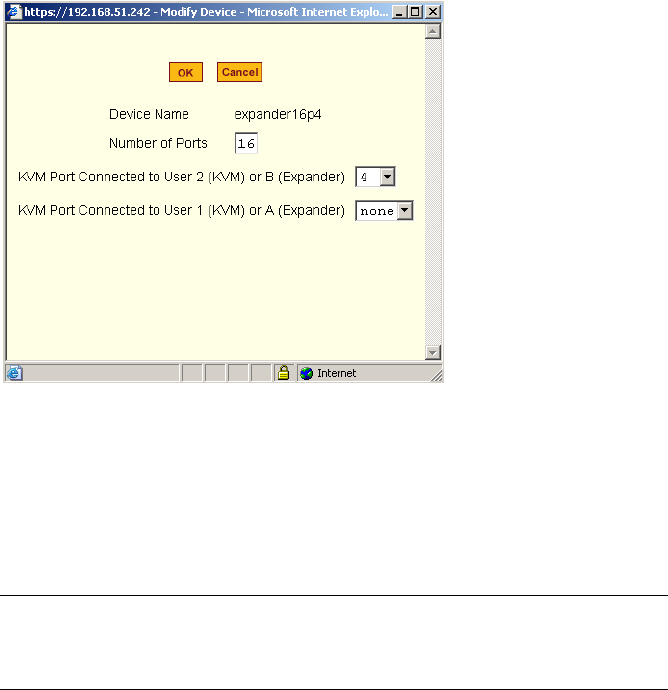

3. In the Number of Ports field, enter the number of ports contained on the
cascaded device.
4. To enable one user to access the ports on the cascaded KVM unit, in the
KVM Port Connected to User 2 (KVM) or B (Expander) drop-down list,
select the port number on the master KVM/net that is connected to the
User 2 port on the secondary KVM device or the B port on the Expander.
Note: See “Connecting Cascaded KVM Units to the Primary KVM/net” on page
126 for a background on the possible devices that can be cascaded and for
instructions on connecting these devices to the master KVM/net.
5. To enable two users to access the ports on the cascaded KVM unit, in the
Port Connected to User 1 or (KVM) or A (Expander) drop-down list, enter
the secondary KVM port that is connected to the User 1 port of the primary
KVM/net or the User A port on the Expander.
6. Click the OK button.
7. Click “apply changes” to save your configuration.
