AMD Geode™ SC3200 Processor Data Book 129
SuperI/O Module
32581C
5.8.2 UART Functionality (SP1 and SP2)
Both SP1 and SP2 provide UART functionality. The generic
SP1 and SP2 support serial data communication with
remote peripheral device or modem using a wired inter-
face. The functional blocks can function as a standard
16450, 16550, or as an Extended UART.
5.8.2.1 UART Mode Register Bank Overview
Four register banks, each containing eight registers, control
UART operation. All registers use the same 8-byte address
space to indicate offsets 00h through 07h. The BSR regis-
ter selects the active bank and is common to all banks. See
Figure 5-18.
5.8.2.2 SP1 and SP2 Register and Bit Maps for UART
Functionality
The tables in this subsection provide register and bit maps
for Banks 0 through 3.

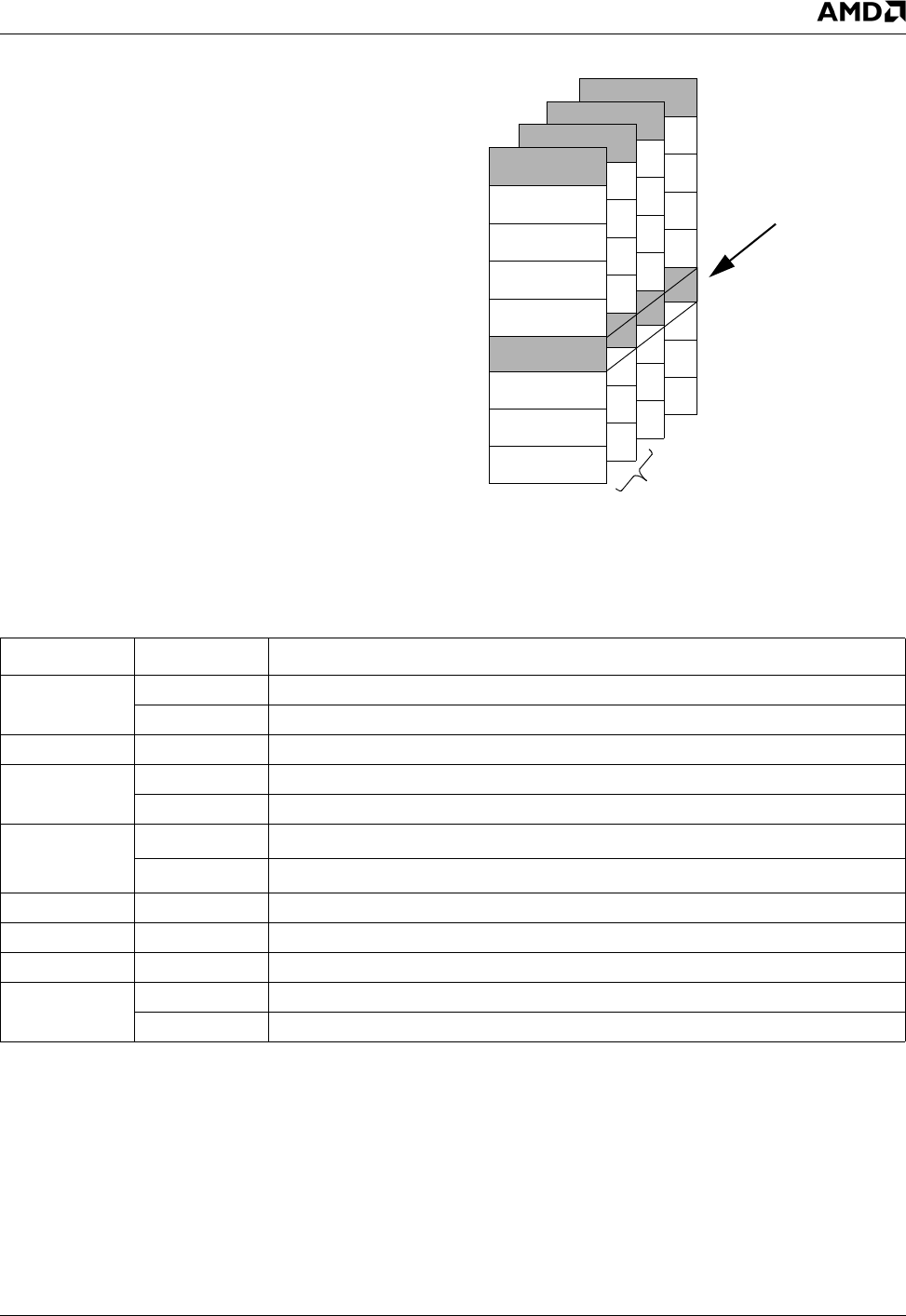

Figure 5-18. UART Mode Register Bank
Architecture
Bank 0
Bank 1
Bank 2
Bank 3
Offset 07h
Offset 06h
Offset 05h
Offset 04h
LCR/BSR
Offset 02h
Offset 01h
Offset 00h
Common
Register
Throughout
All Banks
16550 Banks
Table 5-37. Bank 0 Register Map
Offset Type Name
00h RO RXD. Receiver Data Port
W TXD. Transmitter Data Port
01h R/W IER. Interrupt Enable
02h RO EIR. Event Identification (Read Cycles)
R/W FCR. FIFO Control (Write Cycles)
03h W
LCR
1
. Line Control
R/W
BSR
1
.Bank Select
04h R/W MCR. Modem/Mode Control
05h R/W LSR. Link Status
06h R/W MSR. Modem Status
07h R/W SPR. Scratchpad
R/W ASCR. Auxiliary Status and Control
1. When bit 7 of this register is set to 1, bits [6:0] of BSR select the bank, as shown in Table 5-38.
