McDATA UltraNet Edge 3000 User Guide
Replacing the Gigabit Ethernet Short Wave Transceiver
Removing the Gig-E
Short Wave SFP
Transceiver
Use the removal procedure below that corresponds with the type of
transceiver you are removing.

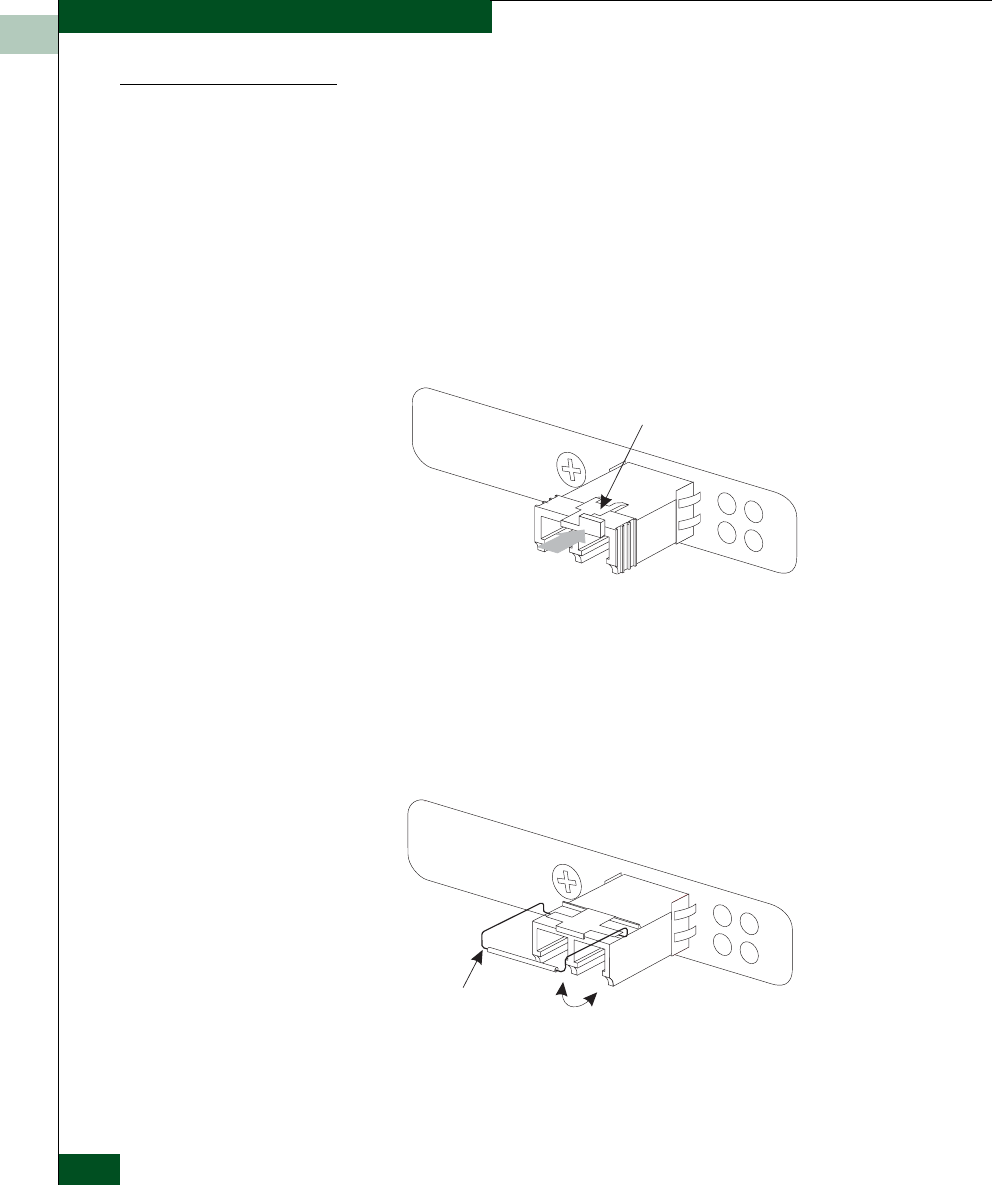

Removing the Black
Metal Clasp
Transceiver
1. Remove the fiber optic cabling from the transceiver.
2. Gently push the red release tab towards the interface card to
release the transceiver. To avoid breaking the release tab, be
careful to push it straight in.
3. Pull the transceiver out of the interface card.
Removing the Black
Metal Clasp
Transceiver
1. Remove the fiber optic cabling from the transceiver.
2. Pull the black metal clasp up and gently pull the transceiver to
release it from the interface card.
3. Pull the transceiver out of the interface card.
Removing the Plain
Metal Clasp
Transceiver
1. Remove the fiber optic cabling from the transceiver.
2. Pull the metal clasp up and gently pull the transceiver to release it
from the interface card.
Sb056
Release Tab
Sb054
Metal Clasp
