McDATA UltraNet Edge 3000 User Guide
Network Design

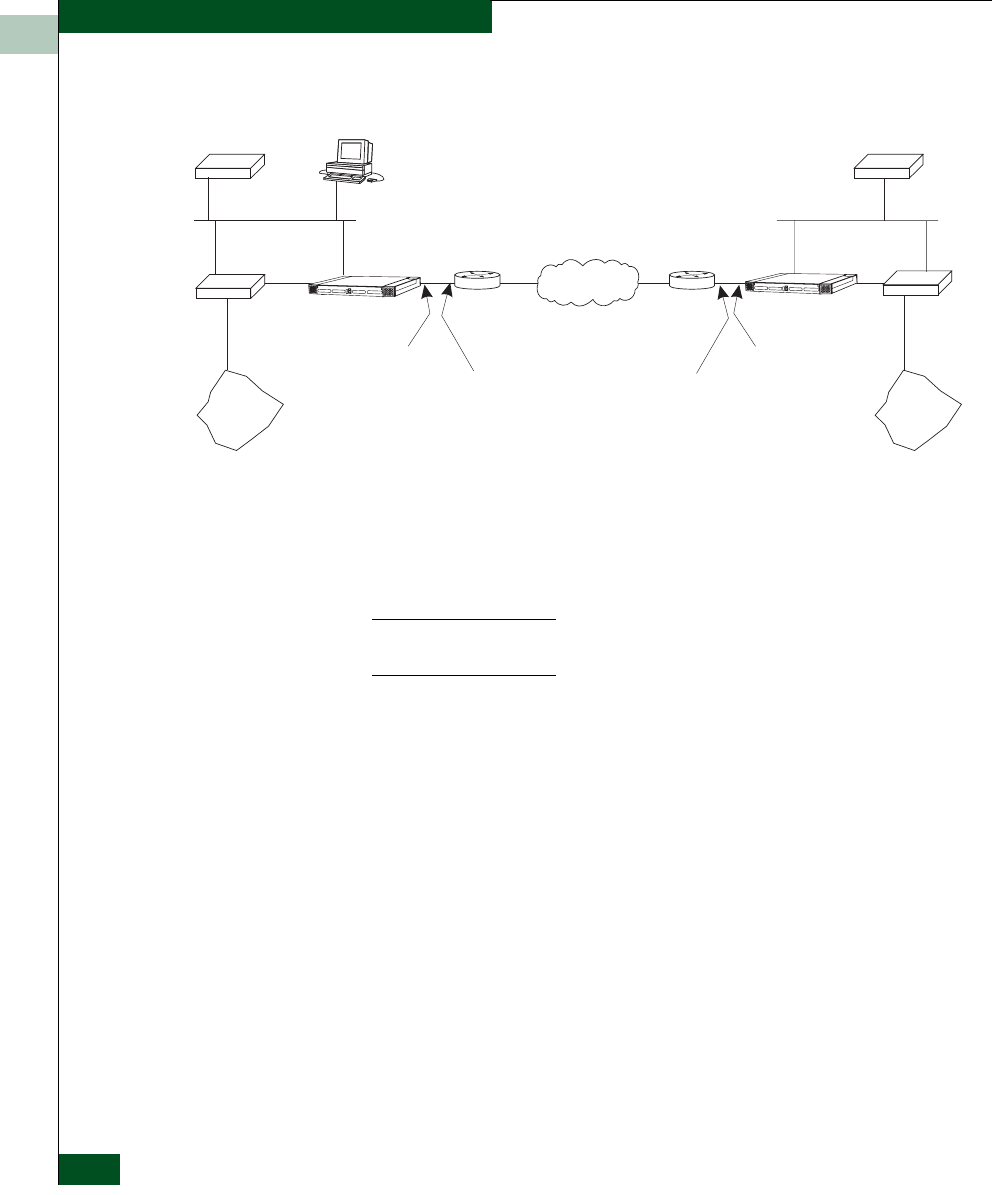

Figure 3-1 Example Ethernet WAN with two UltraNet Edge 3000s
When designing your network for an Ethernet WAN using the
UltraNet Edge 3000, gather the following information for both the
local and remote nodes:
NOTE: Refer to the UltraNet Edge Storage Router Configuration IP Address
Worksheet in Appendix J for help gathering the IP addresses.
• Host IP addresses (Ethernet maintenance interface and Ethernet
WAN interface)
• Subnet information
• Default Gateway IP host address on the Ethernet maintenance
interface and Ethernet WAN interface
•Static route information:
— IP host address of the natively attached routers or switches
• SNMP information
— System name and contact information
— Community names
— Trap Destinations
Router
1
IPCloud
Maintenance IP
Fibre
Channel
Switch 1
Fabric Fabric
Default
Gateway 1
Personal
Computer 1
192.168.10.3/24
192.168.10.5/24
192.168.10.1/24192.168.10.2/24
192.168.100.1/24
192.168.100.4/24
192.168.200.1/24
192.168.200.4/24
UltraNet
Edge 10
UltraNet
Edge 20
Default
Gateway 2
IP
FC
Maintenance IP
Fibre
Channel
Switch 2
Router
2
192.168.20.1/24
192.168.20.2/24
192.168.20.3/24
FC
IP
FC
FC
