VG-Series Modero Touch Panels
Protected Setup Navigation Buttons
The Protected Setup Navigation Buttons (FIG. 116) appear on the left of the panel screen when the
Protected Setup page is currently active.
These Navigation Buttons are specific to these Modero panels and include the panel specific elements
described in the following table:

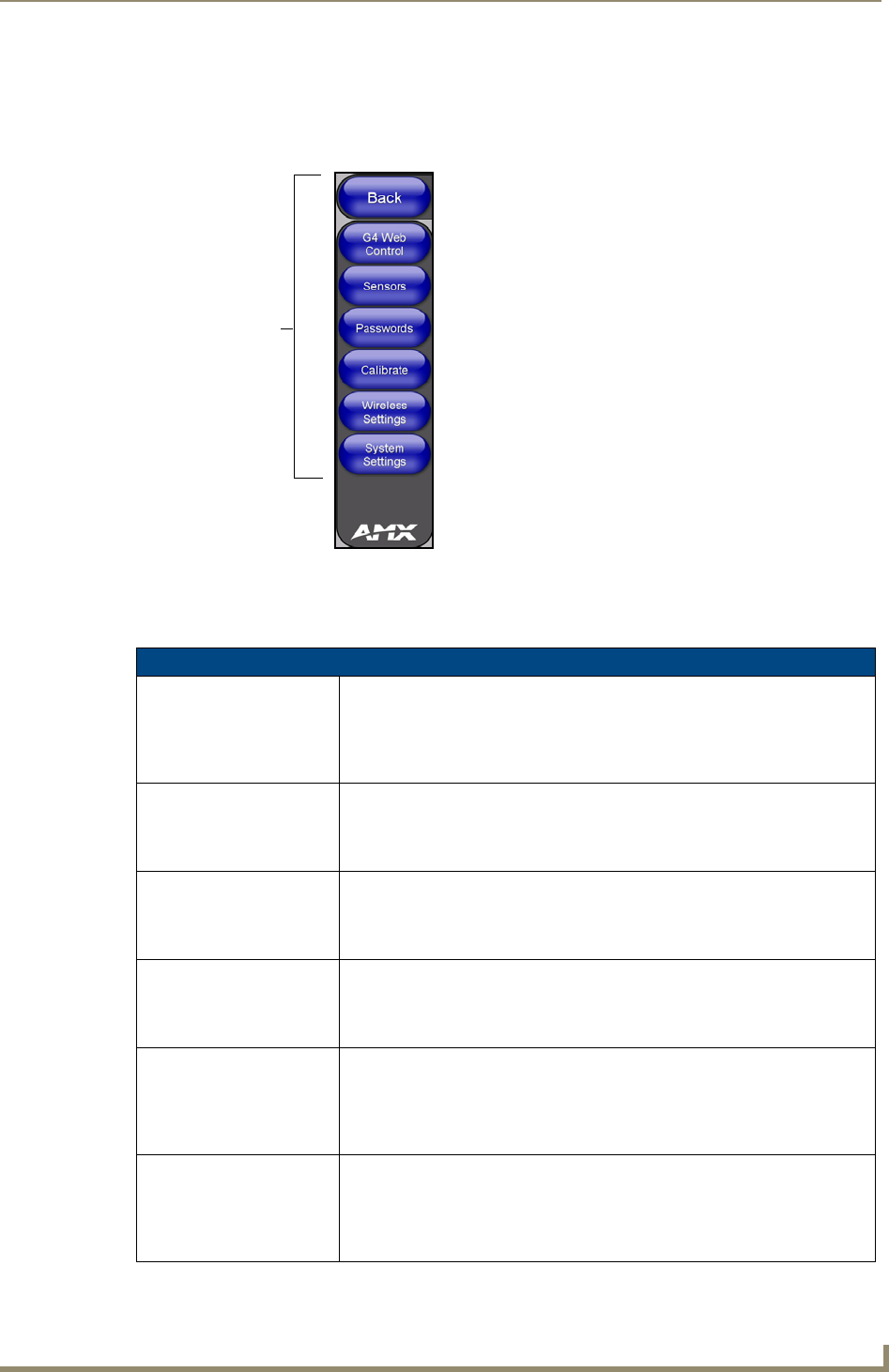

FIG. 116 Protected Setup Navigation Buttons
Protected Setup Navigation Button Elements
G4 Web Control: Press the G4 Web Control button to access the G4 Web Control page where
you can enable or disable display and control of your panel (via the web) by a
PC running a VNC client.
• Refer to the Using G4 Web Control to Interact with a G4 Panel section on
page 116 for more detailed information.
Sensors: Press the Sensors button to access the Sensors Setup page where you can
modify/monitor both the light and motion sensor settings.
• Refer to the Sensor Setup Page section on page 158 for more detailed
information.
Passwords: Press the Passwords button to access the Passwords Setup page where you
can specify up to five security passwords. Default password is 1988.
• Refer to the Password Setup Page section on page 160 for more detailed
information.
Calibrate: Press the Calibrate button to access the Calibration page where you can use
the displayed set of crosshairs to calibrate a touch panel.
• Refer to the Calibration Page section on page 161 for more detailed
information.
Wireless Settings: Press the Wireless Settings button to access the Wireless Settings page where
you can setup the wireless connection parameters used by the optional
NXA-PCI80211G wireless card.
• Refer to the Wireless Settings Page section on page 162 for more detailed
information.
System Settings: Press the System Settings button to access the System Settings page where
you can alter the communication parameters of both the NetLinx
Master and Modero panel.
• Refer to the System Settings Page section on page 166 for more detailed
information.
Modero Protected
Setup Navigation
Buttons
