Installation Procedures: 17" Panels
81
VG-Series Modero Touch Panels
7. Carefully lay the separated LCD (from the main unit) onto a soft cloth resting on a level surface to
prevent scratching of the LCD.
8. Insert the back box into the cutout to check for fit. Make any adjustments to the dimension of the
cutout to accommodate the back box.
9. Cutout the notched beam (FIG. 59) using a height of 13.554" (34.43 cm) and a depth using the
following guideline. This notched beam is located on the side of the NXD unit furthest away from
the connectors.
Calculate the distance from the edge of the mounting ridge (FIG. 59) to the rear point (on the
box) where the beam touches the back box.
Our example uses 1 3/8" (inches) (on the deepest point of the rear back box).
Calculate the thickness of the drywall/sheetrock. Our example uses 5/8" (inches).
The depth of the notch: 1 3/8" minus 5/8" = 6/8" (inches). This value reflects the cutout depth
necessary for the mounting ridge on the back box to be flush against the surface.
10. Thread the incoming RJ-45, Ethernet, and any other audio/video wiring (from their terminal
locations) through the cutout opening. Refer to the Wiring Guidelines for the 1700VG
Panels section on page 87 for pinout descriptions. Leave enough slack in the wiring to
accommodate any re-positioning of the panel.

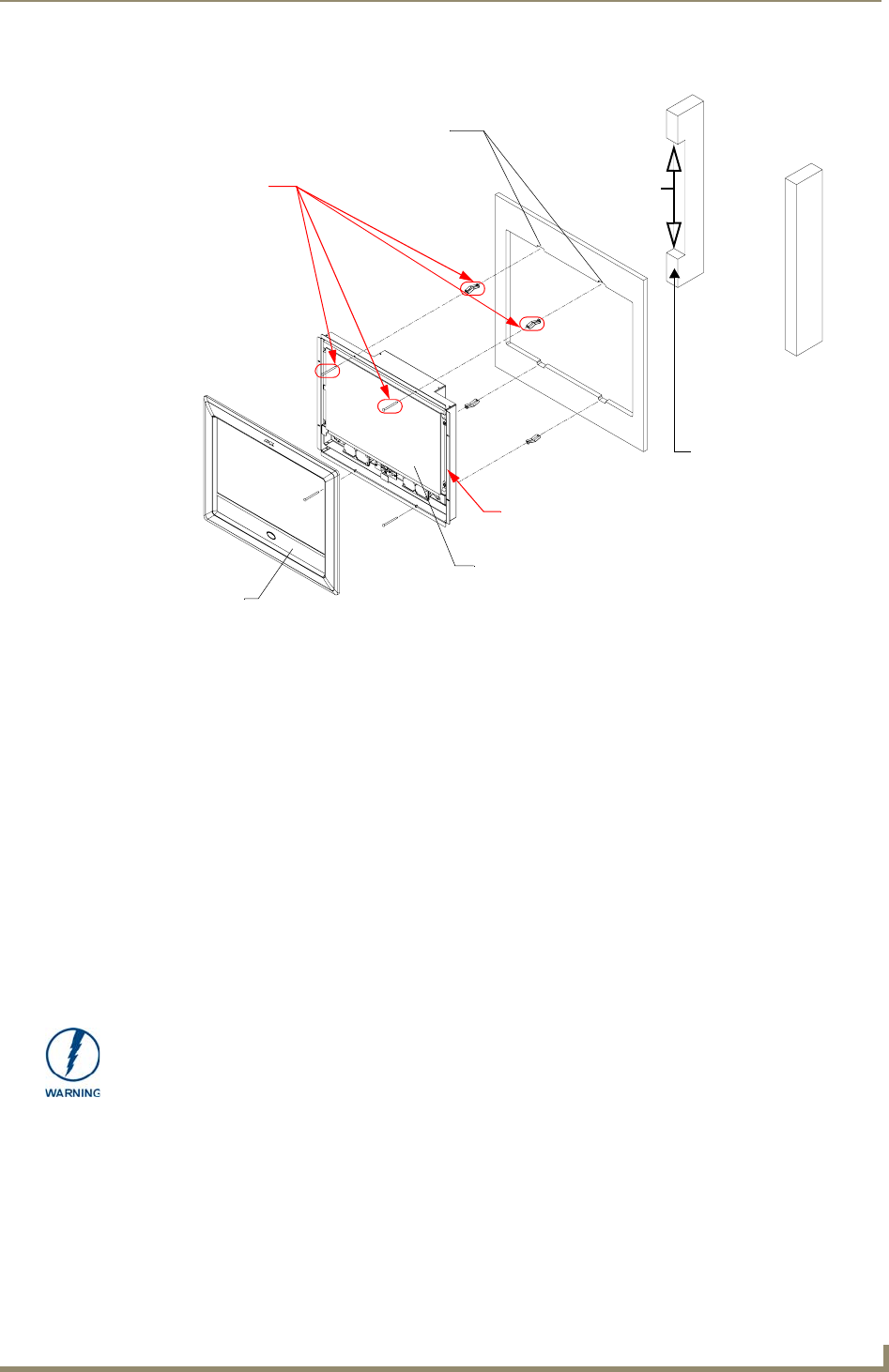

FIG. 60 Wall Mount panel (NXD) installation using expansion clips
B - Main NXD unit consists of
Install the four
drywall clip
sets (included) into
the LCD panel and back box housing
Four notches are
required if the
unit is installed in
drywall using the
four provided
drywall expansion
A - Faceplate
(bezel)
clips
Notching of one or more
stud beams may be
required if the unit is not
framed into the wall.
13.554"
(34.43 cm)
Mounting
Tab
these holes
The determining factor in the depth of the cut into the beam is the thickness of the
drywall. The MOUNTING TAB MUST BE FLUSH against the drywall and therefore,
the depth of the notch depends on that thickness.
