VG-Series Modero Touch Panels
Sensor Setup Page
The Sensor Setup page (FIG. 122) allows you to adjust the Light and Motion Sensor parameters on a
Modero touch panel.
The elements of the Sensor Setup page are described in the table below:

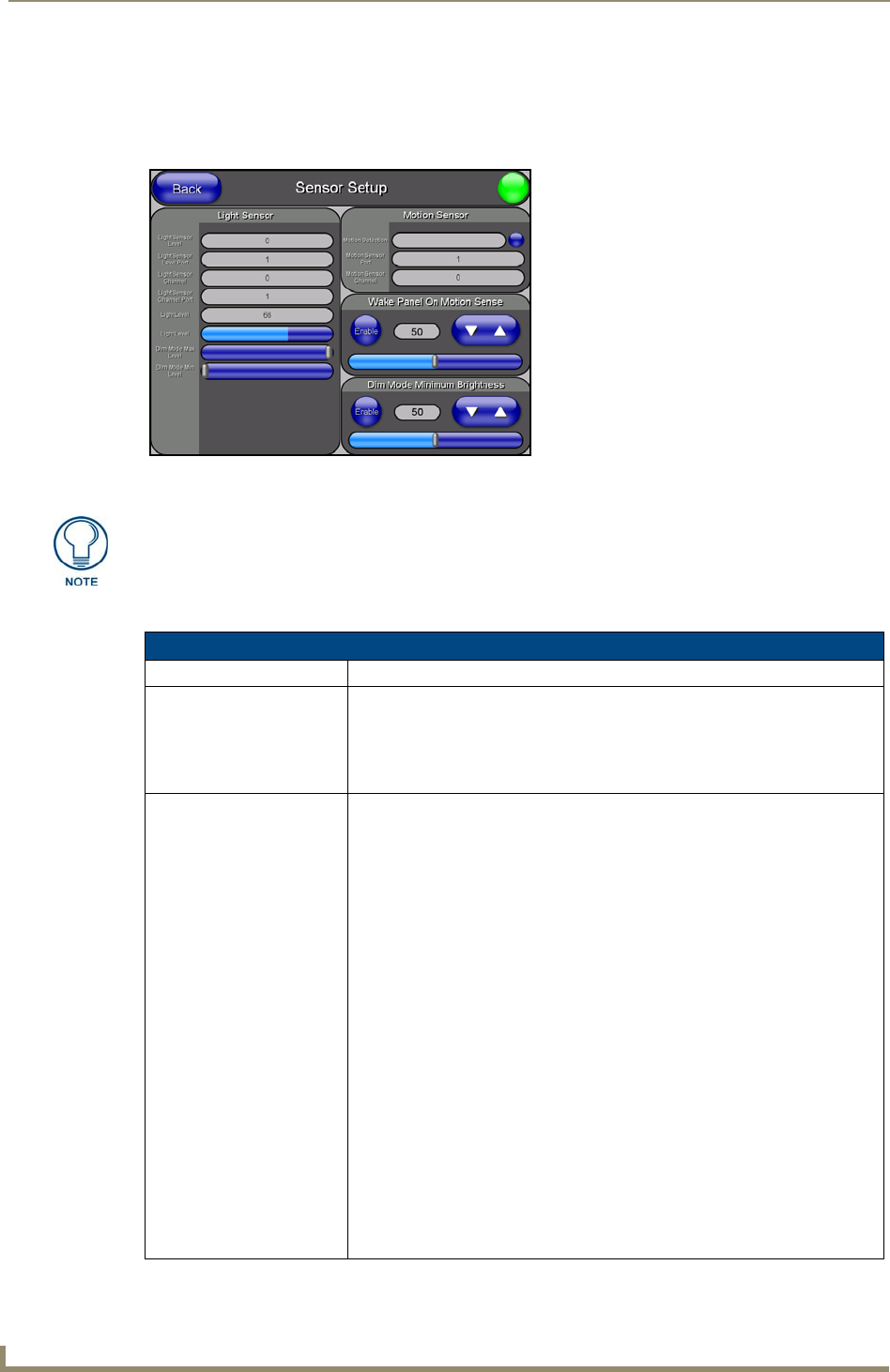

FIG. 122 Sensor Setup page
A light level value between the Minimum and Maximum DIM Mode values delivers an
average light level. The DIM mode Min Level can never exceed the DIM Mode Max
Level.
Sensor Setup Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
• A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Light Sensor: Allows you to monitor and alter the sensitivity of the Modero panel light sensor:
• The Light Sensor Level field indicates the level used to report the light
sensor level back to the NetLinx Master (set in TPD4) (read-only).
• The Light Sensor Level Port field indicates the port used to report the light
sensor level back to the NetLinx Master (set in TPD4) (read-only).
• The Light Sensor Channel field indicates the level used to report the sensor
channel back to the NetLinx Master (set in TPD4). It is On when you are
below the Maximum dim mode level (read-only).
• The Light Sensor Channel Port field indicates the port used to report the
sensor channel back to the NetLinx Master (set in TPD4) (read-only).
• The Light Level field provides a numeric value representing the current value
of the light level detected by the on-board photo-sensor.
• The Light Level bargraph displays a horizontal bargraph indicating the current
value of the light level detected by the on-board photo-sensor. This bargraph
provides a visual representation of the numeric value displayed within the
Light Level field.
• Use the Dim Mode Max Level bargraph to alter the Maximum DIM level
value used to activate the DIM Mode Brightness Level (range = 0 - 100).
• Use the Dim Mode Min Level bargraph to alter the Minimum DIM level value
used to activate the DIM Mode Brightness Level (range = 0 - 100).
- The position of this bargraph can never exceed that of the Dim Mode
Max Level.
