Scanning With External Instruments
If your application doesn’t require the built-in measurement capabilities
of the 34970A, you can order it without the internal
DMM. In this
configuration, you can use the system for signal routing or control
applications. If you install a multiplexer plug-in module, you can use the
system for scanning with an external instrument. You can connect an
external instrument (such as a
DMM) to the multiplexer COM terminal.

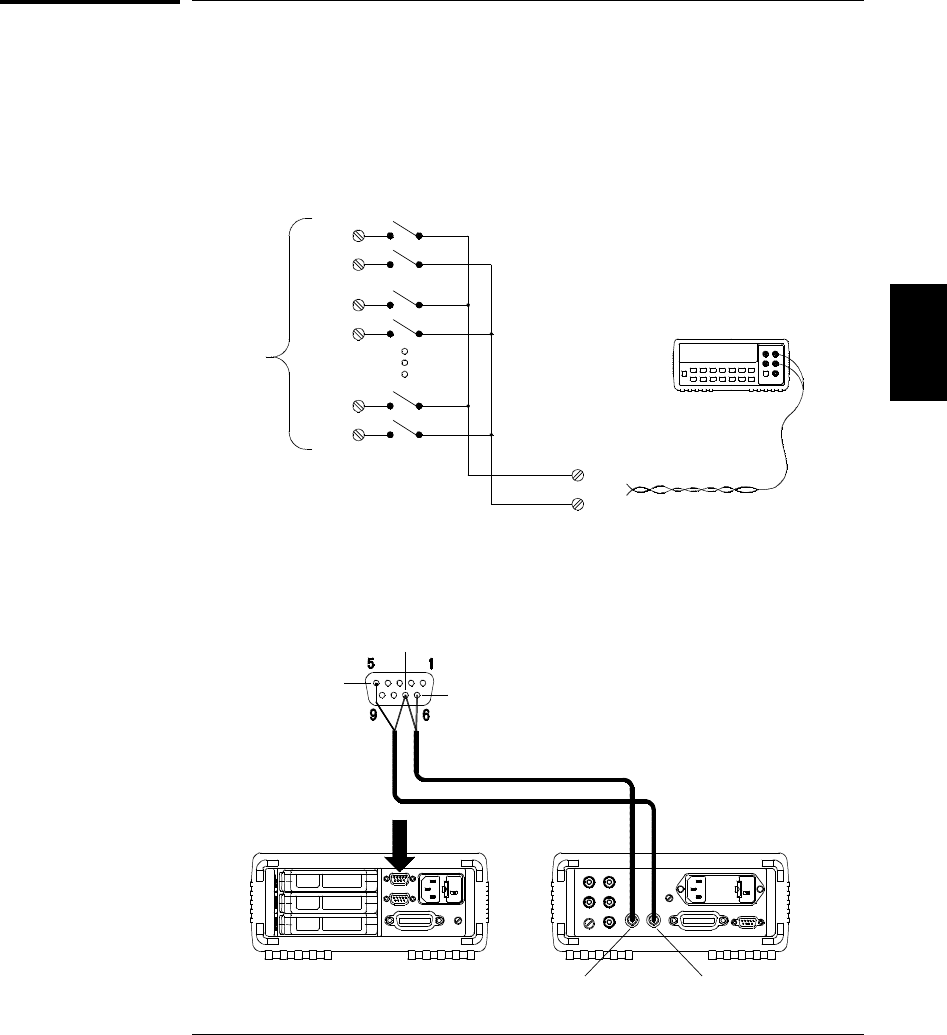

To control scanning with an external instrument, two control lines are
provided. When the 34970A and the external instrument are properly
configured, you can synchronize a scan sequence between the two.
H
Input
Channels
L
H
L
External DMM
H
L
H
L
Common Terminals
(COM)
VM Complete OUT Ext Trig IN
GND
Ext Trig IN
Channel Closed OUT
External DMM
34970A
