inter

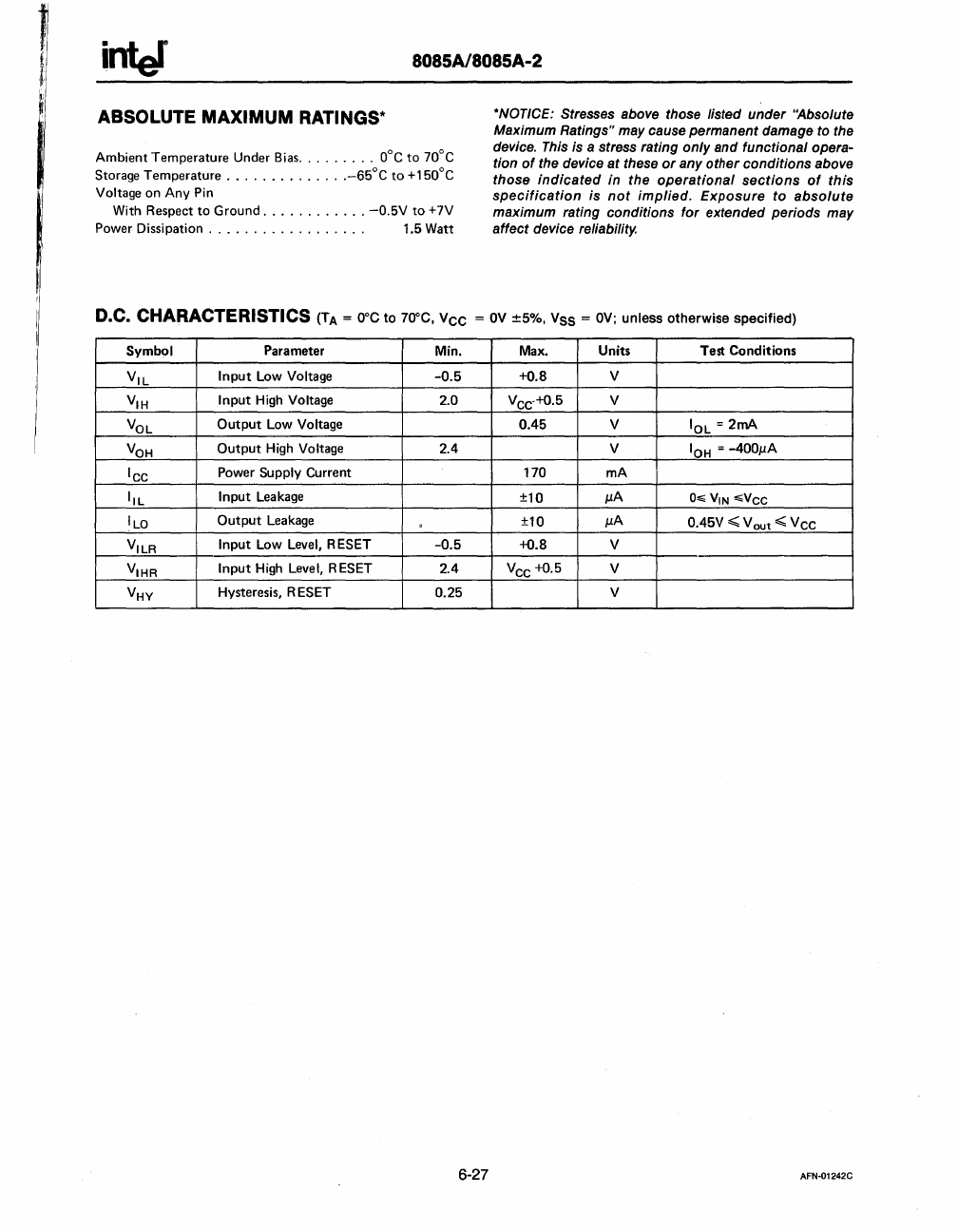

8085A/8085A-2
ABSOLUTE MAXIMUM RATINGS*
Ambient Temperature Under
Bias
.........
O°C
to
70°C
Storage Temperature
..............
_65°C
to
+150°C
Voltage on
Any
Pin
With Respect
to
Ground
............
-O.5V
to
+7V
Power Dissipation. . . . . . . . . . . . . . . . . . 1.5 Watt
*NOTICE: Stresses above those listed under "Absolute
Maximum Ratings" may cause permanent damage to the
device. This is
a stress rating only and functional opera-
tion
of
the device
at
these
or
any other conditions above
those
indicated
in the
operational
sections
of
this
specification
is
not
implied.
Exposure to
absolute
maximum rating conditions for extended periods may
affect device reliability.
D.C. CHARACTERISTICS (TA =
O°C
to 70°C,
Vee
=
ov
±5%,
Vss
=
OV;
unless otherwise specified)
Symbol Parameter Min. Max. Units
Test Conditions
V
IL
Input
Low Voltage
-0.5
+0.8
V
V
IH
Input
High Voltage
2.0 V
ee
·+0.5 V
VOL
Output
Low Voltage
0.45 V
IOL =
2mA
V
OH
Output
High Voltage
2.4 V
IOH
= -400JLA
lee
Power Supply Current 170
mA
IlL
Input
Leakage
±10
JLA
0""
VIN
""Vee
ILO
Output
Leakage
±10
JLA
0.45V
~
V
out
~
Vee
V
ILR
Input
Low Level, RESET
-0.5
+0.8 V
V
IHR
Input
High Level, RESET
2.4
Vee +0.5
V
V
HY
Hysteresis, RESET
0.25
V
6-27
AFN-01242C
