FC-210/310 UPDATING THE FIRMWARE 5 - 2 February 2002 © TOSHIBA TEC
5.1 Installing Software for Firmware Update
5.1.1 Outline
The procedure to update the software of the SYS, IMC, LGC and SCM board using the PPP (Point-to-
Point Protocol) and FTP (File Tranfer Protocol) is described in this section.
* This procedure is described based on the Windows 95/98. Information and necessary files
corresponding to other OSs are supplied by the other service information.
5.1.2 Requirements
The following environment is necessary to update the firmware.
Software Requirements for PC
– Microsoft Windows95/98
– Virtual modem
– FTP Server / tools (ex. War FTP Daemon)
Use a serial cable for the DTE-DTE connection to connect the PC and SYS board.
(Update cannot be performed with the cable for the DCE-DCE connection)
See below for the connection lines.
DTE-DTE connection
1 CD CD 1
2 RXD RXD 2
3 TXD TXD 3
4 DTR DTR 4
5 GND GND 5
6 DSR DSR 6
7 RTS RTS 7
8 CTS CTS 8
9 CI CI 9
RS232C DTE-DTE Cross Cable Lines (D-SUB 9pin)
Pin No. Signal Meaning I/O
1 CD Reception carrier detection I
2 RXD Reception data I
3 TXD Transmission data O
4 DTR Data terminal ready O
5 GND Signal ground
6 DSR Data setting ready I
7 RTS Transmission request O
8 CTS Transmission enabled I
9 CI Called indication I

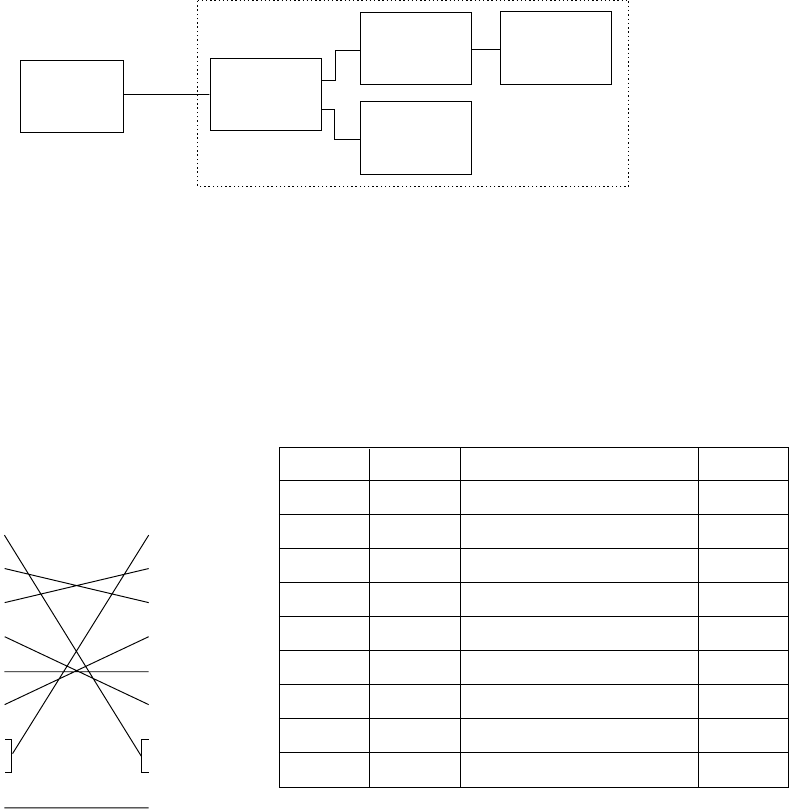

PC SYS board
Serial
cable
SCM board
IMC boardLGC board
Copier
