February 2002 © TOSHIBA TEC 2 - 39 FC-210/310 ADJUSTMENT
2.10 Adjustment of the Paper Feeding System
2.10.1 Cassette sidewise deviation

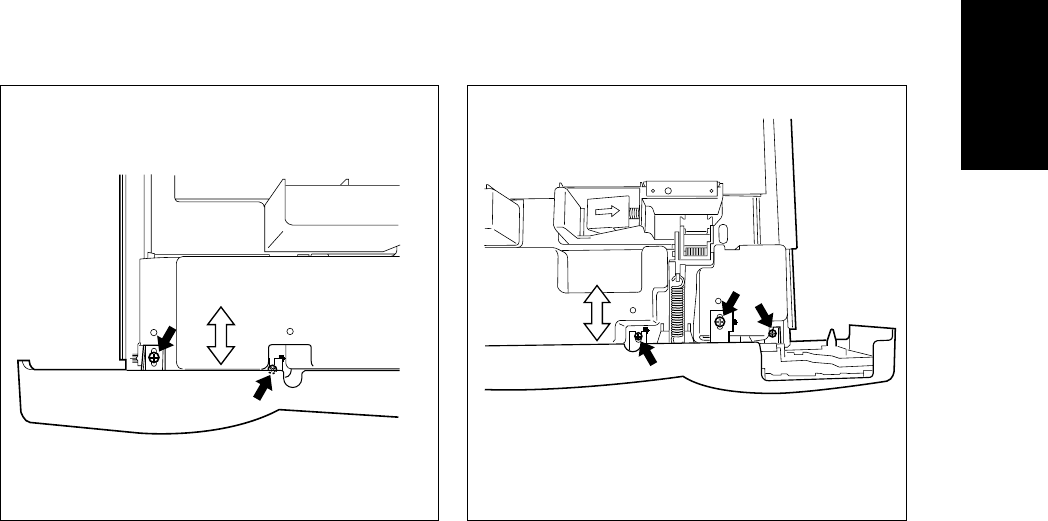

(1) Loosen 5 screws for fixing the cassette front cover, and the sidewise deviation can be adjusted toward
the front or the rear by a maximum of 3 mm.
(2) If the image is shifted toward the rear of paper, adjust the cassette front cover toward the front by the
amount of the shift, and fasten the screws.
(3) If the image is shifted toward the front of paper, adjust the cassette front cover toward the rear by the
amount of the shift, and fasten the screws.
Left side Right side
