2-92
Section 2 — Control Panel Descriptions
Wipe Subpanel
The Wipe subpanel (Figure 2-15) is delegated to controlling any
one of the six available wipe pattern generators in the switcher.
Each M/E has a primary wipe generator and may have an
optional secondary wipe pattern generator. The secondary wipe
pattern generator option allows complete independence between
the primary and secondary wipes with no interaction between
them.
Even if the secondary wipe pattern generator option is not
installed, secondary wipes are available, but only the edge
attributes of the secondary wipe are independent. (Edge attributes
include preset size, softness, soft symmetry, border width, border
matte, border opacity and normal/reverse.) Pattern select,
rotation modes, positioner modes, and pattern modifiers are the
same values as those of the primary wipe generator on the same
M/E.
RANDOM
TEXTURE
USER
1
USER
2
USER
3
USER
4
USER
5
USER
6
USER
WIPE
UNDO
LEARN
USER
WIPE
MENU
SYMMETRY
OPACITY
PRESET SIZE
ROTATE
PATTERN MIX
SOFTNESS
WIDTH
ROT
POS
PATT
MIX
ASPCT
BORD
SOFT
NORM REV SPLIT
M/E 1
PRI
POS
NORM
WIPE
ROTATION TYPE
WIPE DIRECTION
PATTERN MODIFIERS
POSITIONER
DELEGATE
M/E 1
SEC
M/E 2
PRI
M/E 2
SEC
M/E 3
PRI
M/E 3
SEC
ROT
SPD
ROT
MAG
POS
AUTO
V
MULTI
H
MULTI
FLIP
FLOP
TP0702-17

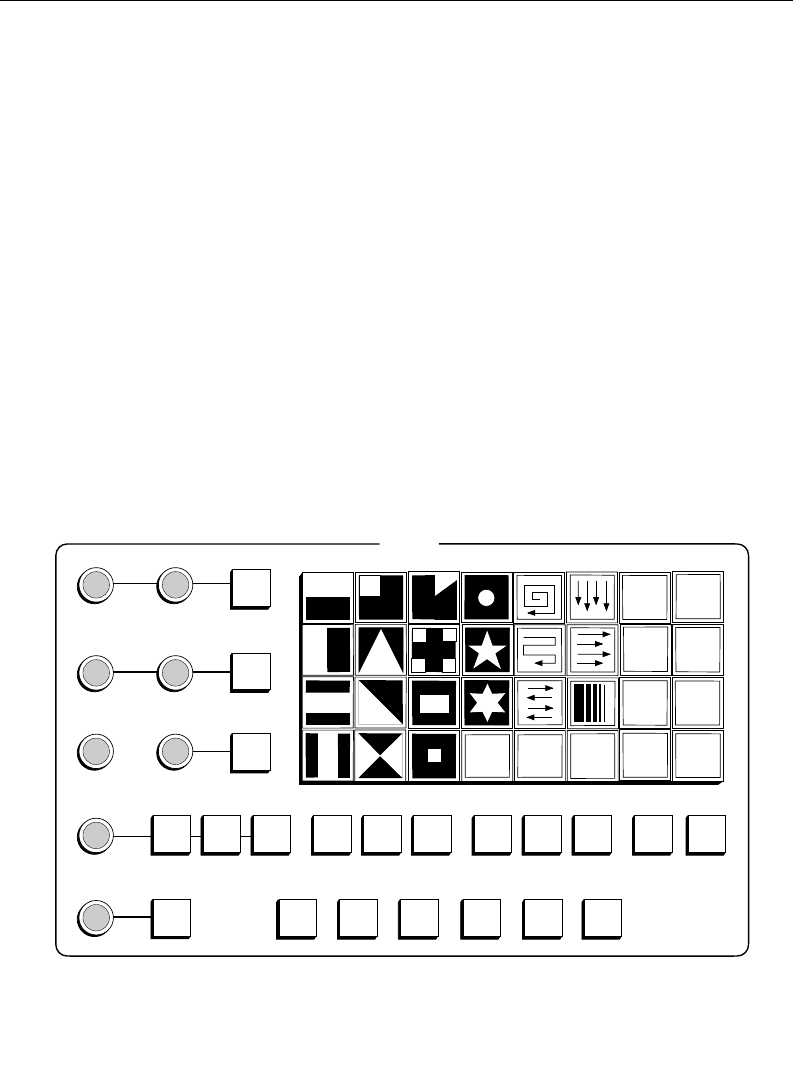

Figure 2-15. Wipe Subpanel (3000-3 shown)
