Default packet settings window 222
Models 2616RC, 3096RC & 3196RC Admin Reference Guide 14 • PPP

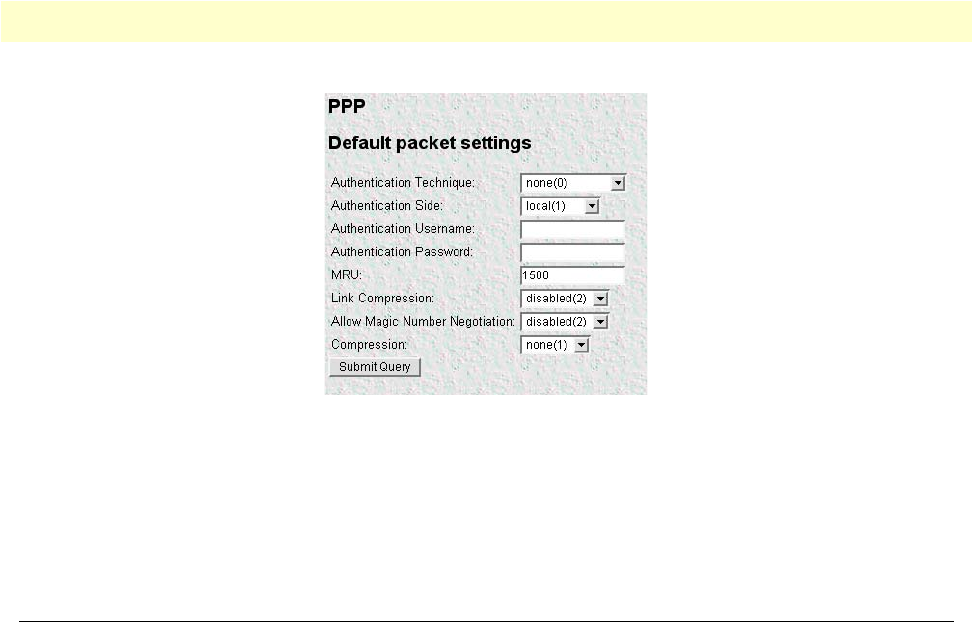

Figure 124. Modify default packet settings window
IP address
Clicking on the IP address link (see figure 122 on page 220) displays the Modify default packet settings window
(see figure 124) displays the PPP link window which gives a status of the current link (see section “PPP link
window” on page 225 for details).
Default packet settings window
The following sections describe the parameters displayed on the Default packet settings window (see figure 123
on page 221).
Modify default settings hyperlink
Clicking on the Modify default… link displays the Modify default packet settings window (see figure 124 on
page 222) where you can modify default PPP settings (see section “Modify default packet settings window” on
page 223 for details).
Authentication Technique (pppDefaultAuthenticationTechnique)
Technique to be used for authenticating:
• none(0)—No authentication will be used (default)
• pap(3)—password authentication protocol will be used
• chap(4)—challenge handshake authentication protocol will be used
• chapORpap(5)—chap will be negotiated first, if that fails, pap will be attempted
Authentication Side (pppDefaultAuthenticationSide)
This is the side of the link which will be authenticating:
• local(1)—local server will be authenticating. Remote needs to log into local server (default)
• remote(2)—remote server will be authentication. Local needs to log into remote server
