System Parameters window 262
Models 2616RC, 3096RC & 3196RC Admin Reference Guide 17 • System
Front Handle Reset (boxHandleResetEnable)
Selects whether unlocking the front handle will cause T-DACS to reset.
• disabled(0)—Unlocking the front handle will not cause the T-DACS to reset
• enabled(1)—Unlocking the front handle will cause the T-DACS to reset
Common Code Revision (boxCommonCodeRevision)
This is the common code base revision number.
SNMP and HTTP Parameters
This portion of the System Parameters window, shown in figure 143 on page 260, provides the following infor-
mation about the SNMP version and the HTTP accessibility.
Version (boxSnmpVersion)
This parameter selects the SNMP version number supported by this unit. Select snmpv1(1) only, SNMP2 is
not currently supported.
Superuser Password (boxSnmpMasterPassword)
This accesses the super user password for complete access and configurability of the T-DAC through SNMP
and HTTP. Up to 64 octets (characters).
User Password (boxSnmpMonitorPassword)
This accesses the user monitoring password for read only access of certain selected information. Not all param-
eters shown using the superuser password are displayed under the user password.

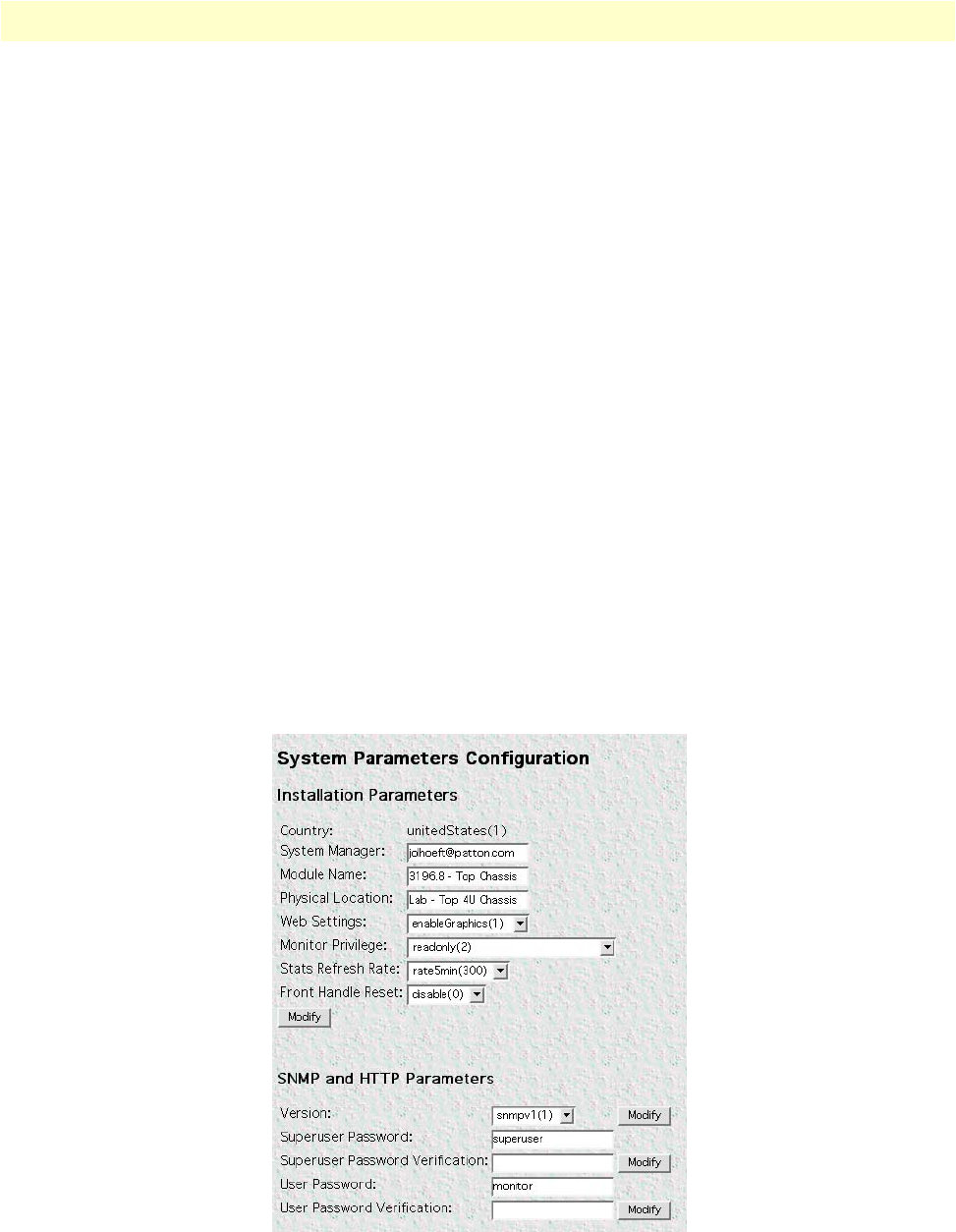

Figure 144. Modify Parameters window (Model 3096RC shown)
