DEFINITY Enterprise Communications Server Release 8.2
Upgrades and Additions for R8r
555-233-115
Issue 1
April 2000
Multicarrier G2 Universal Module to R8r EPN
5-53High Reliability
5

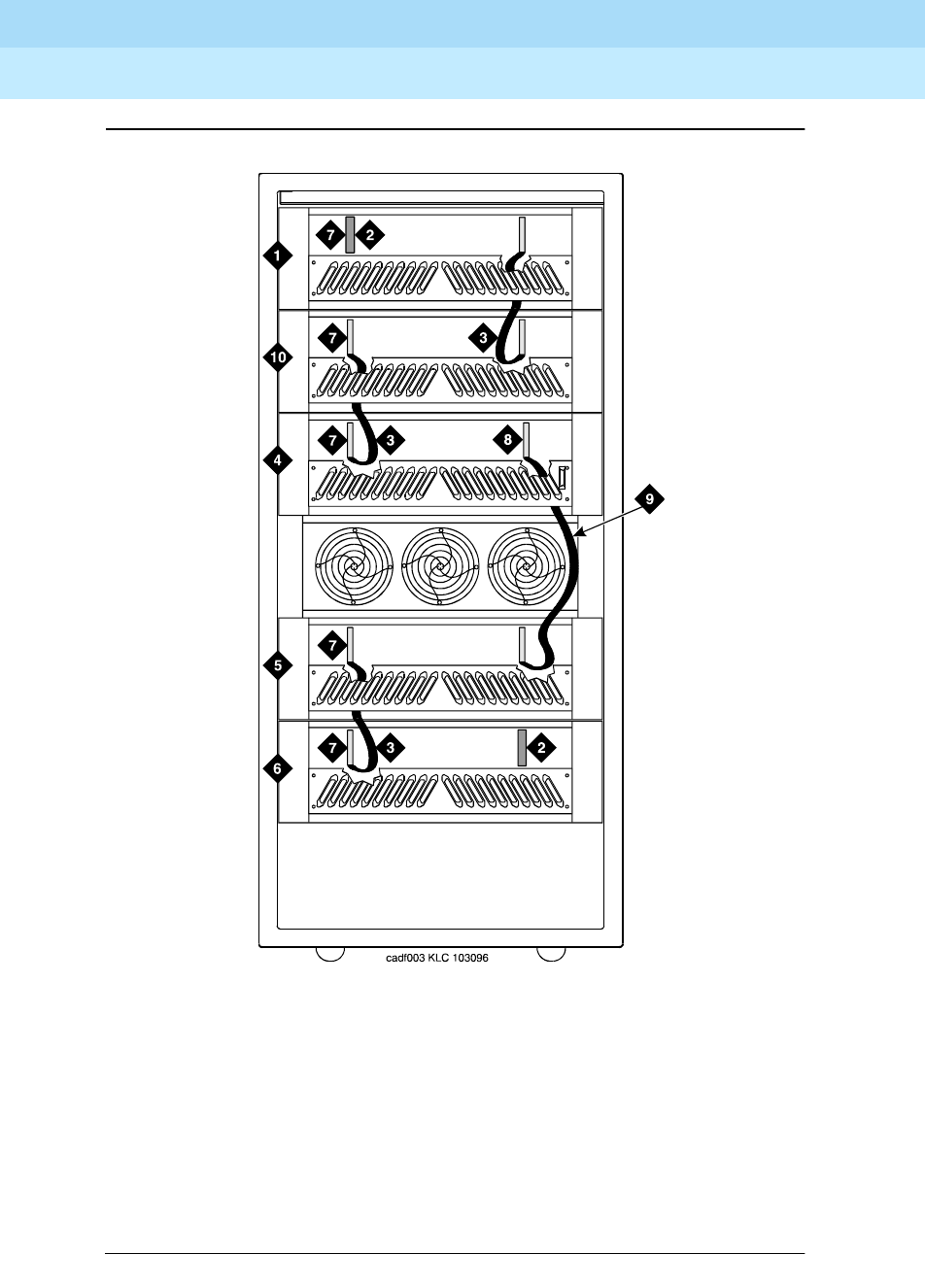

Figure 5-13. TDM/LAN Connections for High Reliability Release 8 EPN
Figure Notes
1. Port Carrier (“C” Position)
2. ZAHF4 TDM/LAN Terminator
3. TDM/LAN Cable (WP91716 L6)
4. Expansion Control Carrier (“A” Position)
5. Port Carrier (“D” Position)
6. Port Carrier (“E” Position)
7. Slot 21
8. Slot 02
9. TDM/LAN Cable (WP91716 L7)
10. Port Carrier (“B” Position)
